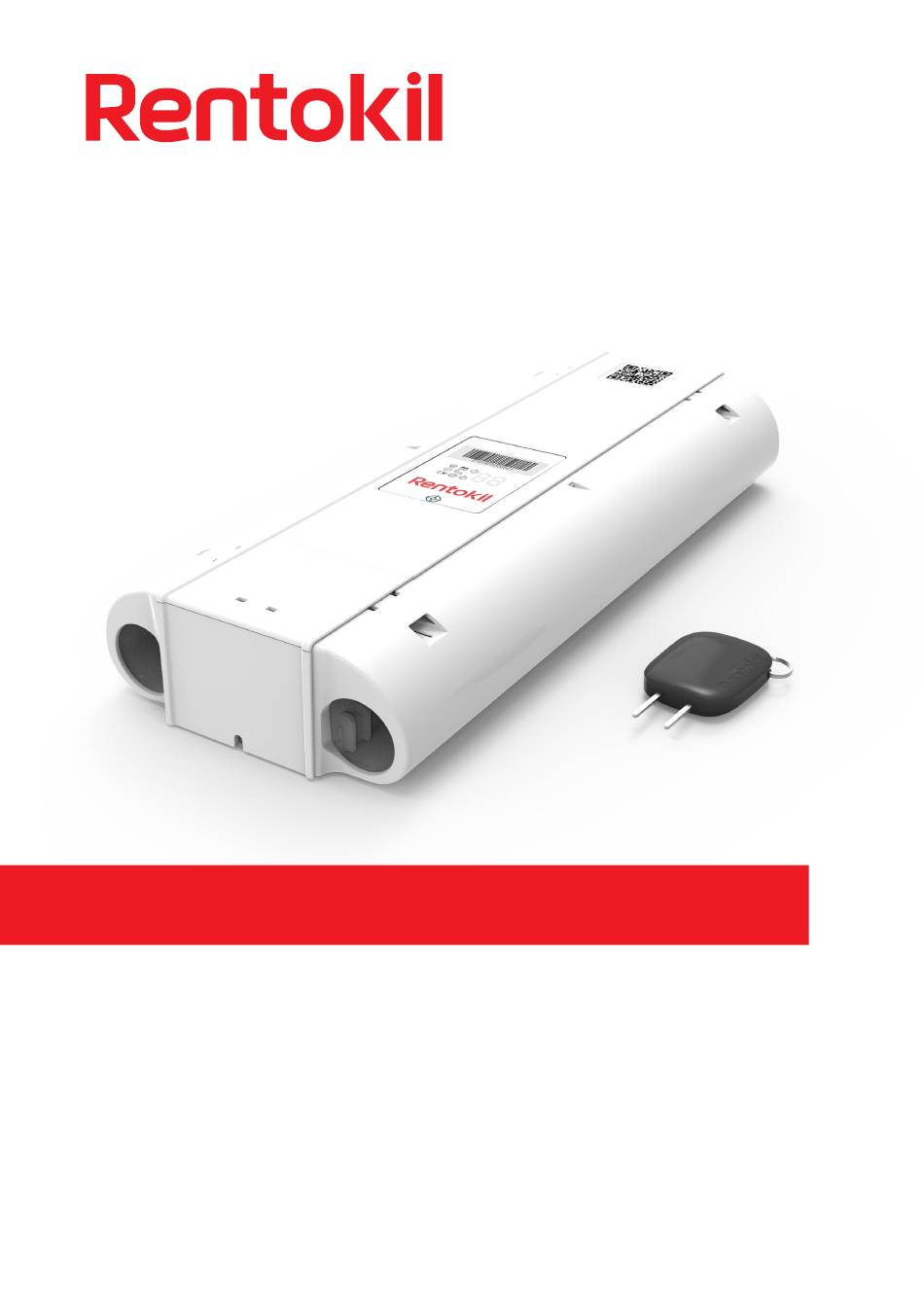

RADAR X
Applicable to: Standard / Connect Variants
This manual is based on the latest information and is provided subject to
alteration. We reserve the right to change the construction and/or configuration
of the product and versions at any time without obligation.
All rights reserved. No part of this document may be reproduced, stored in a database or any other retrieval
system, or published, in any form or way, electronically, mechanically, digitally per photo print or microfilm
or any other way without written permission from the author.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rentokil RADAR X
Summary of Contents for Rentokil RADAR X
- Page 1 RADAR X Applicable to: Standard / Connect Variants This manual is based on the latest information and is provided subject to alteration. We reserve the right to change the construction and/or configuration of the product and versions at any time without obligation.
-
Page 2: Table Of Contents
Product Disposal Environmental Restrictions Product Range Installation Prior to RADAR X Installation Site Installation Fitting the Battery Battery Level Site Survey (Connect Variants Only) Open Catch Tray Setting the Trap Doors Setting the Trigger Mechanism Fitting CO... - Page 3 Contents How to Swap Sensor Pods Remove Battery Open Catch Tray Remove Rodent Sensor Pod Replace Rodent Sensor Pod Close and Lock the Catch Tray Reactivate the Trap Fitting the Lanyard Parts required to Fit the Lanyard Fitting the Lanyard Removing the Lanyard System Information Enter System Information...
-
Page 4: Safety Instruction
Users can perform the maintenance tasks described in this document. Users must not perform any other repairs or maintenance. Each canister can only be used once. RADAR X requires no maintenance other than cleaning and management of the batteries and CO canisters. -
Page 5: Warning Translations
Warning Translations NL: Waarschuwing Deze val mag uitsluitend geïnstalleerd of onderhouden worden door personeel dat over de juiste vaardigheden en training beschikt. U mag deze val niet installeren op locaties waar gevaarlijke concentraties van brandbare of explosieve stoffen aanwezig kunnen zijn in de lucht. Installeer dit product alleen binnen en niet in het directe zonlicht. - Page 6 apenas em interiores, afastado da luz solar direta. Não instale o dispositivo de armadilha em celeiros, estábulos ou locais semelhantes. As crianças não devem brincar com este dispositivo de armadilha. Este dispositivo deve ser mantido fora do alcance das crianças. FI: Varoitus Tämän laitteen saa asentaa ja huoltaa vai henkilöstö, jolla on siihen tarvittavat taidot ja koulutus.
-
Page 7: Product Description
Product Functions (Connect Variants Only) RADAR X signals the capture of a mouse the RADAR X will select an alternative if the sending a message to the Connect Control connection to the initial one fails. Panel and then server. A technician will... -
Page 8: Limitation Of Liability & Damages
Rentokil reserve the right to alter the specification or design without prior notice. Rentokil cannot accept any liability for any loss or damage arising from the use of any information contained within this manual, or from any incorrect use of the product described herein. -
Page 9: Environmental Restrictions
High vibration due to localised machinery / fridge vibration compressors etc could affect the performance of the trapping device and result in false activations. Indoor Use Only RADAR X has been specifically designed for indoor applications only. The product is not suitable for outdoor use. -
Page 10: Product Range
Product Range i. SKU Variants RADAR X Dual Connect Model No. 304840 Serial No: 919 RADAR X Dual Model No. 304839 Serial No: 120 ii. Component Parts for Installation 1. Main Trapping Device 4. RI Service Key 7. Sensor Units x2 2. -
Page 11: Installation
2. Site Installation RADAR X trapping devices should be sited along wall / floor junctions, behind machinery and equipment, i.e. anywhere where bait boxes and mouse monitor units (MMU’s) would normally be placed. Trapping devices should be secured with a lanyard if possible to prevent the trapping device being accidentally moved, knocked or removed by unauthorised persons. -
Page 12: Fitting The Battery
3. Fitting the Battery Unlock the battery door Connect the battery Remove the door contacts Fold the cables between battery Insert the battery and connector Click Replace & lock the door... -
Page 13: Battery Level
4. Battery Level Battery capacity % displayed for 2 seconds with Battery Level (Icon ) solid. Eg: Battery is at 99% 5. Site Survey (Connect Variants Only) To assess network signal strength and the number of control panels required for a site, the Range Check Mode can be used. -
Page 14: Setting The Trap Doors
7. Setting the Trap Doors Click Click 8. Setting the Trigger Mechanism Click 9. Fitting CO Canister Ensure a new and undamaged CO Canister is fitted Click... -
Page 15: Arming The Module
10. Refitting the Catch Tray Click Click 11. Arming the Module If unit is deployable the Device Status (Icon ) will go solid and the unit is capable of trapping after 30 seconds. And can now be left. Alternatively, use the magnetic key to cycle through the “Status Check”... -
Page 16: Status Check
Servicing & Maintenance 1. Status Check Use the RI Key Magnet to activate the Interface Active Magnet Zone Tap 1 First tap using the RI Magnet Key, will display the units health. If not OK the Service Mode (Icon ) will flash and an error code will appear on the display indicating a service is required. -
Page 17: Enter Service Mode
Tap 2 Second tap using the RI Magnet Key, will display Battery Level (Icon ) along with the percentage of battery level. Eg: 30% battery remaining Tap 3 Third tap using the RI Magnet Key, will display Catch Duration (Icon ) along with the left Arrow Status icon and number of days since the left hand side triggered. -
Page 18: Within Service Mode
Sanitising wipes should then be used to clean the internal area of the box, ensuring all detritus within the Radar X is fully cleaned and removed. The external areas can be cleaned using a damp cloth. All... -
Page 19: Removing A Used Co Canister
6. Removing a used CO Canister Note: CO Canister MUST be replaced after each trigger event. Click Once the trigger pin is armed, the once flashing will become and go solid on. NOTE: You will not be able to arm the trigger pin until you reset the gate in “5. -
Page 20: Reactivate The Trap
8. Closing the Catch Tray Click Click 9. Reactivate the Trap If all is OK the will be solid. The Device Status (Icon service is now complete. Note: The unit will allow a SELF deploy as long as one side is set correctly. i.e. it is possible to allow a unit to SELF deploy even if one side is not functional. -
Page 21: How To Swap Trays
How to Swap Trays 1. Open Catch Tray 2. Remove and Replace Catch Tray 3. Close and Lock the Catch Tray Click Click... - Page 22 How to Swap Sensor Pods 1. Remove Battery 2. Open Catch Tray 3. Remove Rodent Sensor Pod...
