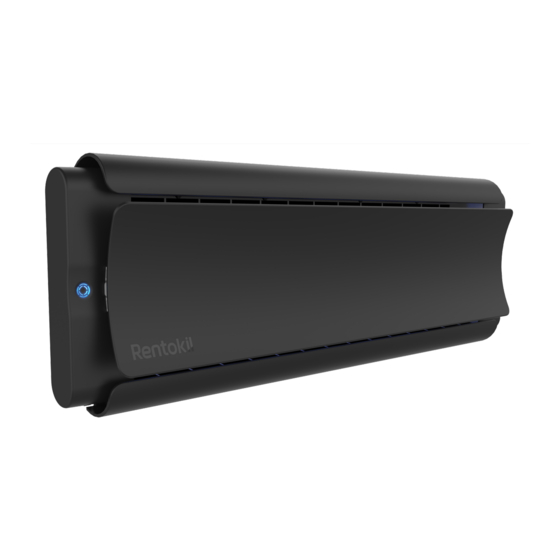

Lumnia Slim US - Instruction Manual
This manual is based on the latest information and is provided subject to
alteration. We reserve the right to change the construction and/or configuration
of the product and versions at any time without obligation.
All rights reserved. No part of this document may be reproduced, stored in a database or any other retrieval
system, or published, in any form or way, electronically, mechanically, digitally per photo print or microfilm
or any other way without written permission from the author.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lumnia Slim US and is the answer not in the manual?

Questions and answers

Related Manuals for Rentokil Lumnia Slim US

Summary of Contents for Rentokil Lumnia Slim US

  • Page 1 Lumnia Slim US - Instruction Manual This manual is based on the latest information and is provided subject to alteration. We reserve the right to change the construction and/or configuration of the product and versions at any time without obligation.
  • Page 2 1. Safety IMPORTANT SAFETY INSTRUCTIONS WARNING - When using electric appliances, basic precautions should always be followed, including the following: a. Read all the instructions before using the appliance. b. To reduce the risk of injury, close supervision is necessary when an appliance is used near children.
  • Page 3 1. Safety Warning SAVE THESE INSTRUCTIONS The lamps in this unit produce ultraviolet (UV) light, which can cause skin or eye damage if viewed directly for a long period. Only fit the correct type of UV lamps in the unit. The unit shall be installed and serviced by individuals with appropriate qualifications and/or experience in accordance with national regulations in the country of operation and...

  • Page 4: Equipment For Installation

    2. Introduction The Lumnia Slim unit uses one ultra-violet LED driven lamp that attracts flying insects, which are then captured on a replaceable glue board. The Slim product is a glue board monitoring device. While unpacking, check for any signs of shipment damage and, if found, notify both transporter and supplier in writing as soon as possible with full details of the damage that has occurred.
  • Page 5 4. Installation Instructions: Connecting the Power Source DANGER: You must NOT connect the unit into a lighting circuit. WARNING: You must connect the power cable to a standard power outlet. DANGER: SERVICING OF DOUBLE-INSULATED APPLIANCES In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance.

  • Page 6: Positioning The Unit

    5. Positioning the Unit Position the unit on a suitable wall at a minimum height of 6’1” (1.86 M) to the bottom of the unit. Figure 1: Figure 1 illustrates the suggested mounting height. A ladder should not be required for servicing at this height.

  • Page 7: Positioning Guide

    For safety reasons, the unit contains a micro switch that disables the UV lamp if the front cover is removed. Figure 3 indicates the size and space considerations for mounting the product above furniture. 2.8” (71.7mm) 21.8” (553 mm) Figure 3: DO NOT position the unit directly over areas where food is prepared, or where uncovered food is stored.

  • Page 8: Installation Preparation

    7. Installation Preparation Ø15/64” (6mm) 6”1’ (1.86 M) 8. Fit & Removal of the Front Cover Click Fit: Line up the front cover so that both the left and right hinge plates sit to the right of the clasps on the unit. Slide cover to the left to fit into place. Remove: Lift the tab located on the left hinge plate and slide the cover to the right to remove.
  • Page 9 9. Removing and Replacing the UV - LED Lamp For lamp identification refer to reference number on Lamp. Only Lamps specified in Section 14 - Accessories and Spares to be used with this product. Do not touch LED when servicing, maintaining or cleaning the lamps.
  • Page 10 10. Mounting Lumnia NOTE: Remove lamps before screwing SECURE WITH ALL 4 SCREWS Tighten 11. Preparing the Glue Board Fold Flex Fold Flex Fold Flex Fold Flex Fold Flex Fold Flex Remove Liner Remove Liner Remove Liner Remove Liner Remove Liner Remove Liner...
  • Page 11 12. Installing & Removing the Glue Board Installing glue board Removing glue Pull down bottom board cover Installed NOTE: Front cover can be either fitted or removed for servicing the glueboard. See Section 8 for details. 13. Adjusting the Light Output Figure 4 The front cover can be manually Figure 5...

  • Page 12: Accessories And Spares

    Rentokil reserve the right to alter the specification or design without prior notice. Rentokil cannot accept any liability for any loss or damage arising from the use of any information contained within this manual, or from any incorrect use of the product described herein.

  • Page 13: Troubleshooting

    17..Troubleshooting See Section 5 for reference to illuminated icon. Problem Solution Icon is blue / lamp not illuminated. Check Lamp is fully inserted into Lamp connector on the left hand side. Icon is blue / lamp not illuminated. Check for LED lamp faults or damaged LED. Replace LED lamp.
  • Page 14 NOTES...
  • Page 15 NOTES...
  • Page 16 Rentokil reserve the right to alter the specification or design without prior notice. Rentokil cannot accept any liability for any loss or damage arising from the use of any information contained within this manual, or from any incorrect use of the product described herein.

This manual is also suitable for:
