H 328 Ecl 300/C66; Measurements; Connections - Danfoss Kompakt H28 Instructions Manual

Instructions

6.2 H 328 ECL 300/C66

1 Plate heat exchanger
4 Differential pressure controller AVP-F
8 Circulation pump, HE (P1)
24 Fitting piece for heat meter
25 Electronic controller
29 Actuator AMV (10) (M1)
30 2-way valve VM2 /VS2
31 Actuator AMV /10/150 (M2)
32 2-way valve VS2 / VM2
Please note:
Your substation may look different than the substation shown, as
variants with other components may be supplied. The control func-
tion, however, is basically as stated in this instruction manual.
Instructions for the fitted components will be supplied together with
the substation.

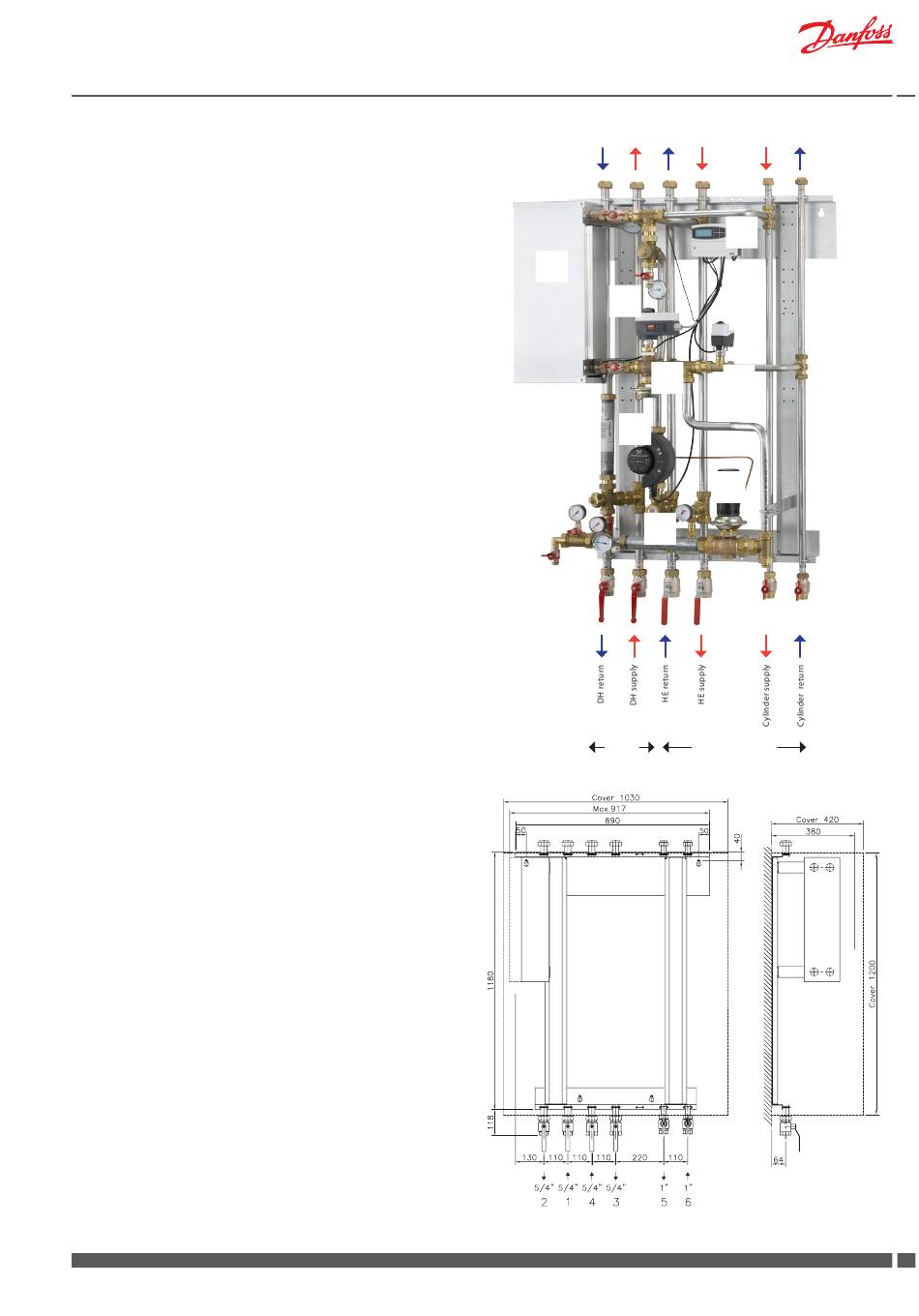

6.2.1 Measurements

Dimensions without cover
H1350 x Wmax. 917 x D380 mm

6.2.2 Connections

Order:
1 District heating (DH) supply
2 District heating (DH) return
3 Heating (HE) supply
4 Heating (HE) return
5 Cylinder supply
6 Cylinder return
Connection sizes (example):
DH: G1¼ (ET)
HE: G1¼ (IT)
Cylinder: G1" (ET)
Please note:
The connection sizes are adapted to the pipe dim. as follows:
Pipe dim. 28 mm: 1¼ connection
Pipe dim. 35 mm: 1½" connection
Pipe dim. 42 mm: 2" connection
Danfoss District Energy
Kompakt H 28/35/42
VI.GP.B1.02
1
29
30
8
24
24
Primary Secundary
25
31
32
4
DKDHR
7 7
