Carrier UVCAPXXC2015 Installation & Operation Manual

UVCAPXXC2015

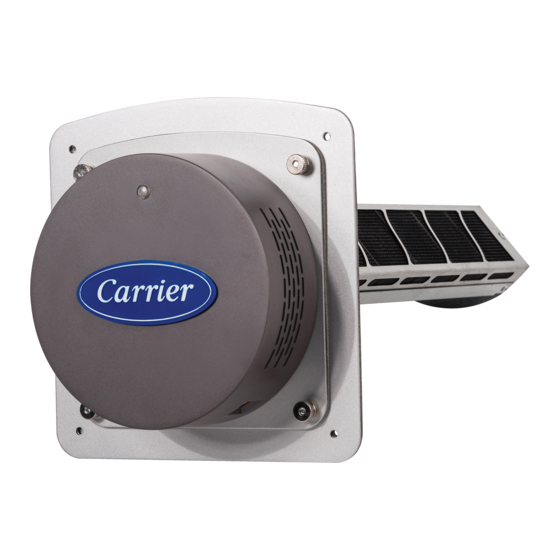

Carbon Air Purifier with UV
NOTE: Read the entire instruction manual before starting the
installation.

Table of Contents

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Included in the Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Application Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Airflow Orientation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
24VAC Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Carbon Core Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Lamp Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Maintenance / UV Lamp Indicator . . . . . . . . . . . . . . . . . . . . . . . . 4
Replacement Parts / Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warranty Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation of Remote Accessory Lamp with UVCAP . . . . . . . . . . . 5
Remote Accessory Lamp Installation (with Main Unit) . . . . . . . . 5
W-coil / Above A-coil (Remote Lamp) . . . . . . . . . . . . . . . . . . . . . 5
A-coil Delta Plate (Remote Lamp) . . . . . . . . . . . . . . . . . . . . . . . . 5
Through Door or Sidewall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Power Module (Remote Lamp) . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Power Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation & Operation Manual
A221217
ZERO OZONE EMISSIONS -
MEASURED OZONE EMISSIONS
FROM CARBON AIR PURIFIER WITH
UV DURING USE PHASE DOES NOT
EXCEED 0.005 PPM AS TESTED BY
UL 867.
UL.COM/ECV
A221114UVCAP

Safety Considerations

WARNING
!
SHOCK HAZARD
Failure to follow this Warning could cause injury or death.
Electrical wiring of the unit to the HVAC system should be done by a
licensed HVAC technician or electrical installer.
WARNING
!
EYE AND SKIN BURN HAZARD
Failure to follow this Warning could cause personal injury.
This unit contains high energy ultraviolet C-band (UVC) lamps which
can cause serious eye and skin irritation. Never expose unprotected
eyes or skin to the UVC light.
WARNING
!
UV LIGHT HAZARD
Failure to follow this Warning could cause personal injury.
UV light is harmful to skin and eyes, and can cause temporary or
permanent loss of vision. Never look at the lamps while illuminated. To
prevent exposure to ultraviolet light, be sure the ultraviolet system
power is disconnected before servicing any part of the HVAC system or
removing any access panel or the equivalent.
Untrained personnel can perform basic maintenance functions such as
changing lamps. All other operations should be performed by trained
service personnel.
Follow all safety codes. Wear safety glasses, protective clothing, and
work gloves. Have a fire extinguisher available. Read these instructions
thoroughly and follow all warnings and cautions included in literature
and attached to the unit. Consult local building codes and the current
edition of the National Electrical Code (NEC) NFPA 70.
In Canada, refer to the current editions of the Canadian Electrical Code
CSA C22.1.
Recognize safety information. When you see this symbol
and in instructions or manuals, be alert to the potential for personal
injury. Understand the signal words DANGER, WARNING, and
CAUTION. These words are used with the safety-alert symbol.
DANGER identifies the most serious hazards, which will result in severe
personal injury or death. WARNING signifies hazards, which could
result in personal injury or death. CAUTION is used to identify unsafe
practices, which may result in minor personal injury or product and
property damage. NOTE is used to highlight suggestions which will
result in enhanced installation, reliability, or operation.
Before proceeding with installation, inspect thoroughly for shipping
damage. Notify shipper immediately if any damage is found. Check for
proper clearances of moving parts.
The qualified installer or agency must use factory-authorized kits or
accessories when modifying this product. Refer to the individual
instructions packaged with the kits or accessories when installing.
on the unit
