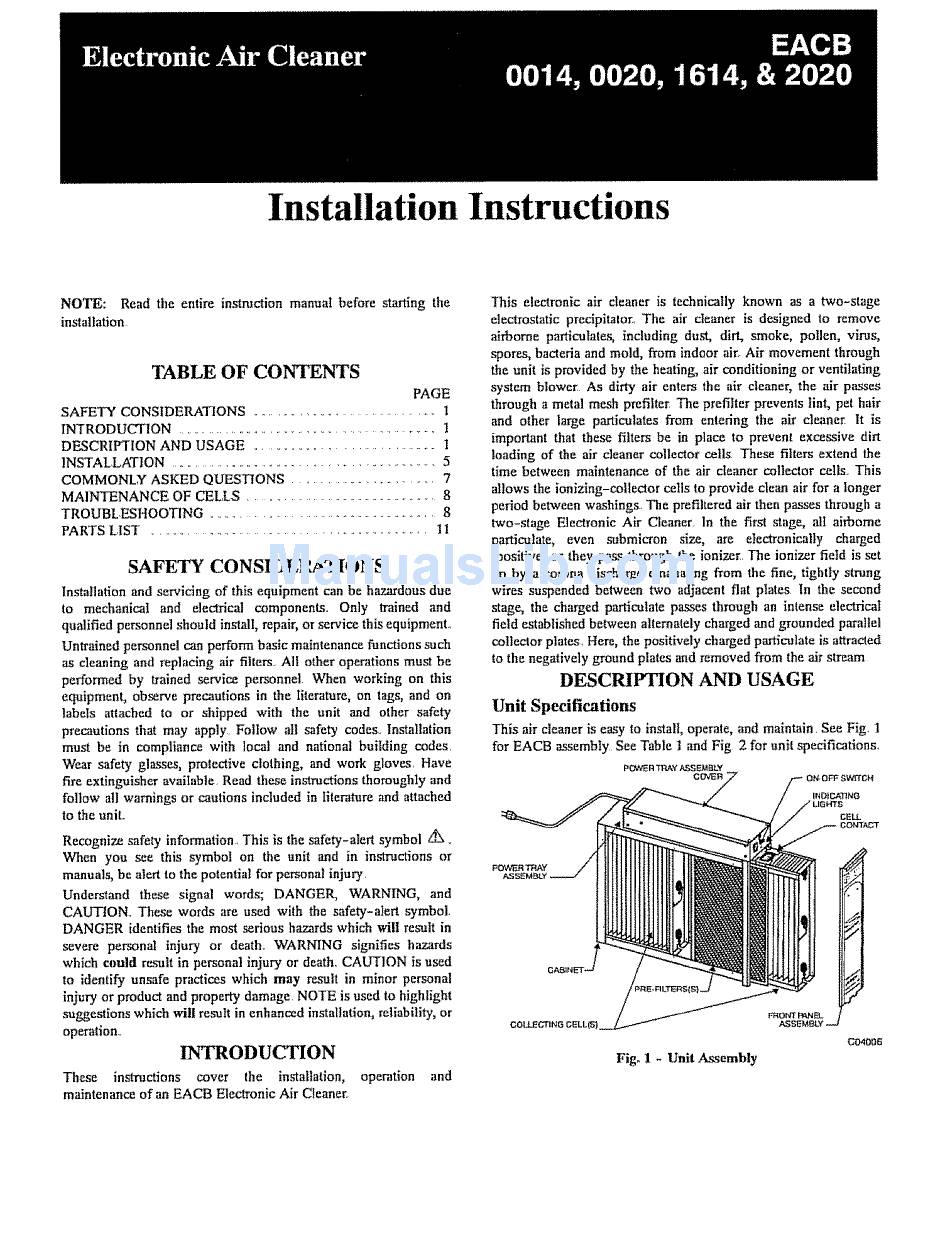

Carrier EACB-0020 Installation Instructions Manual

Installation Instructions
NOTE: Read the entire instruction manual before starting the
installation
TABLE OF CONTENTS
PAGE
SAFETY CONSIDERATIONS .............................. 1
INTRODUCTION ..................................................... I
DESCRIPTION AND USAGE .................................... 1
INSTALLATION
...........................................................
5
COMMONLY ASKED QUESTIONS ......................... 7
MAINTENANCE
OF CELLS
........................................ 8
TROUBLESHOOTING
........................................
8
PARTS LIST .................................................... 11
SAFETY CONSIDERATIONS
Installation and servicing of this equipment can be hazardous due
to mechanical and electrical components. Only trained and
qualified personnel should install, repair, or service this equipment.
Untrained personnel can perform basic maintenance functions such
as cleaning and replacing air filters. All other operations must be
performed by trained service personnel When working on this
equipment, observe precautions in the literature, on tags, and on
labels attached to or shipped with the unit and other safety
precautions that may apply Follow all safety codes. Installation
must be in compliance with local and national building codes
Wear safety glasses, prolecfive clothing, and work gloves. Have
fire extinguisher available Read these instructions thoroughly and
follow all wamlngs or cautions included in literature and attached
to the unit.
Recognize safety information. This is the safety-alert symbol Z_ ..
When you see this symbol on the unit and in instructions or
manuals, be alert to the potential for personal injury
Understand these sigmal words; DANGER, WARNING, and
CAUTION. These words are used with the safety-alert symbol.
DANGER identities the most serious hazards which will res_ait in
severe personal injuu¢ or death. WARNING signifies hazards
which could result in pemonal injury or death.. CAUTION is used
to identify unsafe practices which may result in minor personal
injury or product and property damage NOTE is used to highlight
suggestions which will result in enhanced installation, reliability, or
operation.
INTRODUCTION
These instructions cover the installation, operation and
maintenance of an EACB Electronic Air Cleaner
This electronic air cleaner is technically known as a two-stage
electrostatic precipitator. The air cleaner is designed to remove
airborne particulates, including dust, dirt, smoke, pollen, virus,
spores, bacteria and mold, from indoor air Air movement through
the unit is provided by the heating, air conditioning or ventilating
system blower As dirty air enters the air cleaner, the air passes
through a metal mesh prefilter The prefilter prevents lint, pet hair
and other large particulates from entering the air cleaner It is
important that these filters be in place to prevent excessive dirt
loading of the air cleaner collector cells These filters extend the
time between maintenance of the air cleaner collector cells_ This
allows the ionizing-collector cells to provide clean air for a longer
period between washings The prefiltered air then passes through a
two-stage Electronic Air Cleaner In the first stage, all airborne
particulate, even _bmic'ron size, are electronically charged
(,positive) as they pass through the ionizer The ionizer field is set
up by a corona discharge emanating from the fine, tightly strung
wires suspended between two adjacent flat plates In the second
stage, the charged particulate passes through an intense electrical
field established between alternately charged and grounded parallel
collector plates. Here, the positively charged particulate is attracted
to the negatively ground plates and removed from the air stream
DESCRIPTION AND USAGE
Unit Specifications
This air cleaner is easy to install, operate, and maintain See Fig. 1
for EACB assembly See Table I and Fig 2 for unit specifications.
pOWI_ FI_P_Y ASS_IBLY
COVER _
CELL
P_R TFIAY
Fig. 1 - Unit Assembly
