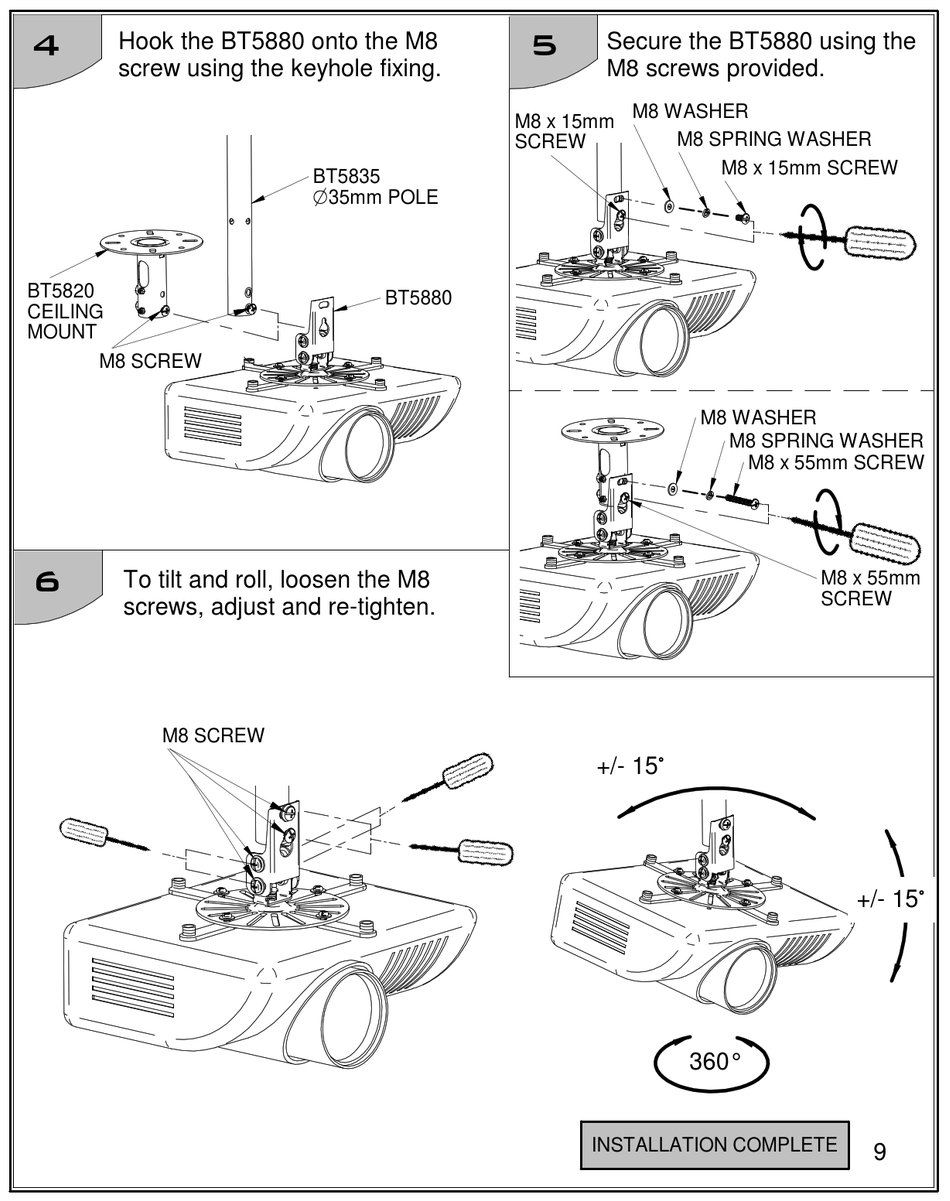

Hook the BT5880 onto the M8
screw using the keyhole fixing.
BT5820
CEILING
MOUNT
M8 SCREW
6
To tilt and roll, loosen the M8
screws, adjust and re-tighten.
M8 SCREW
BT5835
O
35mm POLE
BT5880
5
Secure the BT5880 using the
M8 screws provided.
M8 WASHER
M8 x 15mm
M8 SPRING WASHER
SCREW
°
+/- 15
360°
INSTALLATION COMPLETE
M8 x 15mm SCREW
M8 WASHER
M8 SPRING WASHER
M8 x 55mm SCREW
M8 x 55mm
SCREW
+/- 15
