B-Tech Mountlogic System 2 BT899-XL Installation Manual & Parts List

Extra-large

Advertisement

Quick Links

Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Additional Mounting Options.............................. ..............................................................................10
Product Dimensions..........................................................................................................................11
B-Tech Contact Details.....................................................................................................................12
13mm (1/2") spanner
or socket

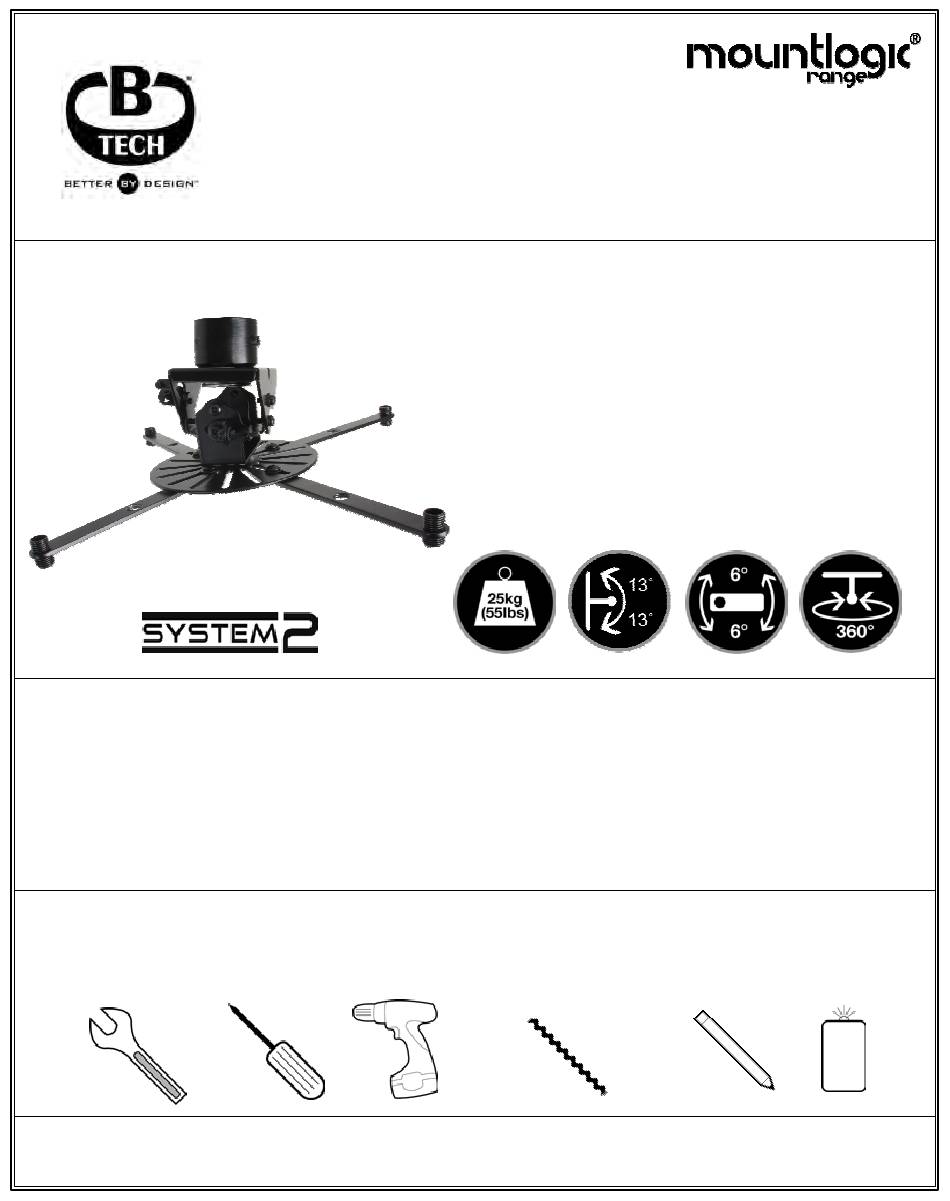

B-TECH AUDIO VIDEO MOUNTS
BT899-XL
EXTRA-LARGE PROJECTOR MOUNT
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Projector Mount
PLEASE KEEP THIS FOR FUTURE REFERENCE
CONTENTS
TOOLS REQUIRED
Drill
Crosshead
screwdriver
www.btechavmounts.com
FEATURES
● Pre-assembled for fast and simple three step installation
● Can be mounted flush to ceiling or onto 50mm (2") extension poles
or 1½" NPT pipe
● +/-13˚ tilt adjustment, +/-6˚ roll adjustment and 360˚ swivel
● Optional micro-adjustment feature for short throw projectors
● Unique 'Carousel' mounting plate for universal compatibility
● Mounts projector only 96mm (3.8") from ceiling
● Maximum distance between any 2 fixing points: 493.5mm (19.4")
● Suitable for projectors using M2.5, M3, M4, M5 and M6 fixings
● All mounting hardware & fixings included
10mm (7/16") masonry bit
or 6mm (1/4") wood bit
Pencil
Stud finder
(optional)

Advertisement

loading

Summary of Contents for B-Tech Mountlogic System 2 BT899-XL

  • Page 1: Table Of Contents

    Parts List.............................4 Installation Instructions........................6 Additional Mounting Options......................10 Product Dimensions..........................11 B-Tech Contact Details........................12 TOOLS REQUIRED Pencil 13mm (1/2") spanner Stud finder Drill 10mm (7/16") masonry bit Crosshead or socket (optional) screwdriver or 6mm (1/4") wood bit B-TECH AUDIO VIDEO MOUNTS www.btechavmounts.com...
  • Page 2: Installation Safety Notes

    Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions.
  • Page 3 Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno przekraczać podanego maksymalnego obciążenia. A B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta.
  • Page 4: Parts List

    BT899-XL PARTS LIST Supplied pre-assembled Suitable for loads up to 25kg (55lbs)
  • Page 5 PART NAME CEILING PLATE JOINTING PLATE SWIVEL PLATE Ceiling plate CAROUSEL LONG LEG SHORT LEG LEVELLING SCREW M8 x 12mm SCREW M8 NUT (FOR PART 8) M6 x 12mm SECURITY SCREW M6 METAL WASHER (FOR PART 10) M6 x 10mm SECURITY GRUB SCREW M6 x 8mm SCREW M6 METAL WASHER (FOR PART 13) 3mm SECURITY KEY (FOR PART 12)
  • Page 6: Installation Instructions

    INSTALLATION INSTRUCTIONS Attach interface assembly to projector. Loosen part 13, adjust legs then re-tighten.
  • Page 7 OPTIONAL MICRO-ADJUSTMENT For short throw projectors the micro-adjustment can be installed as shown. If the micro-adjustment is not required proceed to step 3.
  • Page 8 Mount ceiling plate to ceiling. Hook projector onto ceiling plate and secure using parts 10 and 11.
  • Page 9 Adjusting the projector. i) To tilt/roll, loosen parts 10, adjust and re-tighten. To swivel, loosen part 9, adjust then re-tighten. ii) Micro-adjustment (if installed). To tilt/roll adjust parts 18.
  • Page 10: Additional Mounting Options

    ADDITIONAL MOUNTING OPTIONS ii. Mounting to a 50mm (2") pole. i. Mounting to 1½" NPT pipe. SYSTEM 2 ADAPTOR 1½" NPT pipe (SUPPLIED) 50mm (2") POLE TYPICAL INSTALLATIONS BT7803 BT7822 BT7850 BT7850...
  • Page 11: Product Dimensions

    BT899-XL PRODUCT DIMENSIONS CEILING PLATE 104mm 4.1" 74mm 8.5mm 2.9" 0.3" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
  • Page 12: B-Tech Contact Details

    ©2014 B-Tech International Limited. All rights reserved. B-Tech Audio Video Mounts is a division of B-Tech International Limited. B-Tech & Better By Design are registered trademarks of B-Tech International Limited. All other brands and product names are trademarks of their respective owners.
