SYSTEM V ™

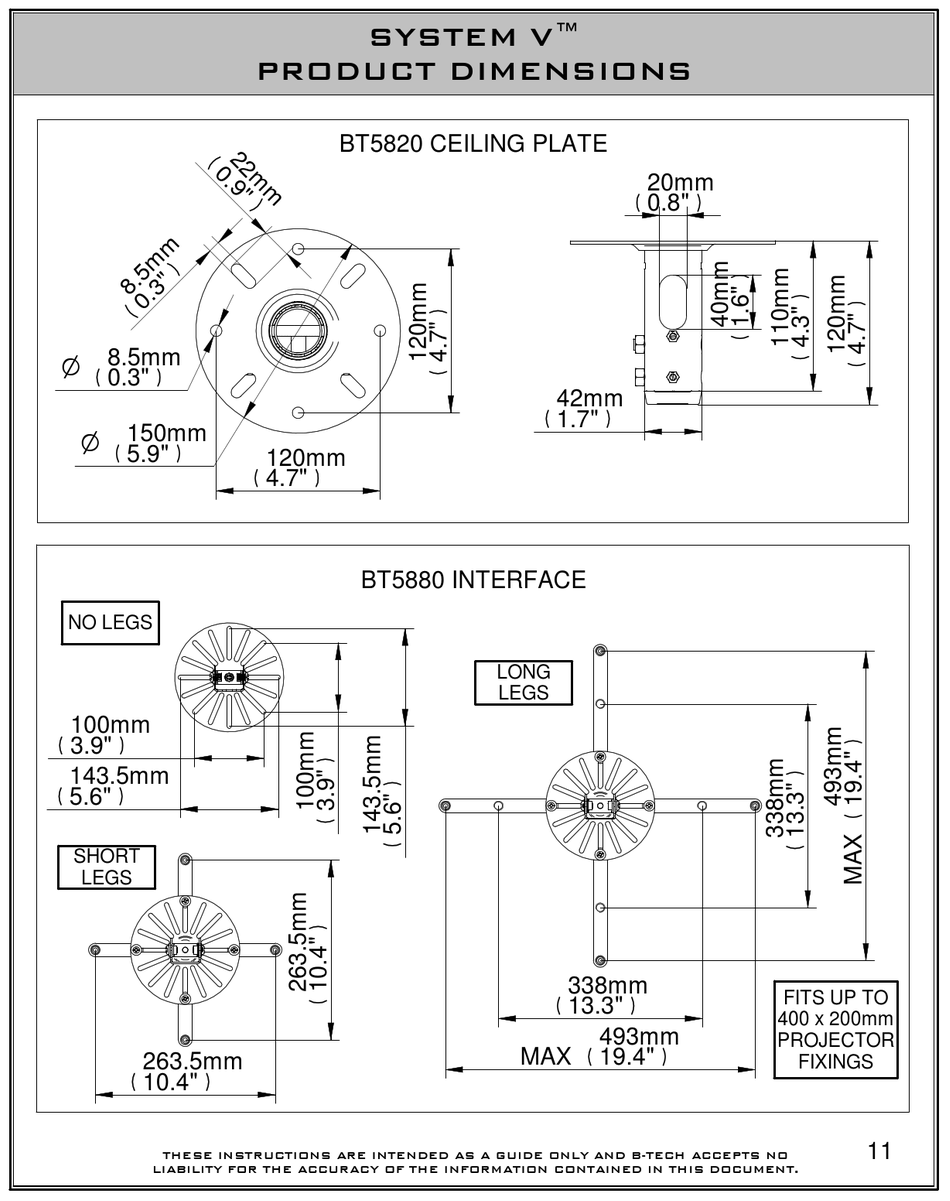

PRODUCT DIMENSIONS
BT5820 CEILING PLATE
120mm
4.7"
BT5880 INTERFACE
20mm
0.8"
42mm
1.7"
LONG
LEGS
338mm
13.3"
493mm
MAX 19.4"
FITS UP TO
400 x 200mm
