Parts List............................................................................................................................................4
Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.
Page 3
Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno przekraczać podanego maksymalnego obciążenia. A B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta.

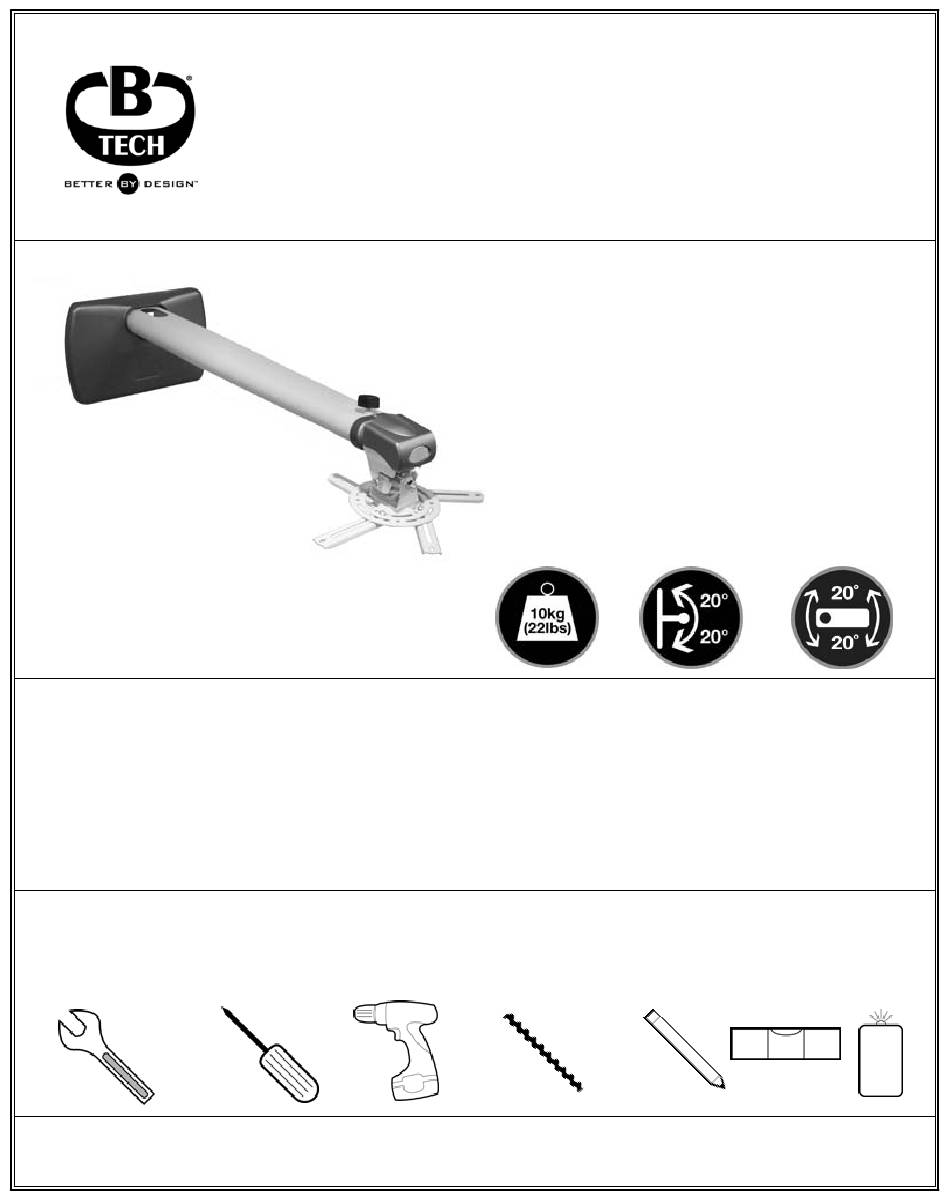

BT884-L INTERFACE WALL ARM ASSEMBLY PARTS LIST ASSEMBLY Suitable for loads up to 10kg (22lbs)
Page 5
PART NAME WALL ARM COVERPLATE HANDWHEEL END COVER PROJECTOR CAROUSEL INTERFACE KIT LONG LEG (FOR ATTACHING MOUNT TO PROJECTOR) M8 x 16mm SCREW M8 SPRING WASHER M8 x 65mm SCREW M5 x 10mm SCREW RECTANGLE WASHER SHORT LEG EYE BOLT WIRE CLIP STEEL WIRE 3mm HEX KEY (FOR PART 10)
INSTALLATION INSTRUCTIONS Remove the coverplate (part 2) from the wall plate (part 1), then fix the wall plate (part 1) to the wall. ONLY USE WALL PLUGS WHEN FIXING TO MASONRY WALLS WALL Attach coverplate (part 2) onto the wall plate (part 1).
Page 7
Attach the interface assembly to the projector. PROJECTOR Loosen part 10, adjust the legs then re-tighten. MOUNTING HOLE PROJECTOR For smaller fixing patterns, replace the long legs (part 6) with the short legs (part 12). PROJECTOR USE EXTRA SPACER/S ON PROJECTORS WITH A RECESS...
Page 8
i. Mount the projector onto the wall arm by hooking part 7 onto the hooks at the end of part 1. 0.3" 0.3" HOOKS ii. Secure by tightening part 7 on both sides using part 17.
Page 9
To adjust the distance from the wall, loosen part 3, slide out the inner arm and re-tighten. To tilt, loosen parts 7 on both sides using part 17, adjust and re-tighten. To roll, turn part 9 using part 17. +/- 20 °...
BT884-L PRODUCT DIMENSIONS 880mm 34.6" 1510mm 59.4" 55mm 2.2" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
Page 11
7.1" 258mm 10.2" 292.4mm 11.5" INTERFACE ASSEMBLY LONG LEGS SHORT LEGS 120mm 4.7" 200mm 7.9" 300mm 11.8" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
