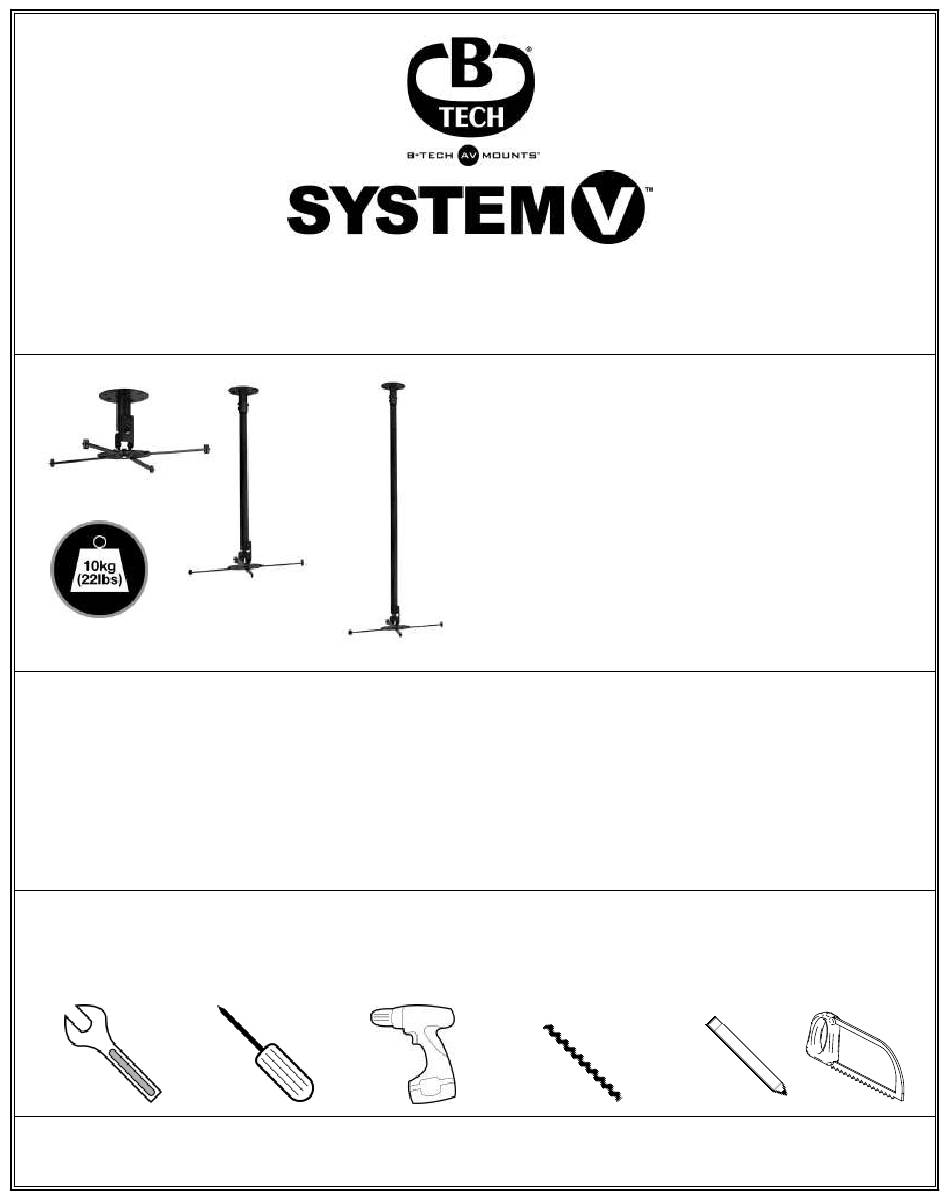

INSTALLATION TOOLS REQUIRED
13mm (1/2") spanner
or socket
B-TECH AUDIO VIDEO MOUNTS
PROJECTOR
INSTALLATION GUIDE
PLEASE KEEP THIS FOR FUTURE REFERENCE
CONTENTS
Flathead
screwdriver
www.btechavmounts.com
ceiling
The System V ™ range is available in
package or component form.
This installation guide demonstrates
how to install and use the System V ™
projector mounting range from
B-Tech.
10mm (7/16") masonry bit
Drill
or 6mm (1/4") wood bit
MOUNT
Pencil
Saw
(Optional)
