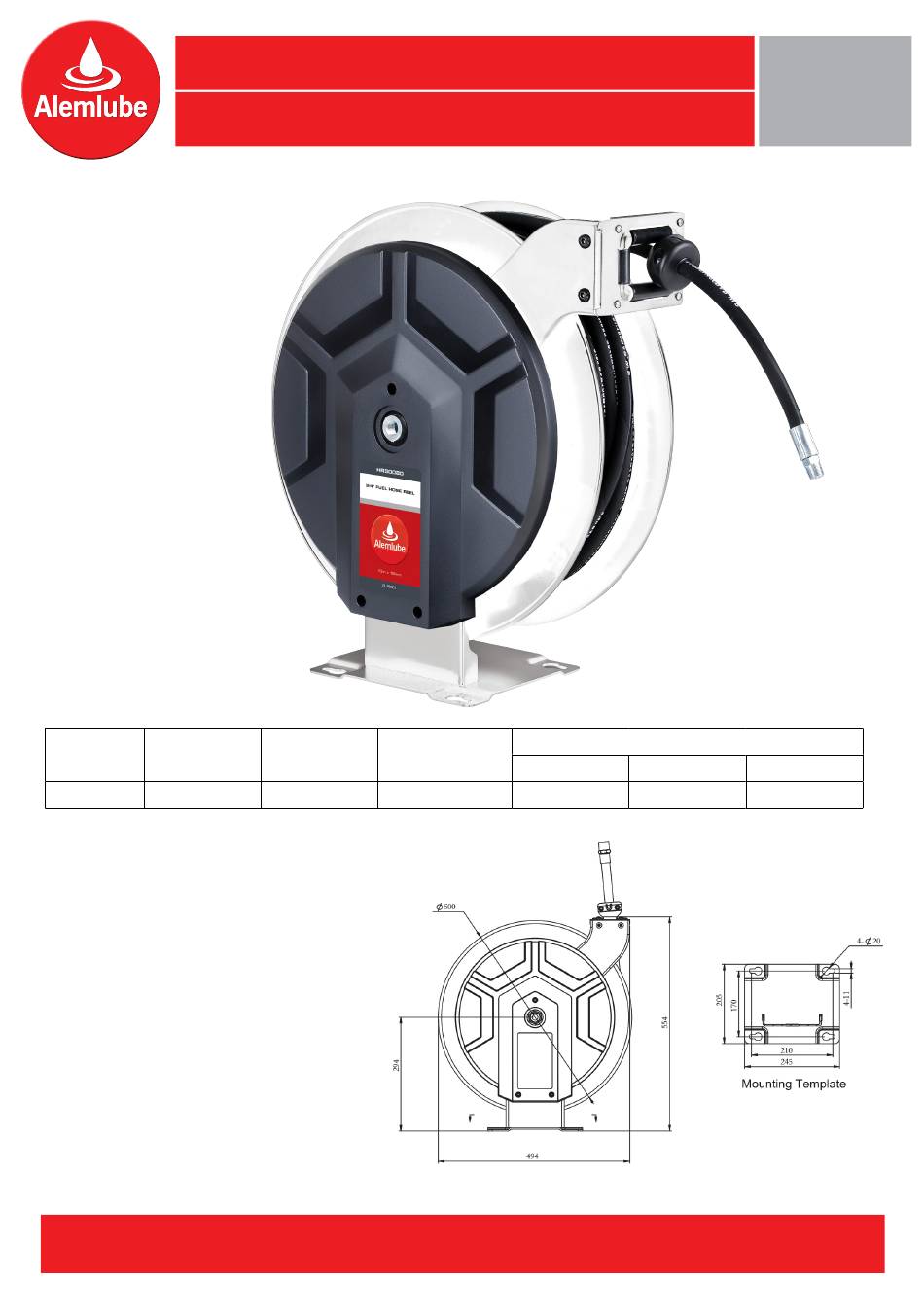

OWNER'S TECHNICAL MANUAL
TECHNICAL DETAILS
Part No.
Inlet/Outlet
HR90080
3/4" BSPT
DESCRIPTION
1. This series of hose reel is professional
spring-driven model.
2. This series of hose reel is equipped
with slow retract function
3. This series of hose reel can be pulled
and stopped at any point during usage.
TIPS
1. Read the following precautions
and instructions before you begin
assembly or using.
2. Failure to comply with these instructions
could result in personal injury
or property damage.
3. Keep these instructions in a convenient
location for future reference.
NSW/ACT
QLD/PNG
TEL: (02) 9677 1555
TEL: (07) 3204 9166
FAX: (02) 9675 1155
FAX: (07) 3204 1224

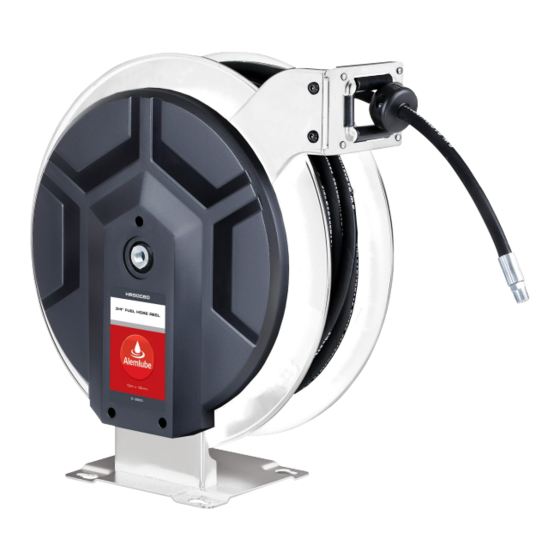

Single Pedestal 3/4" Fuel Hose Reel
Working
Hose Working
Pressure
10BAR
VIC/TAS
TEL: (03) 8787 8288
FAX: (03) 8787 8266
Visit our website at
www.alemlube.com.au
Temperature
Material
-20°C~+60°C
NBR
WA
TEL: (08) 9302 4199
FAX: (08) 9303 2095
or
www.alemlube.co.nz
HR90080
January 2021
Hose Capacity
I.D.
Length
3/4"
10m
SA/NT
NZ
TEL: (08) 8241 7111
TEL: (09) 447 1007
FAX: (08) 8241 7011
FAX: (09) 447 1008
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alemlube HR90080
Summary of Contents for Alemlube HR90080
- Page 1 OWNER’S TECHNICAL MANUAL HR90080 Single Pedestal 3/4" Fuel Hose Reel January 2021 TECHNICAL DETAILS Hose Capacity Working Hose Working Part No. Inlet/Outlet Pressure Temperature Material I.D. Length HR90080 3/4" BSPT 10BAR -20°C~+60°C 3/4" DESCRIPTION 1. This series of hose reel is professional spring-driven model.
-
Page 2: General Safety Regulations
OWNER’S TECHNICAL MANUAL HR90080 Single Pedestal 3/4" Fuel Hose Reel GENERAL SAFETY REGULATIONS WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator. -
Page 3: Operation
LIMITED WARRANTY 1. Alemlube’s warranty for this hose reel against defects in material and craftsmanship is for a period of 2 years from date of purchase. 2. Hose, if supplied with reel, O-rings, plastic rollers and rubber stopper are deemed to be normal wear items;... -
Page 4: Structure Features
OWNER’S TECHNICAL MANUAL HR90080 Single Pedestal 3/4" Fuel Hose Reel STRUCTURE FEATURES 1. The five uniformly distributed locking points in this series of hose reel, ensure that the hose can be locked at any position after being pulled out. The diagram of the locking structure is as follows: 2. -
Page 5: Ordering Spare Parts
OWNER’S TECHNICAL MANUAL HR90080 Single Pedestal 3/4" Fuel Hose Reel Ordering Spare Parts Parts List – Part No. HR90080 HR90080-33 HR90080-36 HR90080-34 HR90080-13 HR90080-11 HR90080-35 HR90080-32 HR90080-10 HR90080-07 HR90080-09 HR90080-12 HR90080-31 HR90080-37 HR90080-38 HR90080-39 HR90080-08 HR90080-40 HR90080-26 HR90080-22 HR90080-05 HR90080-23... - Page 6 OWNER’S TECHNICAL MANUAL HR90080 Single Pedestal 3/4" Fuel Hose Reel Part Number Description Part Number Description HR90080-01 Base Assembly HR90080-21 Main Axis HR90080-02 Drum Assembly HR90080-22 Fixed Screw HR90080-03 Needle Bearing HR90080-23 Switch Connector HR90080-04 Spring Core HR90080-24 Switch Connector...
