Alemlube HR90005 Owner Technical Manual

Description
The HR90000 Series of Spring Rewind Hose Reels are available in low, medium and high pressure. Medium pressure hose reels are
supplied standard with S.A.E 100R1 at one wire braid hose suitable for diesel, air, water or oil application in auto and truck workshops.
High pressure reels are supplied standard with S.A.E 100R2 at two wire braid hose suitable for grease applications.
The adjustable arms allow for floor, wall or ceiling mounting according to needs. The hose reel drum is sturdy and practical
with stiffening ribs and flange edges.
Specifications
Uses
Working Pressures
Materials

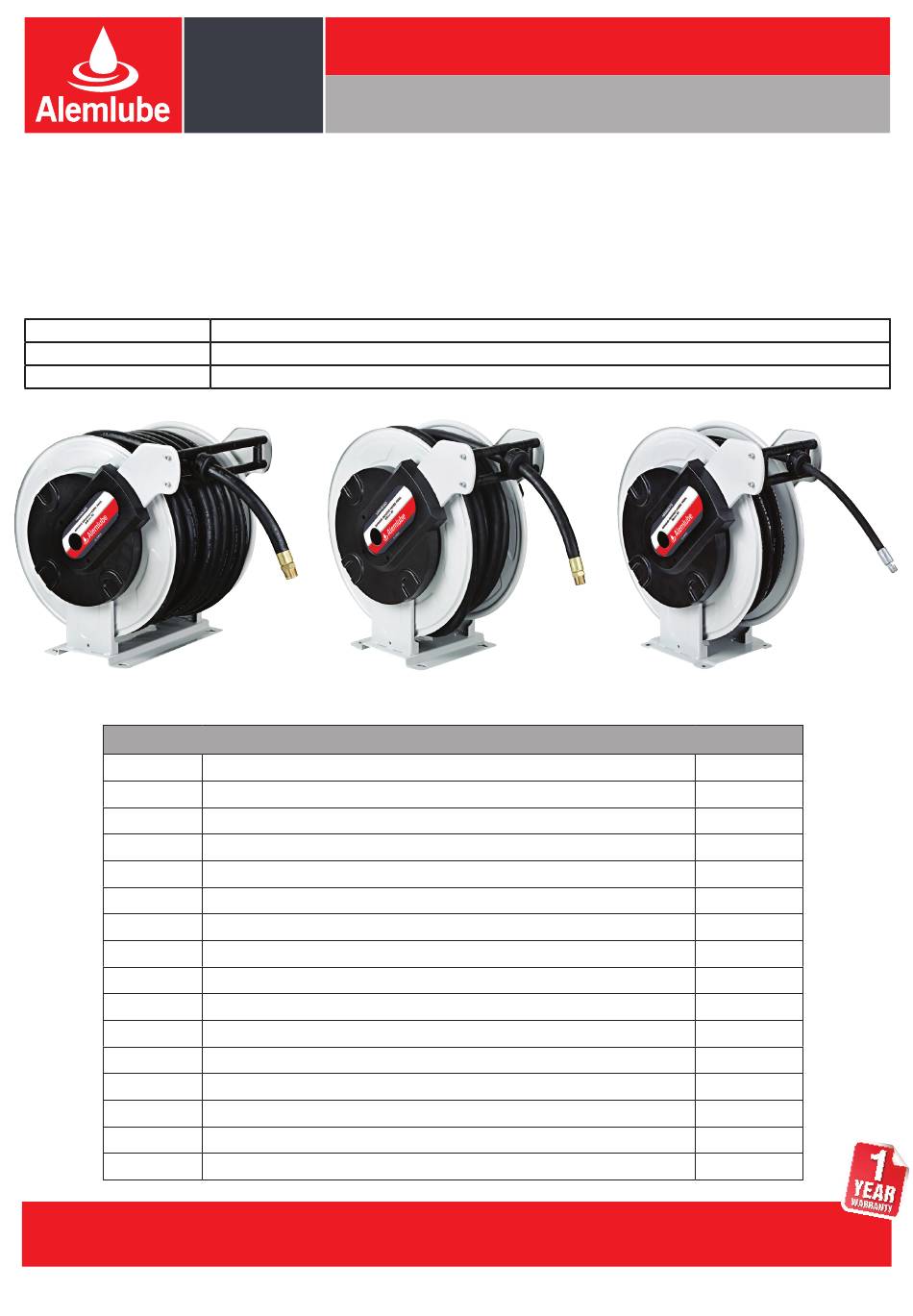

HR90005, HR90020, HR90035
HR90000 SERIES HOSE REELS
PART No.
HR90005
HR90010
HR90015
HR90020
HR90025
HR90030
HR90035
HR90040
HR90045
HR90050
HR90055
HR90060
HR90065
HR90070
HR90075
NSW QLD / PNG
TEL: (02) 9677 1555 TEL: (07) 3204 9166
FAX: (02) 9675 1155 FAX: (07) 3204 1224
OWNER'S TECHNICAL MANUAL
EL SERIES
HR90000 SERIES Spring Rewind Hose Reels
Diesel, Air, Water, Oil, Fuel and Waste Oil
300-4000psi
Steel / S.A.E 100R1, 100R2 and NBR hose
HR90010, HR90025, HR90040, HR90050,HR90055, HR90060, HR90070
PRODUCT DESCRIPTION
EL Series Diesel, Air and Water complete with 30m x 1" ID hose and hose stop
EL Series Diesel, Air and Water complete with 15m x 1" ID hose and hose stop
EL Series Diesel, Air and Water complete with 8m x 1" ID hose and hose stop
EL Series Diesel, Air and Water complete with 40m x 3/4" ID hose and hose stop
EL Series Diesel, Air and Water complete with 20m x 3/4" ID hose and hose stop
EL Series Diesel, Air and Water complete with 12m x 3/4" ID hose and hose stop
EL Series Diesel, Air and Water complete with 50m x 1/2" ID hose and hose stop
EL Series Diesel, Air and Water complete with 30m x 1/2" ID hose and hose stop
EL Series Diesel, Air and Water complete with 25m x 1/2" ID hose and hose stop
EL Series Oil, Fuel and Waste Oil complete with 15m x 1" ID hose and hose stop
EL Series Oil, Fuel and Waste Oil complete with 20m x 3/4" ID hose and hose stop
EL Series Diesel, Air and Water complete with 30m x 1/2" ID hose and hose stop
EL Series Oil, Fuel and Waste Oil complete with 25m x 1/2" ID hose and hose stop
EL Series Grease complete with 30m x 3/8" ID hose and hose stop
EL Series Grease complete with 25m x 3/8" ID hose and hose stop
VIC / TAS
TEL: (03) 8787 8288
FAX: (03) 8787 8266
Visit our website at www.alemlube.com.au
HR90015, HR90030, HR90045, HR90065, HR90075
WA SA / NT
TEL: (08) 9302 4199 TEL: (08) 8241 7111
FAX: (08) 9303 2095 FAX: (08) 8241 7011
or www.alemlube.co.nz
PSI/BAR
300psi/20bar
300psi/20bar
300psi/20bar
300psi/20bar
300psi/20bar
300psi/20bar
300psi/20bar
300psi/20bar
300psi/20bar
1,000psi/69bar
1,250psi/86bar
2,000psi/138bar
2,000psi/138bar
4,000psi/276bar
4,000psi/276bar
