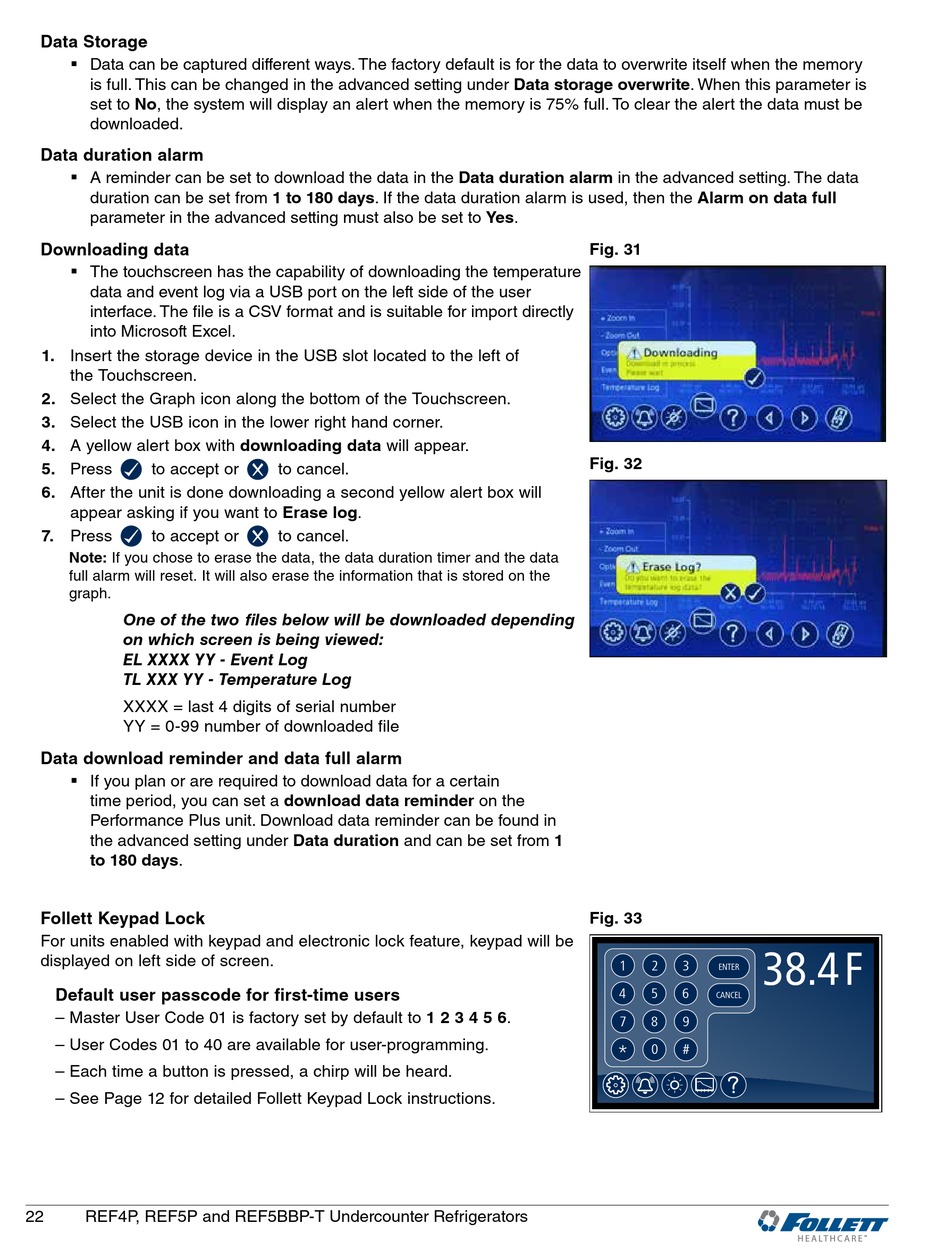

Data Storage
§ Data can be captured different ways. The factory default is for the data to overwrite itself when the memory
is full. This can be changed in the advanced setting under Data storage overwrite. When this parameter is
set to No, the system will display an alert when the memory is 75% full. To clear the alert the data must be
downloaded.
Data duration alarm
§ A reminder can be set to download the data in the Data duration alarm in the advanced setting. The data
duration can be set from 1 to 180 days. If the data duration alarm is used, then the Alarm on data full
parameter in the advanced setting must also be set to Yes.
Downloading data
§ The touchscreen has the capability of downloading the temperature
data and event log via a USB port on the left side of the user
interface. The file is a CSV format and is suitable for import directly
into Microsoft Excel.
1. Insert the storage device in the USB slot located to the left of
the Touchscreen.
2. Select the Graph icon along the bottom of the Touchscreen.
3. Select the USB icon in the lower right hand corner.
4. A yellow alert box with downloading data will appear.
5. Press to accept or
6. After the unit is done downloading a second yellow alert box will
appear asking if you want to Erase log.
7. Press
to accept or
Note: If you chose to erase the data, the data duration timer and the data
full alarm will reset. It will also erase the information that is stored on the
graph.
One of the two files below will be downloaded depending
on which screen is being viewed:
EL XXXX YY - Event Log
TL XXX YY - Temperature Log
XXXX = last 4 digits of serial number
YY = 0-99 number of downloaded file
Data download reminder and data full alarm
§ If you plan or are required to download data for a certain
time period, you can set a download data reminder on the
Performance Plus unit. Download data reminder can be found in
the advanced setting under Data duration and can be set from 1
to 180 days.
Follett Keypad Lock
For units enabled with keypad and electronic lock feature, keypad will be
displayed on left side of screen.
Default user passcode for first-time users
– Master User Code 01 is factory set by default to 1 2 3 4 5 6.
– User Codes 01 to 40 are available for user-programming.
– Each time a button is pressed, a chirp will be heard.
– See Page 12 for detailed Follett Keypad Lock instructions.
22 REF4P, REF5P and REF5BBP-T Undercounter Refrigerators
to cancel.
to cancel.
Fig. 31
Fig. 32
Fig. 33
38.4 F 38.4 F
1 2 3
ENTER
4 5 6
CANCEL
7 8 9
0 #
*
