Follett REF5-BB Installation, Operation And Service Manual

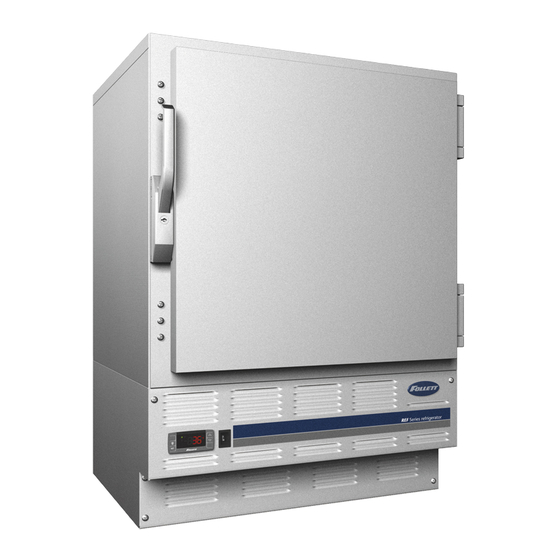

Undercounter blood bank refrigerator
Hide thumbs Also See for REF5-BB:
Table of Contents

Advertisement

Quick Links

Undercounter Blood Bank Refrigerator
Order parts online
www.follettice.com
Following installation, please forward this manual
Installation, Operation and Service Manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Toll free (800) 523-9361 • (610) 252-7301
Fax (610) 250-0696 • www.follettice.com
REF5-BB
00161943R00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REF5-BB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Follett REF5-BB

Summary of Contents for Follett REF5-BB

  • Page 1 REF5-BB Undercounter Blood Bank Refrigerator Order parts online Installation, Operation and Service Manual www.follettice.com Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA Toll free (800) 523-9361 • (610) 252-7301 Fax (610) 250-0696 •...

  • Page 2: Welcome To Follett

    Before you begin After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the filing of a claim, if necessary.

  • Page 3: Installation

    Fig. 1 Installation Installing legs – required 1. Remove legs from plastic bag packed inside refrigerator. 2. Tip refrigerator back and screw legs in all the way to stop (they will extend 1/8" below base of refrigerator). 3. Adjust legs as needed to level refrigerator in both directions. To access legs, remove the lower front panel.
  • Page 4 Reversing the door swing – optional Fig. 3 1. Remove screws and latch from refrigerator cabinet. (Fig. 3.1). 2. Use flat screwdriver to carefully remove (do not scratch) hinge covers (Fig. 4.1). 3. Support door and remove screws attaching hinge to refrigerator cabinet (Fig.
  • Page 5 Controller operation Fig. 6 In normal operation the controller displays cabinet temperatures in refrigeration system °C (default) or user-selected °F. °C temperatures are displayed to 1 energized decimal point. Rocker buttons to the right of the temperature display control all programming functions.

  • Page 6: Controller Security

    1. Press UP/DOWN ARROW in middle until “PON” displays. 2. Programmer is now unlocked. Controller programmer key (optional accessory) A controller programming key is available from Follett to provide fast and easy re-programming of factory settings. Programming key part number is 00161950. Programming refrigerator from the programming Fig.

  • Page 7: Operation

    The +1.5°C cut-out differential will be maintained regardless of the controller set point. Defrosting REF5-BB Series undercounter refrigerators do not require manual defrosting. The unit cooler defrosts automatically when the condensing unit is in the OFF cycle. Cleaning Use only non-chlorine-based cleaners.
  • Page 8 5. Adjust latch and or striker as necessary for proper door closure. Slide-out compressor tray Follett’s slide-out compressor tray allows technicians to partially slide the condensing unit from the refrigerator back without cutting refrigerant lines. 1. Remove rear panel (Fig. 10.1).

  • Page 9: Controller Replacement

    Controller replacement 1. Disconnect power to unit a. Push front panel rocker switch to OFF position. b. Disconnect power cord. 2. Remove 6 screws from front panel and slide panel forward to access back of controller. 3. Disconnect front panel and wiring harness from refrigerator at the 3, and 4 pin connectors to simplify replacement.

  • Page 10: Checking Refrigeration System Pressures

    Refrigeration system The REF5-BB series refrigeration system is designed to give many years of trouble-free service. Except for routine cleaning of the air-cooled condenser and related parts, the refrigeration system requires no service or maintenance. The system uses a thermostatic expansion valve and is critically charged. Access fittings are provided for ease of service.

  • Page 11: Before Calling For Service

    5. Recover, evacuate and weigh in correct charge. 6. Plugged or defective expansion 6. Replace expansion valve. valve. 7. Inefficient compressor. 7. Consult technical service. If problems persist after following this basic troubleshooting guide, call Follett’s technical service group at (800) 523-9361 or (610) 252-7301.

  • Page 12: Replacement Parts

    Replacement parts Evaporator Reference # Description Part # Cover, evaporator, (includes 00152892) 00155564 Fan guard 00152892 Fan blade 00152991 Bracket, fan motor 00152983 Fan motor, evaporator 00104919 Air baffle 00165126 Drain pan, evaporator 00162511 Evaporator 00151563 Expansion valve (includes 00106534) 00165118 Insulation, bulb 00106534...
  • Page 13 Condensing Unit Reference # Description Part # Condensing unit 00105106 Condenser 00105619 Shroud, condenser 00157347 Condenser fan blade 00105007 Condenser fan motor 00104992 Fan motor bracket 00157412 Compressor 00104950 Starting capacitor 00104968 Filter drier 502724 Not shown Cap, starting capacitor 00105627 Not shown Starting relay...
  • Page 14 Part # Latch & striker includes screws 00105023 Latch screws, 3 per latch 00103507 Door, REF5-BB (includes gasket - 21 3/8" x 21 3/8") 00105015 Hinge, each - 2 required, includes screws 00105031 Hinge screws, each - 6 per hinge...
  • Page 15 Rear panel screws, each - 6 per panel 00105387 Evaporator drain pan, includes clamp 00155614 Evaporator drain line, sold by the foot 203627 Not shown REF5-BB programming key, °C 00161950 Not shown Power cord 00103903 Chart recorder related items Reference #...
  • Page 16 801 Church Lane • Easton, PA 18040, USA Toll free (800) 523-9361 • (610) 252-7301 00161943R00 Fax (610) 250-0696 • www.follettice.com 01/07...
