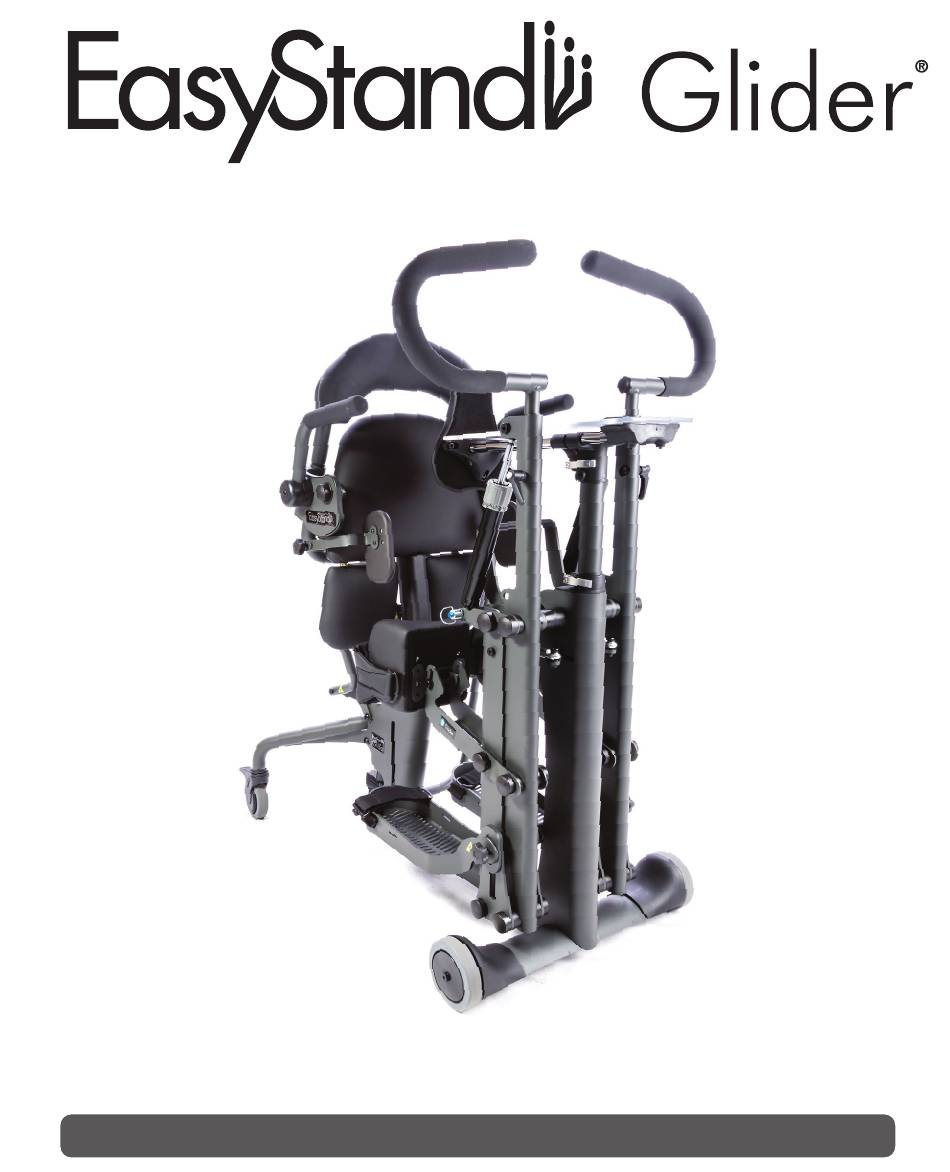

- Page 1 PNG50187 Medium and PNG50024 Large Assembly Manual Please ensure the Assembly Manual stays with the unit at all times.
- Page 2 SYMBOL/LABEL LEGEND TEMPERATURE CAUTION/WARNING/ATTENTION TYPE BF APPLIED PART DATE OF MANUFACTURE SEE INSTRUCTIONS FOR USE PINCHPOINT ATMOSPHERIC PRESSURE HUMIDITY MANUFACTURER SERIAL NUMBER CONFORMITÈ EUROPËENNE PRESCRIPTION ONLY MEDICAL DEVICE POTENTIALLY HOT SURFACE Accessible surfaces which may exceed 105˚F/41˚C and could be a hazard to persons with skin damage or not having sensation.
- Page 3 Note: The serial number is located under the seat on the seat column. DRAFT Date Purchased Serial # Contact Altimate Medical for any information required prior to purchase. This owner’s manual along with other information is freely available by request or by downloading from easystand.com.
-
Page 4: Easystand Glider Assembly
EasyStand Glider Assembly ® ® Videos on EasyStand assembly & fitting can be viewed at easystand.com/videos USE FIG . 1 - FIG . 3 FOR INTERNATIONAL ORDERS ONLY . FIG . 1- Attach the front caster frame to the front frame with bolts and tighten securely. - Page 5 Option Assembly Back Option assembly for International orders only . Back Option PNG50062, PNG50066, PNG50067, PNG50068 To assemble the back option, remove the 2 bolts from the back, slide the back assembly into the seat assembly as shown. Tighten securely with bolts provided, then add the swing-away arms.
- Page 6 Glide Handles Glide Handle Extensions Glide Handles Left Side-PNG10194 PNG50251 PNG10177 Right Side-PNG10196 (Medium only) (Medium only) (Large only) Head Support-Short Head Support-Tall 21"-30"H 25"-34"H PNG50240 PNG50037 FIG B FIG A If you ordered the high mount chest vest bracket see p.
- Page 7 Remove the nuts and bolts from the pump handle. Insert the handle onto the pump. Line up holes and insert bolts, place nuts onto bolts. Tighten securely. Standard Standard Adjustable/ T-Style Quad Grip Actuator Actuator Removable Handle Handle Handle Left Handle Right Handle Universal Left/Right Extension...
- Page 8 Secure Foot Straps Foot Straps PNG30031-15"L PNG30030-15"L PNG50505-21"L PNG50506-21"L Velcro Hip Belt PNG30029-26"-55" PNG30306-38"-67" Airline Buckle Hip Belt PNG30028 26"-55"...
- Page 9 Y-Style Non-Stretch Y-Style X-Style Non-Stretch X-Style Chest Vest Chest Vest Chest Vest Chest Vest PNG30171-17.5"Lx11.5"W PNG30320-17.5"Lx11.5"W PNG30170-11"Lx9.5"W PNG30318- 11"Lx9.5"W PNG30021-20.5"Lx12.5"W PNG30324- 20.5"Lx12.5"W PNG30056-14.5"Lx10.5"W PNG30322-14.5"Lx10.5"W High Mount Chest Vest Bracket with Head Support Bracket Chest Strap PNG50192-30"-46" PNG50193-34"-54" PNG50504-46"-66" If you ordered the high mount chest vest bracket and head support, place the head support bracket and the high mount chest vest bracket on the unit as shown.
- Page 10 Roho Seat ® Glider Medium-PNG50351 Glider Large-PNG50353 Hip Supports Glider Medium-PNG50345-9"-15" Range PNG50374- 11"-17" Range Glider Large-PNG50345-10"-15" Range PNG50374- 12"-17" Range Slide hip supports onto notch and knob under seat. Tighten knob securely. If adding hip supports off-unit, remove hole covers from top and bottom of the seat frame Lateral Supports Lateral Supports...
-
