P2100-1
Assembly Manual
Please ensure the Assembly Manual stays with the unit at all times.

Advertisement

loading

Summary of Contents for EasyStand StrapStand

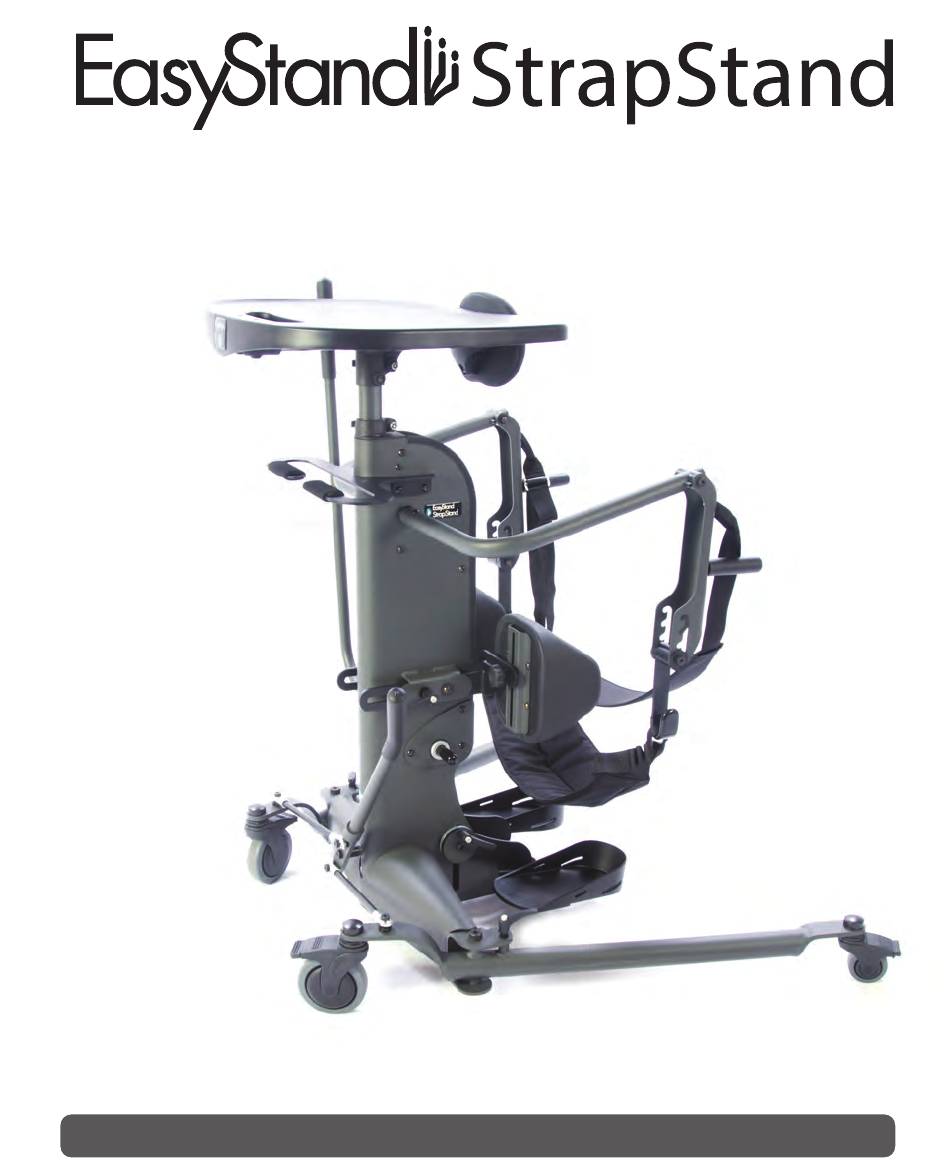

  • Page 1 P2100-1 Assembly Manual Please ensure the Assembly Manual stays with the unit at all times.
  • Page 2 SYMBOL/LABEL LEGEND TEMPERATURE CAUTION/WARNING/ATTENTION TYPE BF APPLIED PART DATE OF MANUFACTURE SEE INSTRUCTIONS FOR USE PINCHPOINT ATMOSPHERIC PRESSURE HUMIDITY MANUFACTURER SERIAL NUMBER CONFORMITÈ EUROPËENNE PRESCRIPTION ONLY MEDICAL DEVICE POTENTIALLY HOT SURFACE Accessible surfaces which may exceed 105˚F/41˚C and could be a hazard to persons with skin damage or not having sensation.
  • Page 3 Note: The serial number is located on the side of the base. Serial #: Contact Altimate Medical for any information required prior to purchase. This owner’s manual along with other information is freely available by request or by downloading from easystand.com.

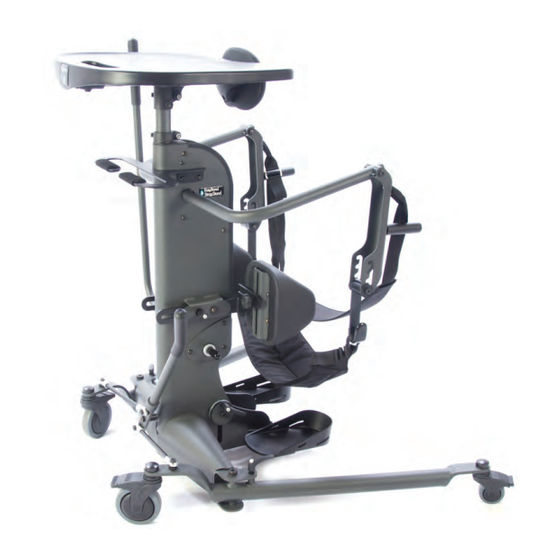

  • Page 4 EasyStand StrapStand Assembly ® Videos on EasyStand assembly & fitting can be viewed at www.easystand.com/videos Rubber Cover FIG. 4 FIG. 1A Base Unit FIG. 3 FIG. 2 FIG. 1B...
  • Page 5 Rubber Cover FIG . 1A- For the standard foot plate, place the base unit flat, as FIG. 1A shown. Remove the rubber cover on the lower part of the base to expose the inside of the unit and remove bolts from the foot plate bracket.
  • Page 6 FIG . 5- Attach the pump handle to the pump on the base with bolts and nuts, tighten securely. FIG. 5 Pump Handle FIG. 4 FIG. 5...
  • Page 7 FIG . 6- Remove all hardware from the knee bracket. Make sure the 2 nuts are in the back side of the clamp, place the clamp into the knee slot on the unit. Place the knee Spacer bracket and the spacer into the slot making sure the Clamp spacer is between the knee bracket and knee slot, lining up with the clamp.
  • Page 8 Swing-Out Leg Assembly FIG . 9- Place the leg bracket onto the base with the single hole towards the bottom and the slotted hole toward the back. Apply provided loctite to bolts before inserting and tightening securely. FIG. 9 Bracket FIG.
  • Page 9 FIG . 10- Place the leg inside the leg bracket. Insert the ratchet handle into the slotted hole and tighten securely. Insert the bolt into the hole in the bracket and through the leg. Attach nut and tighten securely. FIG . 11- Assemble handle assembly as shown, place the handle assembly onto the caster brackets as shown.
  • Page 10 Option Assembly Adjustable Lifting Strap-10"Wx26"L Lifting Strap-9"Wx25"L 80882 80811 Adjustable Lifting Lifting Strap-12"Wx28"L Strap-12"Wx29"L 80719 80881 Lifting Strap-14"Wx32"L Adjustable Lifting 80962 Strap-14"Wx32"L 80963 Adjustable Sling Adjustable Lifting Strap-9"Wx25"L Harness-10"Wx26"L 82205 82280 Adjustable Sling Adjustable Lifting Harness-12"Wx29"L Strap-12"Wx28”L 82281 82206 Adjustable Sling Adjustable Lifting Strap-14"Wx32"L Harness-14"Wx32"L...
  • Page 11 Clear Tray (shown) Place tray onto the tray Clear Angle PNG50248 post, insert nut into Adjustable Tray (shown) Narrow Clear Tray slot and bolt into hole, PNG50366 PNG50372 tighten securely. Narrow Clear Angle Black Molded Tray Adjustable Tray PNG50247 PNG50327 Black Molded Adjustable Tray PNG50368...
  • Page 12 Multi-Adjustable Foot plates P82090 Secure Foot Foot Straps Straps PNG30031-15"L PNG30030-15"L PNG50506-21"L PNG50505-21"L XL Foot plate P82144 Hand Grips PNG50042 Grab Handles P82062...
  • Page 13 Quad Grip Handle T-Style Handle Removable Actuator Extension Extension Handle PNG50044 PNG50070 P82264 Upper Body Sup- port Strap P80829 Transport Handle P82160...
  • Page 14 StrapStand Options & Parts Detail...
  • Page 16 Assembly Manual 262 West 1st St. UK REP Morton, MN 56270 USA Toll Free: 800.342.8968 or 507.697.6393 Fax Free: 877.342.8968 or 507.697.6900 email: info@easystand.com EC REP easystand.com Medical Product Service GmbH Borngasse 20 35619 Braunfels Deutschland UK REP UK REP...
