EasyStand Evolv PNG50162-1 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
®
PNG50162-1 Medium, PNG50084-1 Large & PNG50209-1 XT
Assembly Manual
Please ensure the Assembly Manual stays with the unit at all times.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Evolv PNG50162-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EasyStand Evolv PNG50162-1

Summary of Contents for EasyStand Evolv PNG50162-1

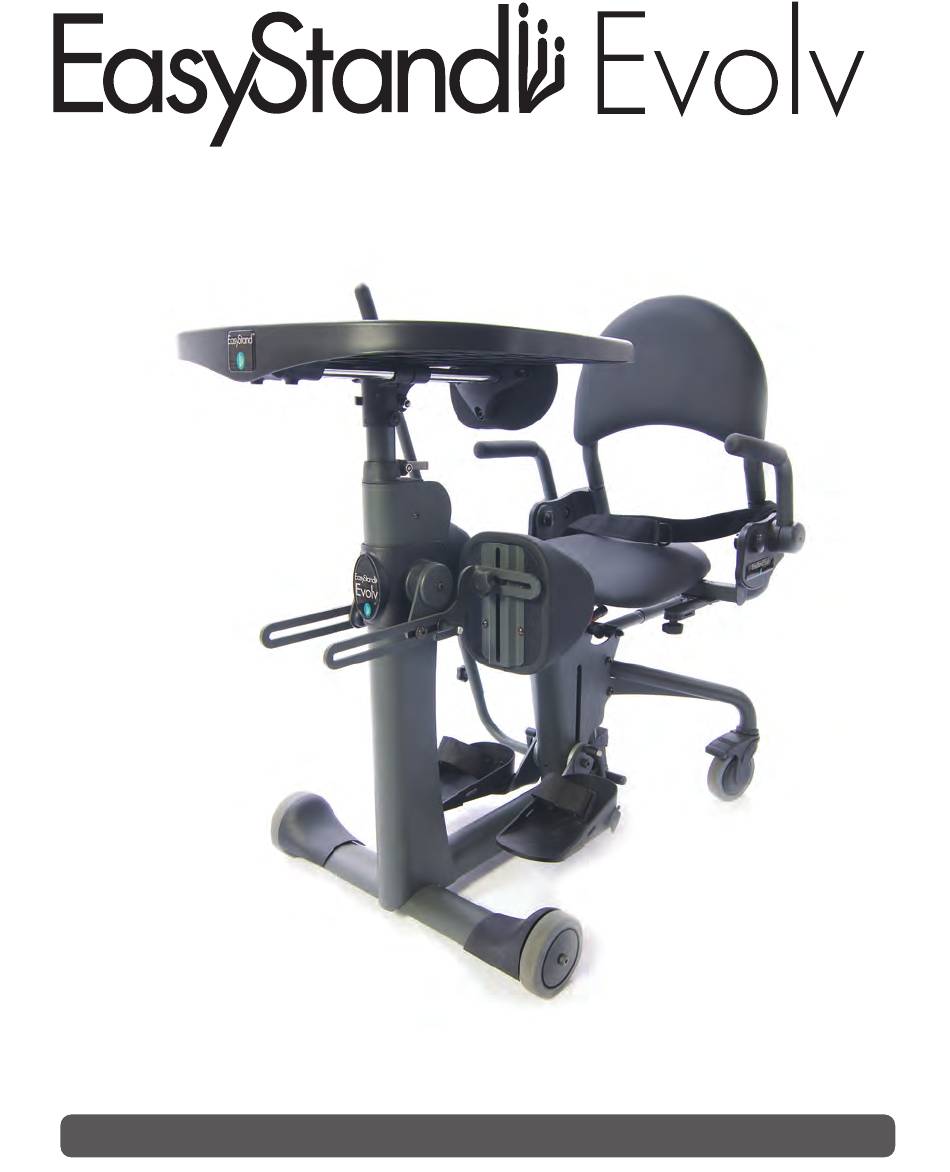

  • Page 1 ® PNG50162-1 Medium, PNG50084-1 Large & PNG50209-1 XT Assembly Manual Please ensure the Assembly Manual stays with the unit at all times.
  • Page 2 SYMBOL/LABEL LEGEND TEMPERATURE CAUTION/WARNING/ATTENTION TYPE BF APPLIED PART DATE OF MANUFACTURE SEE INSTRUCTIONS FOR USE PINCHPOINT ATMOSPHERIC PRESSURE HUMIDITY MANUFACTURER SERIAL NUMBER CONFORMITÈ EUROPËENNE PRESCRIPTION ONLY MEDICAL DEVICE POTENTIALLY HOT SURFACE Accessible surfaces which may exceed 105˚F/41˚C and could be a hazard to persons with skin damage or not having sensation.
  • Page 3 Note: The serial number is located under the seat on the seat column. Date Purchased Serial # Contact Altimate Medical for any information required prior to purchase. This owner’s manual along with other information is freely available by request or by downloading from easystand.com.

  • Page 4: Easystand Evolv Assembly

    EasyStand Evolv Assembly ® ® Videos of EasyStand Evolv assembly & fitting can be viewed at www.easystand.com/videos FIG . 3B FIG . 3A FIG . 1 FIG . 2A Seat Assembly FIG . 2B Front Frame...
  • Page 5 FIG . 2A Caster Frame For Mobile assembly refer to p. 9. If the Evolv XT was ordered, the unit will be fully Flat Washer assembled except for the tray and back option. Refer to p. 11 for the back option assembly, p. 16 for the tray assembly and p.
  • Page 6 FIG . 5 FIG . 6 FIG . 4...
  • Page 7 FIG . 4 If the Swing-Away Frame was ordered, please refer to pp. 5-6. If the Independent Kneepads were ordered refer to p. 18. FIG . 4- Remove ratchet handle and hardware from the knee bracket. Place the bracket and hardware onto the column in the order shown.
  • Page 8 Swing-Away Frame Assembly Swing-Away Frame for Shadow Tray Tray FIG . 8 FIG . 9 Tray Frame FIG . 7 FIG . 8 H-Frame Kneepad Bracket Crossbar FIG . 7 Tube Insert Front Wheel Frame...
  • Page 9 FIG . 7- Insert the H-frame into the front wheel frame. Insert pins into the holes provided (crossbar should face seat). Make sure the tube insert is in place as shown. If the Front Swivel Casters were ordered refer to p. 17. If the Independent Kneepads were ordered refer to p.
  • Page 10 Shadow Tray Assembly ® These assembly instructions are shown for the right side mounted Shadow Tray, for the left side mounted Shadow Tray, installation will be on the opposite side . Required Tools: -13mm open end wrench -Hex Wrench 1. Remove nut and lock 2.
  • Page 11 7. Place the cloth protection 8. Insert tray tube into the tray 9. Insert bolt into desired hole. sleeve on the tray bracket as bracket. Note: You may need assis- shown. tance lining up the hole from a partner. 10. Place washer onto bolt. 11.

  • Page 12: Mobile Assembly

    Mobile Assembly FIG . 19 Caster Frame FIG . 20 Flat Washer FIG . 18 Flat Washer Bolt Mobile Bracket Mobile Bracket Knee Pad Bracket FIG . 22 Mobile Assembly Wheel Frame FIG . 21...
  • Page 13 FIG . 18 Front Frame FIG . 18- Place the front frame onto the wheel frame. Line up the two bolts with the holes on the wheel frame, start both bolts before tightening securely. Wheel Frame FIG . 19- Remove nut and flat washer from the bolt on the caster.
  • Page 14 Option Assembly Back Option PNG50062, PNG50066, PNG50067, PNG50068 To assemble the back option, remove the 2 bolts from the back, slide the back as- sembly into the seat assembly as shown. Tighten securely with bolts provided, then add the swing-away arms. Remove the nut and lock washer from the arm.
  • Page 15 Head Support-Short Head Support-Tall 21"-30"H 25"-34"H PNG50240 PNG50037 If you ordered the high mount chest vest bracket see p. 14. FIG A- Place head support bracket onto accessories mounting bracket as shown. Insert 4 bolts and nuts and tighten securely. FIG B- Insert the head support onto the unit and tighten securely.
  • Page 16 Remove the nuts and bolts from the pump handle. Insert the handle onto the pump. Line up holes and insert bolts, place nuts onto bolts. Tighten securely. Standard Standard Adjustable/ T-Style Quad Grip Actuator Actuator Removable Handle Handle Handle Left Handle Right Handle Universal Left/Right Extension...
  • Page 17 High Mount Chest High Mount Chest Vest Bracket Vest Bracket with Head Support PNG11212 PNG11212 If you ordered the high mount chest vest bracket and head support, place the head support bracket and the high mount chest vest bracket on the unit as shown.
  • Page 18 Large Contoured Chest Pad PNG30000 Column Frame Remove bolts from chest Oversized Tray pad and place onto tray. PNG50194-1 Tighten bolts securely. Chest Strap PNG50192 30"-46" PNG50193 34"-54" PNG50504 46"-66" Padded Tray Cover PNG30295 X-Style Chest Vest PNG30170 11"L-9.5"W PNG30056 14.5"L-10.5"W Y-Style Chest Vest Non-Stretch X-Style Chest Vest PNG30171 17.5"L-11.5"W...
  • Page 19 Swing-Away Frame Place tray onto the tray post, insert nut into Black Molded Angle slot and bolt into hole, tighten securely. Adjustable Tray PNG50490-1 Swing-Away Frame Clear Angle Adjustable Tray PNG50489-1 Swing-Away Front Oversized Angle Adjustable Clear Tray PNG50491-1 Column Frame Angle Adjustable Clear Tray PNG50366-1 Mobile Frame...
  • Page 20 Front Swivel Casters for Swing-Away Fronts Evolv Medium/Large-PNG51044R/PNG51044L Evolv Medium/Large-PNG51048R/PNG51048L FIG . A- Place a block of wood under the unit to FIG . A raise the caster frame to line up caster brackets to frame. Place hardware onto the unit as shown- bolt, washer, frame, spacer, caster assembly, washer, then nut.
  • Page 21 Independent Independent Roho Swing-Away Front ® Knee Pads PNG50384 Knee Pads PNG50385 Independent Knees PNG50425 Slotted Washers Curve Up Remove ratchet handle and hardware from the knee bracket. Place onto the column in the order as shown. Make sure spacer is placed between the two steel brackets. Leave the bolt just loose enough to allow bracket to slide freely.
  • Page 22 Rotating Seat Roho Seat ® Evolv Medium-PNG50324 Evolv Medium-PNG30183 Evolv Large/XT-PNG50318 Evolv Large/XT-PNG30023 Push the lever under the seat to rotate. Ensure seat is locked into position prior to transferring. Install the seat onto the seat assembly after all the other options are added.
  • Page 23 Pow’r Up Lift Hand Pendent Assembly Evolv Medium/Large-PNG50010 Evolv XT-PNG50321 Place hand pendent assembly onto unit and line up bracket with holes on unit. Place lock washers onto bolts. Insert bolts into holes on the unit and tighten securely.
  • Page 24 Evolv Options & Parts Detail (front) ®...
  • Page 26 Evolv Options & Parts Detail (rear) ®...
  • Page 28 Assembly Manual 262 West 1st St. UK REP Morton, MN 56270 USA Toll Free: 800.342.8968 or 507.697.6393 Fax Free: 877.342.8968 or 507.697.6900 email: info@easystand.com EC REP easystand.com Medical Product Service GmbH Borngasse 20 35619 Braunfels Deutschland UK REP UK REP...

This manual is also suitable for:

Evolv png50084-1Evolv png50209-1 xt
