Kiwi Camping Harrier 6 Tourer Tent Pitching Instructions

Harrier 6 Tourer Tent
Model No. KC077-031
PITCHING INSTRUCTIONS
Your tent includes:
2 x U-shape poles
1 x elbow pole
2 x adjustable thumbscrew poles
2 x porch poles
1 x straight-top ridge pole
2 x ridge leg poles
10 x guy ropes
24 x pegs
1. Select a dry, level site and clear any sharp objects that
may puncture the floor. Remove the tent from its carry
bag, untie fabric ties and unroll the tent.
2. Peg out all four corners, ensure each side is pulled
taut. Then peg out all the remaining pegging points.
3. Assemble the ROOF FRAME POLES (1 x Elbow + 2 x
U-shape poles) by inserting the U-shape poles into the
elbow. Ensure the metal pins lock in to place. Unzip
the front door and secure assembled roof frame to
inner tent roof using the 8 hook and loop tabs.

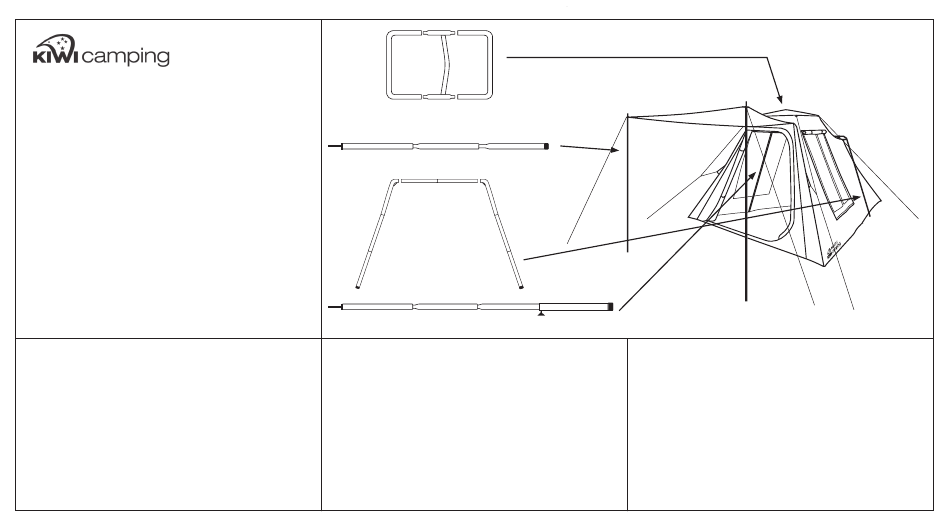

Roof Frame Poles
1 x elbow + 2 x U-shape poles
2 x porch poles
Back External Ridge Poles
1 x straight-top ridge pole +
2 x ridge leg poles poles
2 x adjustable thumbscrew poles
4. Assemble 2 x ADJUSTABLE THUMBSCREW POLES. If
erecting alone, support the roof frame pole by inserting
a porch pole into the central hole. Insert the pole tip
into holes located at either side of the roof elbow pole,
stand up one at a time. Adjust the thumbscrews to the
appropriate height so the tent fabric is taut.
5. To assemble BACK EXTERNAL RIDGE POLES. Thread
the straight-top ridge pole through the pole sleeve on
the external back of the tent. Insert the ridge leg poles
into the top ridge pole through the webbing loops.
Adjust the angle of the poles so they pull the back of
the tent taut. Secure the webbing ties.
To make sure the tent stays
in place insert the pegs into
the ground at a 45° angle,
not straight down.
6. Attach guy ropes to secure the back external ridge
pole. Rope out remaining guy ropes and fine tune the
tent so it remains taut and positioned correctly.
7. Assemble 2 x PORCH POLES. To erect the porch,
insert the pole tip into the eyelets located at the corners
of the porch. Attach the guy ropes to the top of the
pole tip and peg out on a 45° angle. For extra weather
protection, move the porch poles in to the two central
eyelets, attach guy ropes to the two outer eyelets and
peg out with guy ropes.
REVERSE THE PROCEDURE TO LOWER TENT
