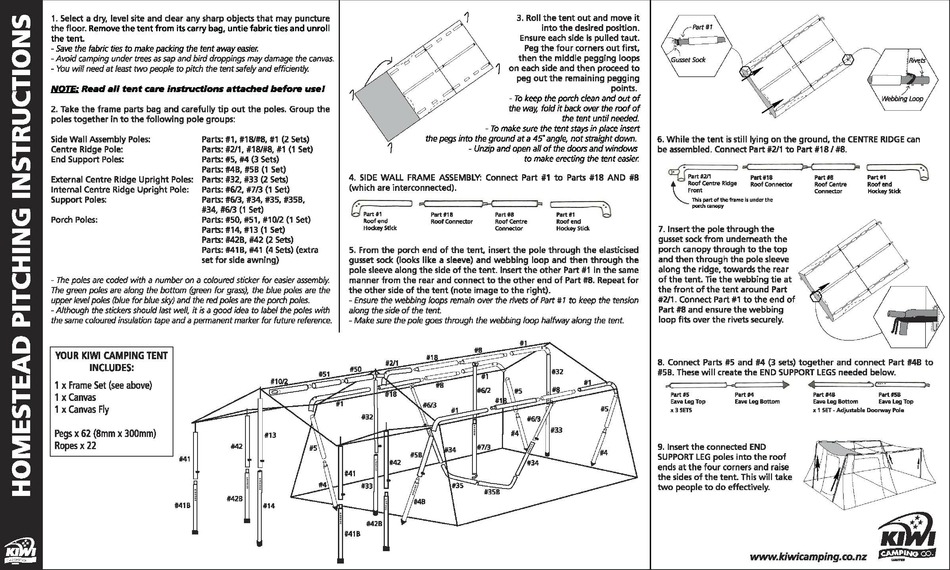

Kiwi Camping HOMESTEAD Pitching Instructions

1. Select a dry, level site and clear any sharp objects that may puncture
the floor. Remove the tent from its carry bag, untie fabric ties and unroll
the tent.
- Save the fabric ties to make packing the tent away easier.
- Avoid camping under
trees
as sap and bird droppings may damage the canvas.
- You will need at least two people to pitch the tent safely and efficiently.
NOTE; Read all
tent cant
instructions attached be'fore usel
2.
Take the frame parts bag and carefully tip out the poles. Group the
poles together in to the following pole groups:
Side Wall Assembly Poles:
Centre Ridge Pole:
End Support Poles:
External Centre Ridge Upright Poles:
Internal Centre Ridge Upright Pole:
Support Poles:
Porch Poles:
Parts: #1, #181#8, #1 (2 Sets)
Parts: #2/1, #181#8, #1 (1 Set)
Parts: #5, #4 (3 Sets)
Parts: #48, #SB (1 Set)
Parts: #32, #33 (2 Sets)
Parts: #6/2, #713 (1 Set)
Parts: #6/3, #34, #35, #358,
#34, #613 (1 Set)
Parts: #50, #51, #10/2 (1 Set)
Parts: #14, #13 (1 Set)
Parts: #42B, #42 (2 Sets)
Parts: #41 B, #41 (4 Sets) (extra
set for side awning)
- The poles are coded with a number on a coloured sticker for easier assembly.
The green poles are along the bottom (green for grass), the blue poles are the
upper level poles (blue for blue sky) and the red poles are the porch poles.
- Although the stickers should last well, it is a good idea to
label the poles
with
the same coloured insulation tape and a permanent marker for future reference.
YOUR KIWI CAMPING TENT
INCLUDES:
1
x
Frame Set (see above)
1
x
Canvas
1 x Canvas
Fly
Pegs x 62 (8mm x 300mm)
Ropes x 22
#41
#418
3. Roll the tent out and move it
into the desired position.
Ensure each side is pulled taut.
Peg the four corners out
first,
then the middle pegging loops
1
on each side and then proceed to
peg out the remaining pegging
points.
- To keep the porch clean and out of
the way, fold it back over the roof of
the tent until needed.
- To make sure the tent stays in place insert
the pegs into the ground at a 45• angle, not straight down.
- Unzip and open all of the doors and windovvs
to make erecting the tent easier.
4. SIDE WALL FRAME ASSEMBLY: Connect Part #1 to Parts #18 AND #8
(which are interconnected).
(i
Part11
Roof end
Hodc:ey Stick
1
p(
Part 118 b-.f,_P _art_#ll _ _ _,,R
r . .__Pa-rt-#1--~\)
Roof Connector Roof Centre Roof end
Connector Hockey
stick
5. From the porch end of the tent. insert the pole through the elasticised
gusset sock (looks like a sleeve) and webbing loop and then through the
pole sleeve along the side of the tent. Insert the other Part #1 in the same
manner from the rear and connect to the other end of Part #8. Repeat for
the other side of the tent (note image to the right).
- Ensure the webbing loops remain over the rivets of Part # 1
to
keep the tension
along the side
of
the tent.
- Make sure the pole goes through the webbing loop halfway along the tent.
6. While the tent is
still
lying on the ground, the CENTRE RIDGE can
be assembled. Connect Pa rt #211 to Part #18 I #8.
rr.{~
)
""'-----~P-<
p (
~
Part
#211
Part #18 Part Ill Part #1
Roof Centre Ridge Roof connector Roof centre Roof end
Front Connector Hockey Stick
lhi5 P'rt of the fnime i5 under the
porth canopy
7. Insert the pole through the
gusset sock. from underneath the
porch canopy through to the top
and then through the pole sleeve
along the ridge, towards the rear
of the tent. Tie the webbing tie at
the front of the tent around Part
#2/1. Connect Part #1 to the end of
Part #8 and ensure the webbing
loop fits over the rivets securely.
8. Connect Parts #5 and #4 (3 sets) together and connect Part #48 to
#58. These will create the END SUPPORT LEGS needed below.
... >--ct ..
~
. ,,....
)::a-
Part #S PartM
Eave Lag Top
Eave Leg Bottom
x35ETS
9. Insert the connected END
SUPPORT LEG poles into the roof
ends at the four corners and raise
the sides
of
the tent. This will take
two people to do effectively.
Part #48 Partl5B
Eave
Leg
Bottom
Eave Leg
Top
x
1 SET •
Adjustable Doorway Pole
www.kiwicamping.co.nz
