Kiwi Camping Weka 2 Pitching Instructions

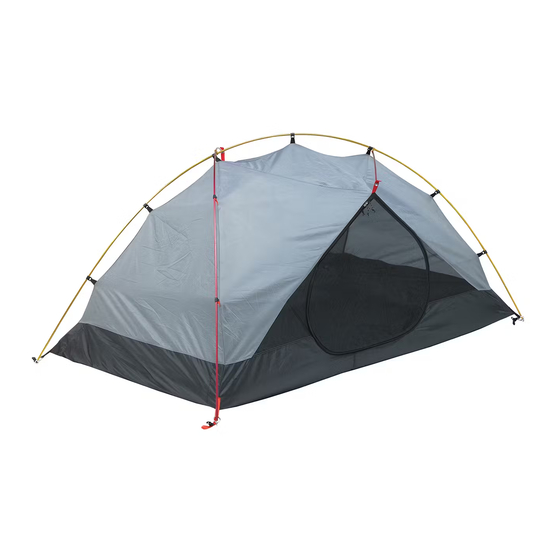

Weka 2 Hiker Tent
Model No. KC072-105
PITCHING INSTRUCTIONS
Your tent includes:
12 x pegs
4 x ropes
1 x GOLD aluminium pole (3490mm x 8.5mm)
2 x RED aluminium poles (2130mm x 8.5mm)
1. Select a dry, level site and
clear the ground of any
sharp objects. Remove
the tent from it's carry bag,
untie fabric ties and unroll
the tent. Save the fabric
ties to make packing away
the tent easier.
2. Spread out the floor of the
inner tent and peg out the
four corners ensuring that
the inner is pulled taut and
secure.
3. Lay out all three aluminium poles. You will have one
GOLD pole and two RED poles. Using the GOLD
pole, fit the pin and rings at each end of the tent into
the ends of the pole and clip on the speed clips.
4. Take one of the remaining RED poles and fit a pin
and ring with RED webbing into the pole. Clip the
other end of the pole into the eyelet with the RED
webbing above the opposite door. Clip on the speed
clips. Repeat with the second RED pole.
To make sure the tent
stays in place, insert
the pegs into the
ground at a 45° angle.
Pitch the tent so it is
in line with the wind,
never side on.
5. Carefully pull the fly over the top of the inner and
peg out the four corners. Opening both doors,
reach under the fly and attach any Velcro ties to
the poles. Once this is done, zip up the doors and
finish pegging out the fly.
6. Finally, rope out the guy ropes and fine tune the
fly so it remains taut and positioned correctly over
the tent.
REVERSE THE PROCEDURE TO LOWER THE TENT
PACKING INSTRUCTIONS
Pack the poles and pegs into their bags. Evenly lay out the
outer fly inside the tent inner leaving all doors and windows
open. Fold the inner tent floor from each side to the centre
and in half again. Adjust to the length of the poles. Place
the poles onto the floor and roll them inside so that the floor
is on the outside. Store and pack the tent in it's bag.
