Kiwi Camping Oasis Shelter Manual

Oasis Shelter
Model No. KC074-800
FIRE SAFETY WARNING
1. KEEP ALL FLAME AND HEAT SOURCES AWAY
FROM THIS TENT FABRIC!
2. Never place your stove, campfire, heater or
other flame source in or near your shelter.
3. Never cook, light or refuel a stove or other heat
source in or near your shelter.
Do not operate gas appliances in your shelter.
4. Do not hang lights or heating devices near the
walls of your shelter.
5. Maintain adequate ventilation inside your
shelter at all times.
6. Familiarise yourself with the fire safety rules
and regulations of the grounds where you are
camping.
7. Keep children away from all heat and fire
sources.
8. Do not store flammable liquids inside your
shelter.
9. Do not smoke in your shelter.
10. Extinguish or turn off all appliances, fires and
heat sources before going to sleep.
11. Never use aerosols or insect repellent sprays
in or around the fabric of your shelter. It can
damage the water proofing and is not covered
by our warranty.
Your shelter includes:
1 x solid wall
8 x pegs
4 x ropes
4 x black STEEL poles (5570mm x 19mm)
1 x black STEEL pole (3280mm x 19mm)
2 x black STEEL peak connector poles (1630mm x 19mm)
1 x centre hub (connector)
4 x pad feet
PITCHING INSTRUCTIONS
1. Select a dry, level site and clear the ground of any
sharp objects. Remove the shelter from its carry
bag, untie fabric ties and unroll the shelter.

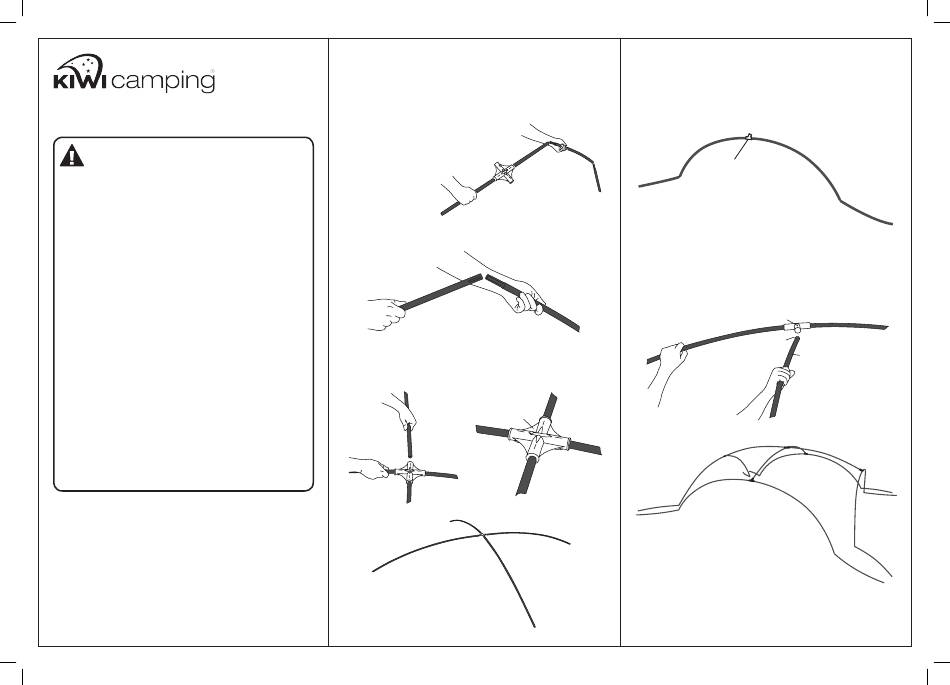

2. Assemble peak
pole with centre
hub
(Fig. 1).
3. Assemble both peak connector poles (Fig. 2).
4. Insert ends of the peak connector poles into the
peak pole with centre hub (Fig. 3, 4 and 5).
Center Hub
Fig. 3
5. Partially assemble the four leg poles with ridge
hub (Fig. 6).
Note: Do not assemble the last pole on each side
of the ridge hub at this time.
Fig. 1
Ridge Hub
6. Insert end of peak connector pole into ridge lug
(Fig. 7 and 8). Repeat for the remaining three leg
poles with ridge hub.
Note: Make sure metal pin locks into slot on top of
ridge hub, you may have to twist peak connector
Fig. 2
from side to side.
Fig. 4
Fig. 5
Fig. 6
Slot
Metal Pin
Peak Connector
Pole
Fig. 7
Fig. 8
