Kiwi Camping KC077-057 Manual

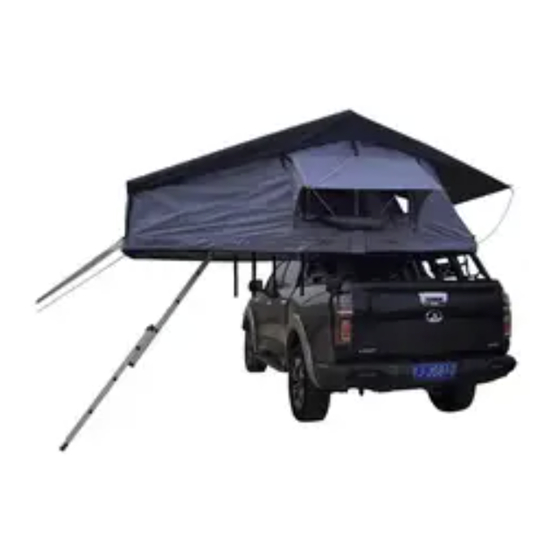

Tuatara summit extended rooftop tent
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SAFETY INSTRUCTIONS
• Regularly check nuts and bolts attaching the Rooftop Tent to your vehicle to make sure
fastenings are tight and in good condition.
• Remove the Rooftop Tent before using a commercial car wash.
• Do not use Rooftop Tent or storage bag to hoist, lift or support yourself.
• It is important when mounting to a vehicle, that all the mounting brackets supplied are
adequately spaced to support the weight of the Rooftop Tent.
• Products applied to a vehicle roof will alter vehicle handling. The manufacturer disclaims
all responsibility in relation to accidents due to improper use, incorrect maintenance, or
negligence in maintaining fastening hardware. It is recommended to not exceed 100km/h.
• This Rooftop Tent will increase the height of your vehicle. Measure the overall height and be
aware of height restrictions in car park buildings etc.
• If pitching in windy conditions it is advised to find a less exposed location. Park with the back
of the tent facing into the wind. Be aware of dropping branches and other potential hazards.
Collapse the tent in strong winds.
• Never drive with roof tent erected.
• Do not put anything on the top of the tent when it is installed.
• The load-bearing of the frame is no more than 300kg.
Filename: 5523_KC077-057 Tuatara Summit Extended Rooftop Tent Instructions
Dimensions: A5 Booklet
Colour: Black

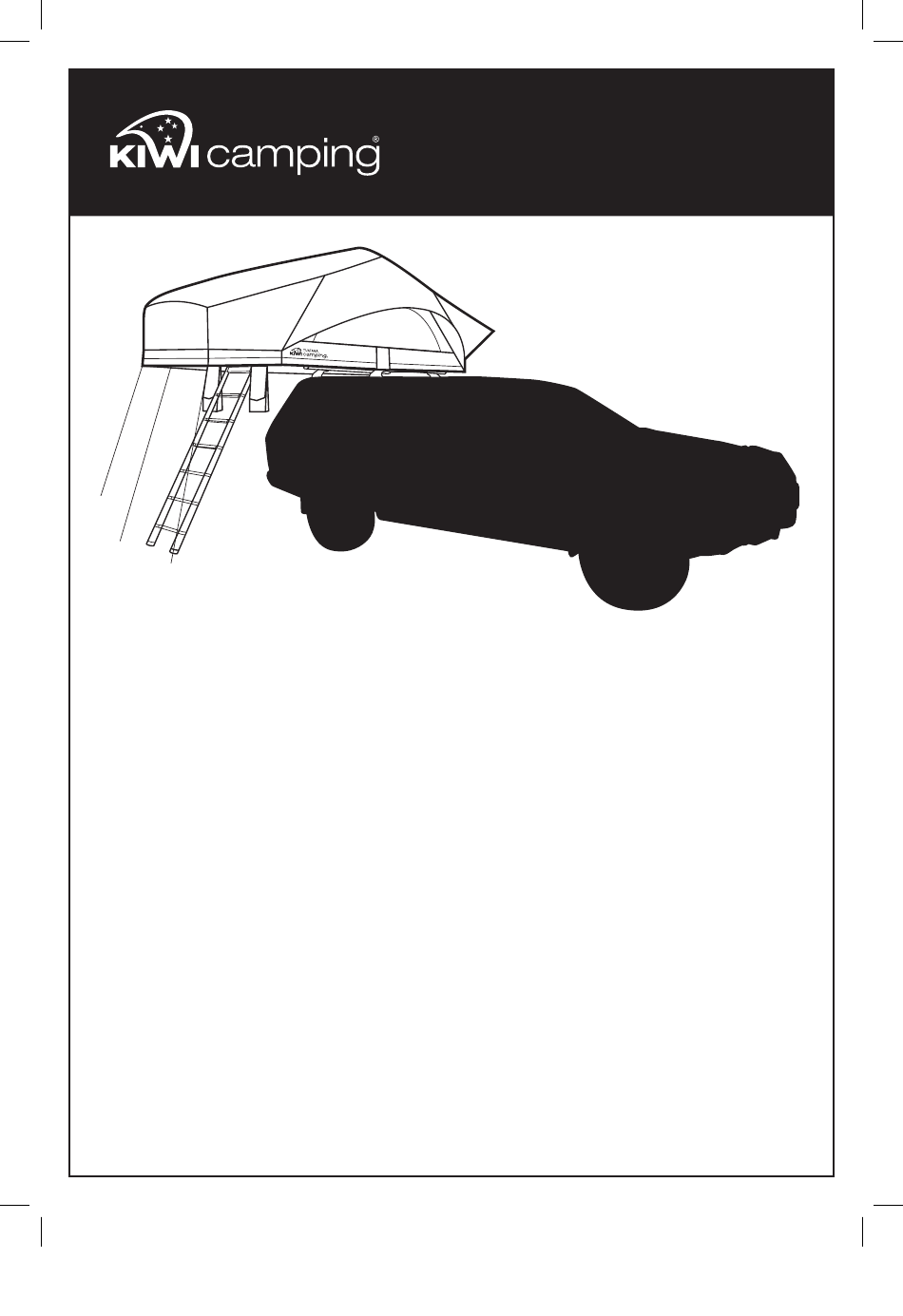

TUATARA SUMMIT EXTENDED
ROOFTOP TENT
Model No. KC077-057

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KC077-057 and is the answer not in the manual?

Questions and answers

Related Manuals for Kiwi Camping KC077-057

Summary of Contents for Kiwi Camping KC077-057

  • Page 1 TUATARA SUMMIT EXTENDED ROOFTOP TENT Model No. KC077-057 SAFETY INSTRUCTIONS • Regularly check nuts and bolts attaching the Rooftop Tent to your vehicle to make sure fastenings are tight and in good condition. • Remove the Rooftop Tent before using a commercial car wash.

  • Page 2: Parts Included

    PARTS INCLUDED YOUR TUATARA SUMMIT EXTENDED ROOFTOP TENT INCLUDES: 1 x Rooftop Tent 2 x mounting rails 1 x ladder (includes 2 x ladder brackets, 2 x bolts, 2 x nuts, 4 x washers) 2 x storage bags 1 x travel cover 4 x mounting brackets 4 x spacers 8 x slide plates...
  • Page 3 ROOFTOP TENT INSTALLATION The Tuatara Summit Extended can be fitted to smaller vehicles as long as the fitted roof rack or crossbars support a dynamic weight load of 75kg or higher. We recommend using only permanent roof racks and crossbars. The distance between the car roof and the bottom of the roof rack should be no less than 3cm.
  • Page 4 Attach the travel cover by feeding the zipper through the track on the base (mounting rail) of the tent. Ensure the zipper cover is put through the mattress/hinge side of the tent. Close the Rooftop Tent and secure it with the compression straps.

  • Page 5: Pitching Instructions

    PITCHING INSTRUCTIONS Before opening your Tuatara Summit Extended Rooftop Tent, ensure that all eight bolts are fastened tight so that the tent does not move when opening. Release the straps and unzip the Travel Cover. Remove towards the opening section. Secure the Travel Cover underneath the fold-out section of the Rooftop tent using the attached fastener.
  • Page 6 Pitch out the porch with the attached guy ropes. Ensure the pegs are at a 45° angle so they remain secure. Adjust the tri- tensioners so the ropes remain taut. To pitch the side windows, assemble the fibreglass poles. Feed the longer poles through the window power mesh sleeves and secure each end by placing the pole into the pole connector.

  • Page 7: Packing Instructions

    PACKING INSTRUCTIONS Ensure the Rooftop Tent is dry and clean inside and out before packing down so that mildew or mould does not build up. Make sure nothing heavy or bulky is left inside the Rooftop Tent before folding. Any bedding should be laid flat. Partly unzip the windows and doors so that the air can escape from the tent when folded.

  • Page 8: Care Instructions

    CARE INSTRUCTIONS PLEASE READ ALL OF THE CARE INFORMATION AND INSTRUCTIONS INCLUDED WITH THIS ROOFTOP TENT BEFORE USING IT FOR THE FIRST TIME. THE BODY OF THE TUATARA SUMMIT EXTENDED IS RIPSTOP POLYESTER CANVAS AND THE FLY IS RIPSTOP POLYESTER. Never store your Rooftop Tent away damp.
  • Page 9 IMPORTANT INFORMATION Ensure the Rooftop Tent is clean and dry before it is packed away. Store in a clean, dry space when the Rooftop tent is not attached to your vehicle. Do not clean with harsh chemicals, only use water and a soft cloth. The Travel Cover should always be used when driving.

  • Page 12: Warranty Information

    WARRANTY INFORMATION The warranty period for this awning is found on the packaging and full details are on the Kiwi Camping website - www.kiwicamping.co.nz. The original purchaser of this product is offered a warranty if during this time period the product fails due to a fault in either materials or workmanship. Service under this warranty is available by returning the product, with your proof of purchase, to where it was purchased.
