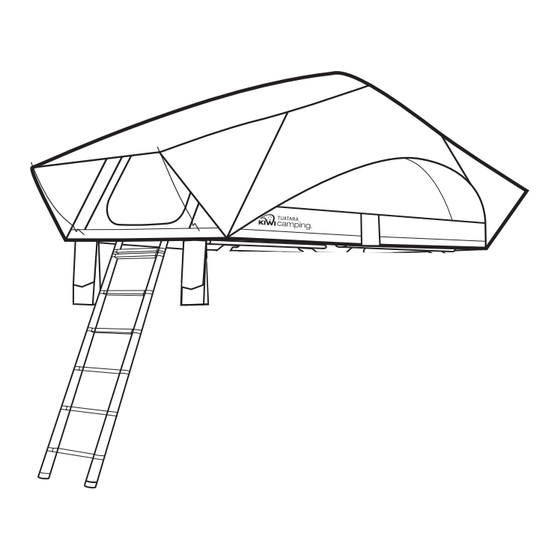

Kiwi Camping TUATARA SUMMIT Manual

Rooftop tent
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

SAFETY INSTRUCTIONS
• Regularly check nuts and bolts attaching the Rooftop Tent to your vehicle to make sure
fastenings are tight and in good condition.
• Remove the Rooftop Tent before using a commercial car wash.
• Do not use Rooftop Tent or storage bag to hoist, lift or support yourself.
• It is important when mounting to a vehicle, that all the mounting brackets supplied are
adequately spaced to support the weight of the Rooftop Tent.
• Products applied to a vehicle roof will alter vehicle handling. The manufacturer disclaims
all responsibility in relation to accidents due to improper use, incorrect maintenance, or
negligence in maintaining fastening hardware. It is recommended to not exceed 100km/h.
• This Rooftop Tent will increase the height of your vehicle. Measure the overall height and be
aware of height restrictions in car park buildings etc.
• If pitching in windy conditions it is advised to find a less exposed location. Park with the back
of the tent facing into the wind. Be aware of dropping branches and other potential hazards.
Collapse the tent in strong winds.
• Never drive with roof tent erected.
• Do not put anything on the top of the tent when it is installed.
• The load-bearing of the frame is no more than 300kg.

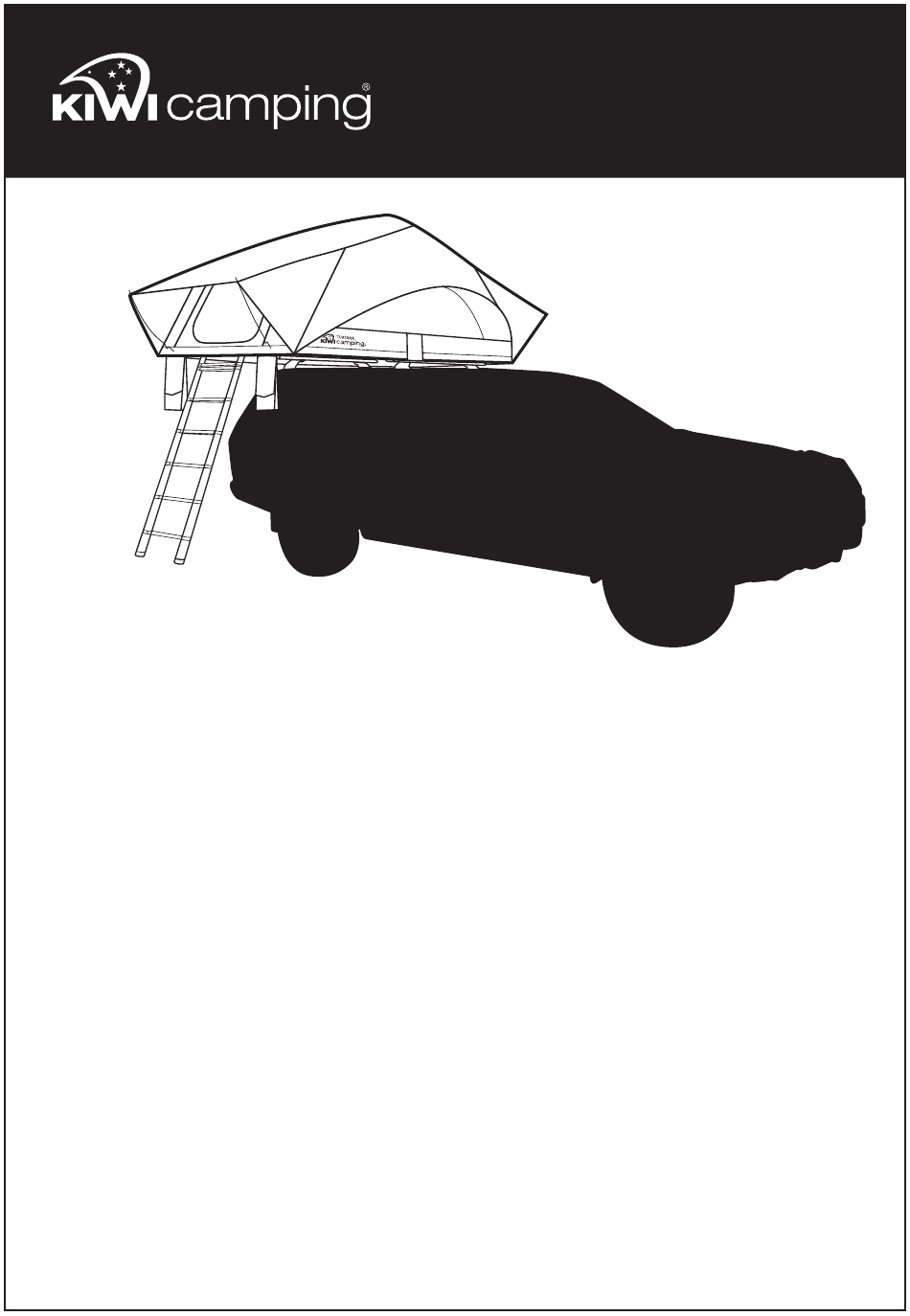

TUATARA SUMMIT
ROOFTOP TENT
Model No. KC077-058

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TUATARA SUMMIT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kiwi Camping TUATARA SUMMIT

Summary of Contents for Kiwi Camping TUATARA SUMMIT

  • Page 1 TUATARA SUMMIT ROOFTOP TENT Model No. KC077-058 SAFETY INSTRUCTIONS • Regularly check nuts and bolts attaching the Rooftop Tent to your vehicle to make sure fastenings are tight and in good condition. • Remove the Rooftop Tent before using a commercial car wash.

  • Page 2: Parts Included

    PARTS INCLUDED YOUR TUATARA SUMMIT ROOFTOP TENT INCLUDES: 1 x Rooftop Tent 2 x mounting rails 1 x ladder (includes 2 x ladder brackets, 2 x M8 x 20mm bolts, 2 x nuts, 4 x washers) 2 x storage bags...
  • Page 3 ROOFTOP TENT INSTALLATION The Tuatara Summit can be fitted to smaller vehicles as long as the fitted roof rack or crossbars support a dynamic weight load of 75kg or higher. We recommend using only permanent roof racks and crossbars. The distance between the car roof and the bottom of the roof rack should be no less than 3cm.
  • Page 4 Attach the travel cover by feeding the zipper through the track on the base (mounting rail) of the tent. Ensure the zipper cover is put through the mattress/hinge side of the tent. Close the Rooftop Tent and secure it with the compression straps.

  • Page 5: Pitching Instructions

    PITCHING INSTRUCTIONS Before opening your Tuatara Summit Rooftop Tent, ensure that all eight bolts are fastened tight so that the tent does not move when opening. Release the straps and unzip the Travel Cover. Remove towards the opening section. Secure the Travel Cover underneath the fold-out section of the Rooftop tent using the attached fastener.

  • Page 6: Packing Instructions

    Tension out the side windows by inserting each end of the shorter fibreglass poles into the corresponding pockets on the middle of the fly and window extension. Once inside the Rooftop Tent, undo the internal bungees that help to pull in the body when packing down. 10.

  • Page 7: Care Instructions

    CARE INSTRUCTIONS PLEASE READ ALL OF THE CARE INFORMATION AND INSTRUCTIONS INCLUDED WITH THIS ROOFTOP TENT BEFORE USING IT FOR THE FIRST TIME. THE BODY OF THE TUATARA SUMMIT IS RIPSTOP POLYESTER CANVAS AND THE FLY IS RIPSTOP POLYESTER. Never store your Rooftop Tent away damp. Should mildew spots appear, brush them off before they become attached.

  • Page 8: Warranty Information

    18. Do not leave children unattended in or around this Rooftop Tent. WARRANTY INFORMATION The warranty period for this awning is found on the packaging and full details are on the Kiwi Camping website - www.kiwicamping.co.nz. The original purchaser of this product is offered a warranty if during this time period the product fails due to a fault in either materials or workmanship. Service under this warranty is available by returning the product, with your proof of purchase, to where it was purchased.
