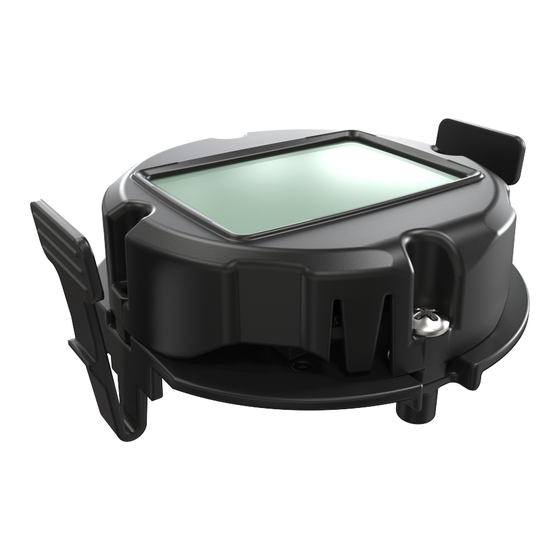

Level transmitter lcd display kit
Hide thumbs
Also See for Rosemount 3408:
- Reference manual (104 pages) ,
- Quick start manual (28 pages) ,
- Quick start manual (12 pages)
Related Manuals for Emerson Rosemount 3408
Summary of Contents for Emerson Rosemount 3408
- Page 1 Quick Start Guide 00825-0300-4418, Rev AB May 2023 Rosemount 3408 Level Transmitter ™ LCD Display Kit...
-
Page 2: About This Guide
Quick Start Guide May 2023 1 About this guide This guide provides instructions for retrofitting and replacing the LCD display on the Rosemount 3408 Level Transmitter. Refer to the Rosemount 3408 Reference Manual for instructions on how to set up the LCD display. -
Page 3: Product Recycling/Disposal
May 2023 Quick Start Guide WARNING Process leaks could result in death or serious injury. Ensure that the transmitter is handled carefully. If the process seal is damaged, gas might escape from the tank. WARNING Physical access Unauthorized personnel may potentially cause significant damage to and/or misconfiguration of end users’... -
Page 4: Spare Part Numbers
Graphical LCD upgrade kit (with display cover) 03408-5000-0004 Graphical LCD with Bluetooth connectivity (with display cover) 1.4 Bluetooth UID and key ® You can find the UID and key on the display unit and on the attached paper tag. Figure 1-2: Bluetooth Security Information Emerson.com/Rosemount... - Page 5 May 2023 Quick Start Guide 2 Install the new LCD display Prerequisites Make sure that the device is not exposed to moisture or dust. Procedure Disconnect the power supply. 2. Turn the jam screw clockwise until it is completely threaded into the housing. H2.5 mm 3.
- Page 6 Verify the cover jam screw is completely threaded into the housing. H2.5 mm b) Attach and tighten the cover. Note Make sure the cover is fully engaged. There should be no gap between the cover and the housing. Emerson.com/Rosemount...
- Page 7 May 2023 Quick Start Guide c) Turn the jam screw counterclockwise until it contacts the cover. Note Required for explosion-proof/flameproof installations only. H2.5 mm d) Turn the jam screw an additional ½ turn counterclockwise to secure the cover. 7. Connect the power supply. Quick Start Guide...
- Page 8 1. Check the FCC ID and IC numbers on the main label. 2. Pick the sticker with the same FCC ID and IC numbers, but with an additional "B" at the end. 3. Affix the sticker on the main label over the original FCC ID, IC, and HVIN numbers. Emerson.com/Rosemount...
- Page 9 May 2023 Quick Start Guide Quick Start Guide...
- Page 10 Quick Start Guide May 2023 Emerson.com/Rosemount...
- Page 11 May 2023 Quick Start Guide Quick Start Guide...
- Page 12 2023 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
