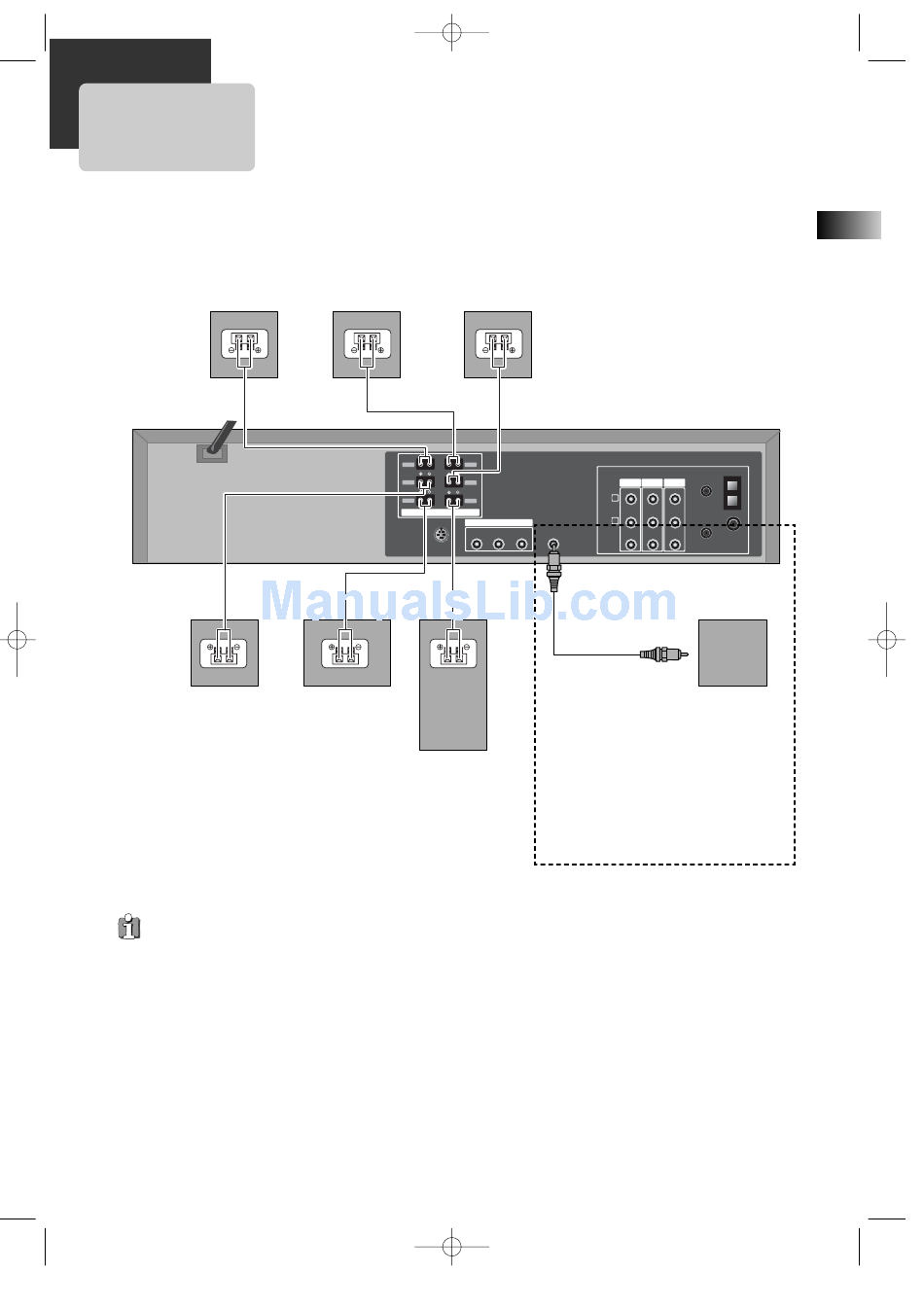

Speaker system connection

Connect the speakers using the supplied speaker cords by matching the colors of the terminals and those of the
cords. To obtain the best possible surround sound, adjust the speaker parameters (distance, level, etc.)
Front speaker
Rear speaker
(right surround)
• Be sure to match the speaker cord to the appropriate terminal on the component: + to + and – to –. If the cords are
reversed, the sound will be distorted and will lack bass.
• If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on
the speakers.
• Do not disassemble the front cover of supplied speaker.
Page 13
Front speaker
(right)
(left)
SPEAKER
Center speaker
Rear speaker
(left surround)
FRONT-R FRONT-L
REAR-R
REAR-L
CENTER WOOFER
IMPEDANCE USE 6Ω (WOOFER USE 6Ω)
COMPONENT OUT
WOOFER OUT
S-VIDEO OUT Pr Pb Y
Optional:
You can connect an active subwoofer
to the WOOFER OUT connector using a
monaural audio cord (not supplied) to
Subwoofer
improve bass performance, especially
in a large room. When you connect an
active subwoofer, disconnect the
woofer from the WOOFER speaker
connector.
AM
ANT.IN
OUT IN 2 IN 1
R
AUDIO
RF.OUT
L
FM
VIDEO
Subwoofer
