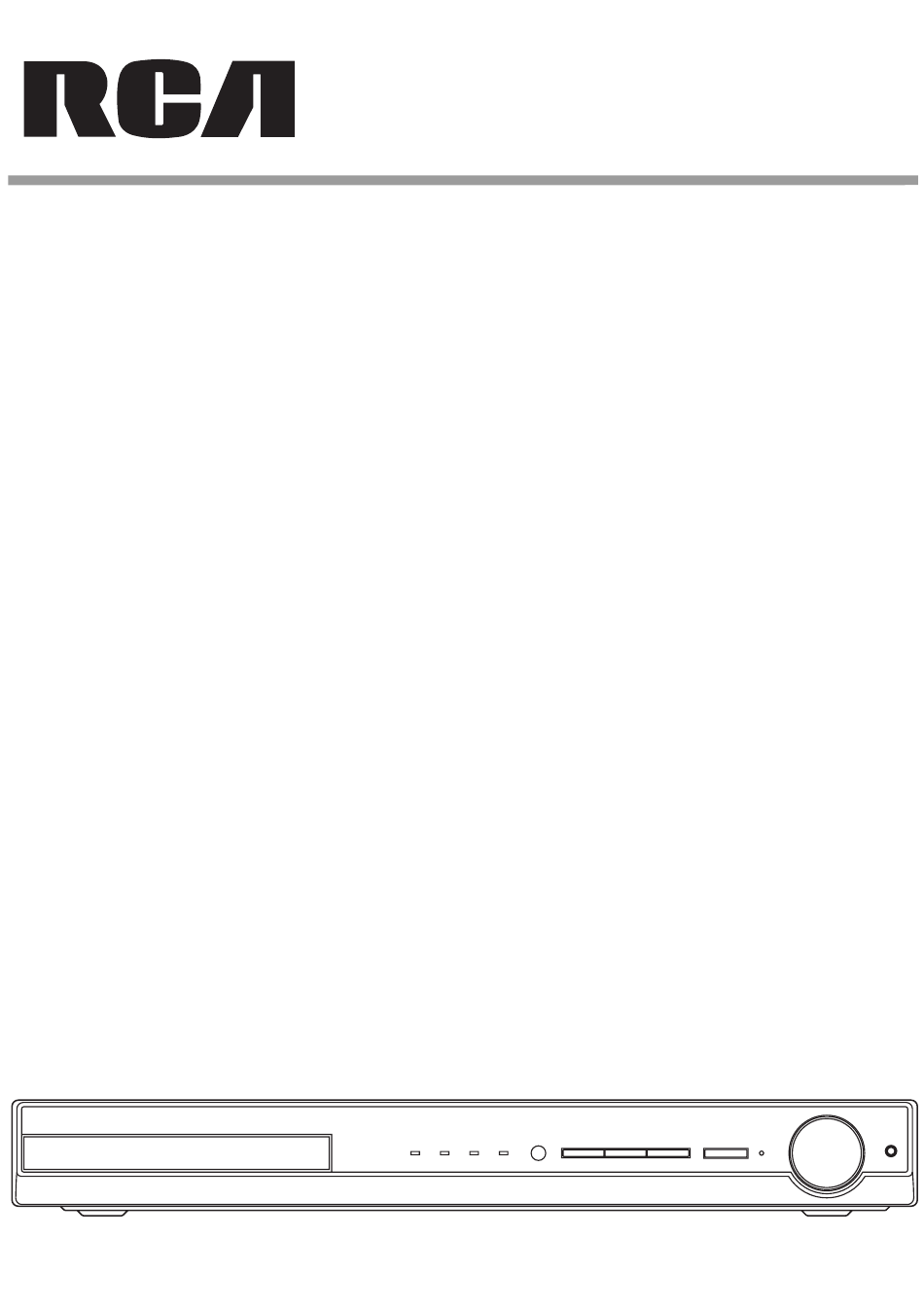

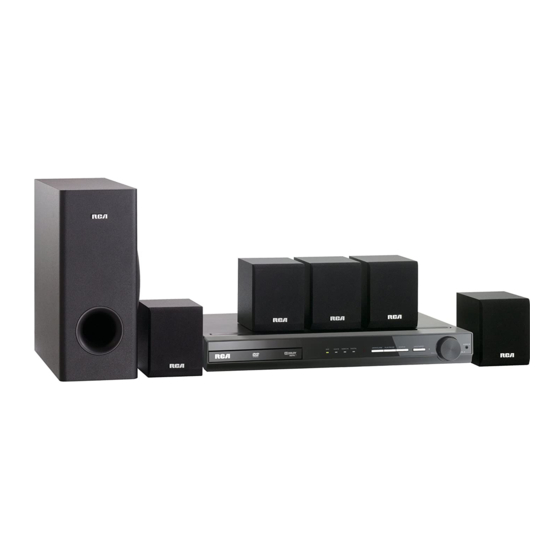

USER MANUAL
RTD3133H
It's important to read this instruction prior to using your new product for the fi rst time.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTD3133H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RCA RTD3133H

Summary of Contents for RCA RTD3133H

  • Page 1 USER MANUAL RTD3133H It's important to read this instruction prior to using your new product for the fi rst time.

  • Page 2: Fcc Information

    FCC Information Ventilation This device complies with part 15 of the FCC Rules. Operation is subject to the following two You must adequately ventilate the product. Make conditions: (1) This device may not cause harmful sure there is adequate space around the unit interference, and (2) this device must accept any to provide proper air fl ow for ventilation.

  • Page 3: Service Information

    Important Information THE LIGHTNING FLASH AND ARROWHEAD WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF “DANGEROUS VOLTAGE” INSIDE THE PRODUCT. THE EXCLAMATION POINT WITHIN THE TRIANGLE IS A WARNING SIGN ALERTING YOU OF IMPORTANT INSTRUCTIONS ACCOMPANYING THE PRODUCT. CAUTION: TO REDUCE THE RISK OF ELECTRIC RISK OF ELECTRIC SHOCK SHOCK, DO NOT REMOVE COVER (OR BACK).
  • Page 4 Important Information Important battery information CAUTION: • Do not mix diff erent types of batteries or new This product utilizes a laser. Use of controls or and old batteries. Do not use rechargeable adjustments or performance of procedures other batteries. than those specified may result in hazardous •...

  • Page 5: Important Safety Instructions

    Important Safety Instructions Additional safety information • Apparatus shall not be exposed to dripping or If your product operates on batteries, adhere to the splashing and no objects fi lled with liquids, such as following precautions: vases, shall be placed on the apparatus. A.
  • Page 6 Connections and Setup • Where the mains plug or an appliance coupler is used as a disconnect device, the disconnect device shall remain readily operable. • Other important use and cleaning information at the end of the booklet. Connecting to TV’s Analog Video Input •...
  • Page 7 Connections and Setup Using OPTICAL IN jack Getting sound from external sources 1. Connect the OPTICAL IN jack on the back of the unit such as TV to the OPTICAL OUT jack on VCR, TV, Set Top Box or Using AUX IN (ANALOG R/L) jacks other component.

  • Page 8: Connecting The Speakers

    Connections and Setup Connecting the speakers Speaker wires are color-coded to match the terminals. Connect the speaker wire from the back of each speaker to the corresponding color terminal at the back of the unit. Press down the tab to open the terminal and insert the wire.

  • Page 9: Positioning Speakers

    Connections and Setup Positioning speakers Front speaker placement For best results, follow the speaker placement below. Alignment Align the center speaker evenly with (A) or slightly behind (B) (the left and right speakers), but not ahead of them. Courtesy Dolby Laboratories 1.

  • Page 10: Better Surround Placement

    Connections and Setup No adjacent walls Better surround placement Surround speakers can go on stands facing each Location other to approximate sidewall mounting (A), or to If possible, place surround speakers to either side the sides or rear of the viewing area, aimed upwards; of the listening area, not behind it.

  • Page 11: Overview Of Controls

    Overview of Controls ON•OFF: Turns on/off the unit. DVD: Selects the DVD mode. DIGITAL: Selects the Optical Digital input (for listening to audio input from connected TV, VCR or SetTop BOX). AUDIO IN: Selects the Front Audio Input. AUX IN: Selects the Auxiliary input (for listening to DIGITAL audio input from connected TV, VCR or Set-...

  • Page 12: Playing Discs - Basic Functions

    Overview of Controls Playing Discs - Basic Functions Compatible discs Changes video output signals HDMI: (Auto, 480p, 720p, 1080i or 1080p). • DVD, DVD-R, DVD-RW, DVD+R, DVD+RW • CD, CD-R, CD-RW Using remote control to navigate through Compatible formats the on-screen menus •...

  • Page 13: Basic Playback Operations

    Basic Playback Operations Variable slow motion 1. Press SLOW button on the remote in play Notes mode. • When you press STOP, the unit stores the 2. Each time the SLOW button is pressed the point where playback was interrupted. If speed of slow-motion playback changes in the you press PLAY again, playback resumes following sequence:...

  • Page 14: Dvd Programmable Memory

    Basic Playback Operations DVD Programmable Memory Repeating a specifi c title/chapter (DVD) You can combine your favorite titles/chapters and While the disc is playing, press the REPEAT DISC play them in the order you determine. button on the remote control repeatedly to select 1.

  • Page 15: Playing Cds

    Playing CDs The Toolkit has the following play mode items: Make sure that a disc you want to play is compatible • Repeat (Off /Single/All): with this unit. Off : Resumes normal playback. 1. Press the OPEN/CLOSE button to open the disc Single: Repeats the current track/fi le.

  • Page 16: Playing Jpeg Files

    AUDIO IN/DIGITAL IN/AUX IN Playing JPEG Files JPEG fi les are image fi les. Make sure that they have TV, VCR or Set Top Box can be connected to AUX a resolution of less than 2 megapixels. IN/OPTICAL IN jacks at the back of the unit or 1.

  • Page 17: The Setup Menu

    The Setup Menu VIDEO SETUP To access the Setup Menu you must fi rst be in DVD Mode. It allows you to set video mode for the Aspect Ratio, There are four options in the main setup menu: View Mode, Video out and HDMI Resolution. Language, Video, Audio and Default.
  • Page 18 The Setup Menu View Mode AUDIO SETUP Fill: Fill the screen with decoded image. You can adapt your unit to other equipment and Original: Display image as it’s original size. access specifi c functions with the Audio Setup Auto Fit: Automatically fi t the decoded image menu.

  • Page 19: Additional Information

    The Setup Menu Additional Information Digital Output Troubleshooting Select the Digital Audio Output format that The unit does not switch on. matches your audio system’s capabilities. If your • Make sure it is plugged in. audio system supports Dolby Digital (surround •...
  • Page 20 Additional Information I can’t fi nd my fi le in the JPEG listing. • This unit is for domestic use only and must not be used for industrial purposes. • Make sure the fi le name is valid. • Total or partial copying of recordings protected The remote control does not work or works by copyright legislation, without the explicit only intermittently.
  • Page 21 Additional Information However, depending on the condition of the Compatible Formats CD-writer, computer and the disc used, you may In order to ensure playback, discs must conform fi nd that not all discs will play. When playing a with DVD or CD standards. This unit may not play CD-R disc, it is normal for the unit to take up to some recordings or fi...
  • Page 22 Additional Information Dimensions (H x W x D mm) : Sound Enhancement Systems Unit: 55 x 430 x 255 This receiver is equipped with several built-in Front Speakers: 105 x 85 x 85 sound enhancement systems. Center Speaker: 105 x 85 x 85 Rear Speakers: 105 x 85 x 85 Subwoofer: 285 x 130 x 245 Manufactured under license...

  • Page 23: Limited Warranty

    Limited Warranty AVC MULTIMEDIA ("AVC") makes the following limited warranty. These limited warranties extend to the original consumer purchaser and is limited to non-commercial user of the product. One Year Parts & Labor Warranty AVC products purchased in the United States are warranted to be free from defects in materials or workmanship for a period of one year from the date of their original retail purchase.
  • Page 24 Limited Warranty All warranties implied by state law, including the implied warranties of merchantability and fi tness for a particular purpose, are expressly limited to the duration of the limited warranties set forth above. With the exception of any warranties implied by state law as hereby limited, the foregoing warranty is exclusive and in lieu of all other warranties, guarantees, agreements and similar obligations of manufacturer or seller with respect to the repair or replacement of any parts.
