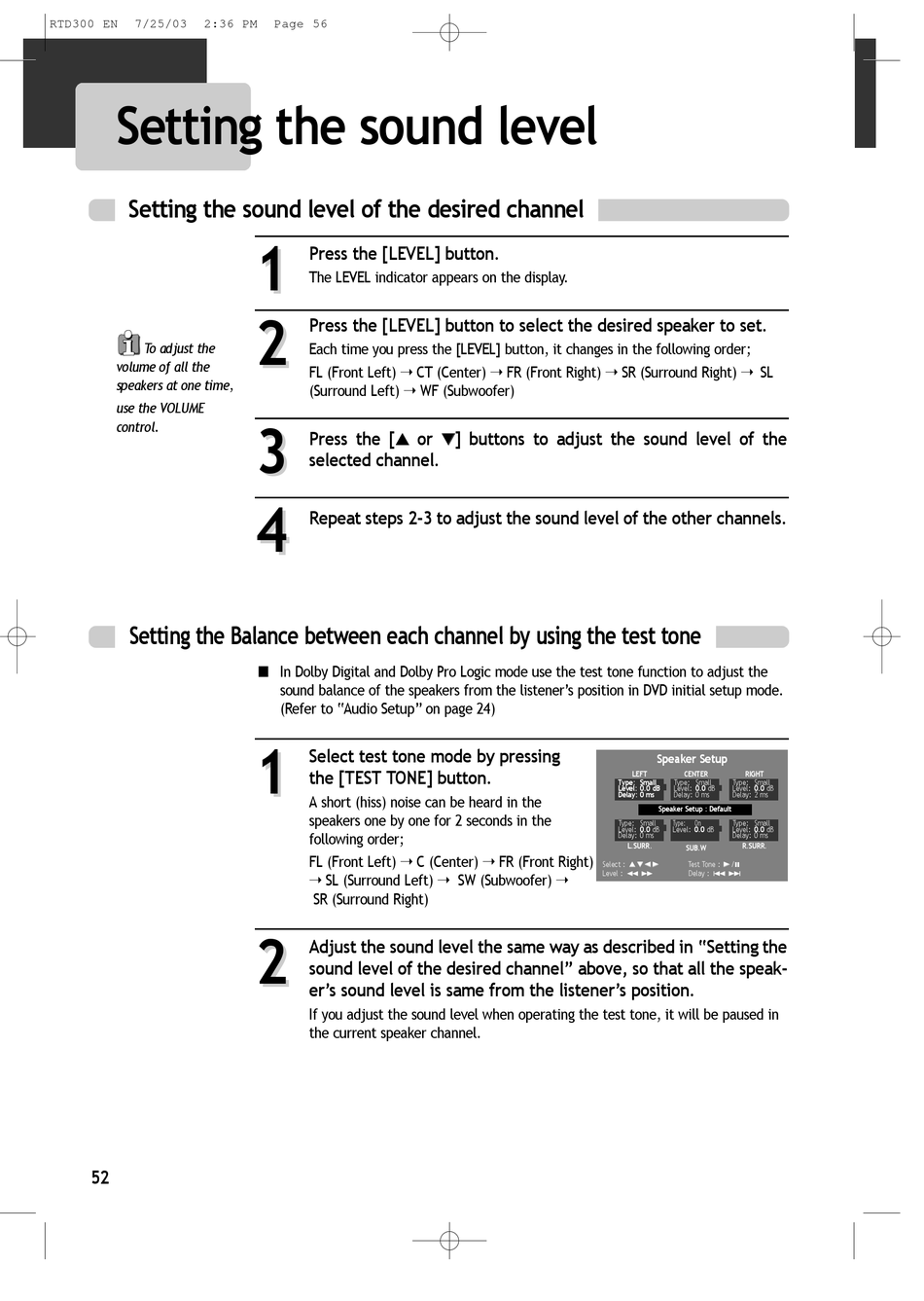

Setting the sound level

Setting the sound level of the desired channel
To adjust the
volume of all the
speakers at one time,
use the VOLUME
control.
Setting the Balance between each channel by using the test tone
52
Page 56
1
1
Press the [LEVEL] button.
The LEVEL indicator appears on the display.
2
2
Press the [LEVEL] button to select the desired speaker to set.
Each time you press the [LEVEL] button, it changes in the following order;
FL (Front Left) CT (Center)
(Surround Left) WF (Subwoofer)
3
3
Press the [5 5 or ∞ ∞ ] buttons to adjust the sound level of the
selected channel.
4
4
Repeat steps 2-3 to adjust the sound level of the other channels.
In Dolby Digital and Dolby Pro Logic mode use the test tone function to adjust the
sound balance of the speakers from the listener's position in DVD initial setup mode.
(Refer to "Audio Setup" on page 24)
1
1
Select test tone mode by pressing
the [TEST TONE] button.
A short (hiss) noise can be heard in the
speakers one by one for 2 seconds in the
following order;
FL (Front Left) C (Center)
SL (Surround Left)
SR (Surround Right)
2
2
Adjust the sound level the same way as described in "Setting the
sound level of the desired channel" above, so that all the speak-
er's sound level is same from the listener's position.
If you adjust the sound level when operating the test tone, it will be paused in
the current speaker channel.
FR (Front Right) SR (Surround Right)
Type: Small
Level: 0.0 dB
Delay: 0 ms
Type: Small
Level: 0.0 dB
Delay: 0 ms
L.SURR.
FR (Front Right)
Select : 5 5 ∞ ∞ 2 2 3 3
Level : 1 ¡
SW (Subwoofer)
SL
Speaker Setup
LEFT CENTER RIGHT
Type: Small Type: Small
Level: 0.0 dB Level: 0.0 dB
Delay: 0 ms Delay: 2 ms
Speaker Setup : Default
Type: On Type: Small
Level: 0.0 dB Level: 0.0 dB
Delay: 0 ms
R.SURR.
SUB.W
Test Tone : 3 3 /8
Delay : 4 ¢
