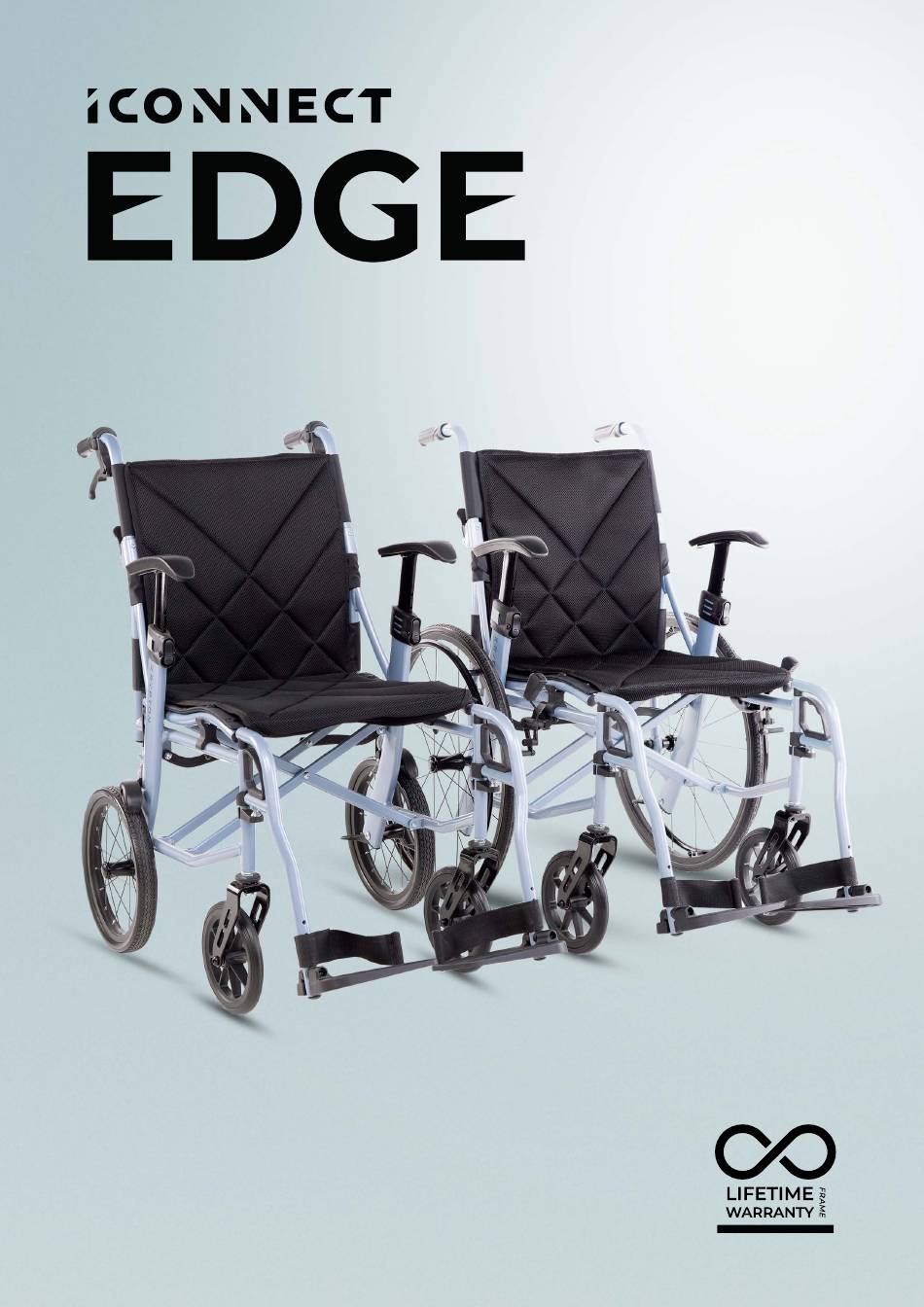

- Page 1 SELF PROPELLED & TRANSIT USER MANUAL P R OD U CT CO D E S: WC01010023 | WC02010017...
-
Page 2: Table Of Contents
Dear Customer, 2. SAFETY REGULATIONS 2.1 GENERAL SAFETY GUIDELINES Congratulations on purchasing your iCONNECT EDGE Wheelchair. This product has been 2.2 WARNINGS FOR SAFE USE carefully designed to provide you with maximum comfort whilst increasing independence in your daily life. -
Page 3: Safety Regulations
When using the product for the first time, it is recommended to practice injury to the user. using the wheelchair on a flat surface. When used correctly, this wheelchair is a safe and stable product. CareCo is not responsible • Do not exceed the maximum user weight indicated on the frame label. -
Page 4: Product Components
3. PRODUCT COMPONENTS 4. USER INSTRUCTIONS 4.1 GETTING IN AND OUT OF THE WHEELCHAIR Getting into your wheelchair: Your wheelchair is equipped with various parts and components. Before proceeding with this user manual, you should familiarise yourself with the various elements that make up your Before getting into the wheelchair, ensure the following points are met. -
Page 5: Bending Or Reaching
4.2 BENDING OR REACHING 5. OPERATING THE WHEELCHAIR 5.1 FOLDING AND UNFOLDING THE WHEELCHAIR To reach an object while sitting in your wheelchair, get as close to the object as possible, make sure the front castors are facing forward and the brakes are applied to prevent you from falling out of your wheelchair Unfolding To unfold the wheelchair, press the seat tubes on both sides of the seat cover to open the... -
Page 6: Leg Rests
5.3 ADJUSTING THE FOOTREST HEIGHT WARNING! Take care of trapping hazards or pinch points when adjusting any settings or folding To adjust the height of the footplate, remove and unfolding the product the leg rest and use an Allen key to adjust the height from one of five height adjustment holes. -
Page 7: Armrests
5.5 ARMRESTS WARNING! Usage of the handbrake whilst the wheelchair is moving may cause injury to the Adjust the armrest height by opening the armrest user. bracket clasp (A). Press and hold the adjustment button (B) whilst simultaneously raising or lowering the armrest. When the handle is at the desired height, release the button. -
Page 8: Quick Release Wheels (Self Propelled)
5.8 QUICK RELEASE WHEELS (SELF-PROPELLED) 6. PRODUCT SPECIFICATIONS 6.1 SELF-PROPELLED The Self-Propelled version of the wheelchair is equipped with quick-release rear wheels. Seat Width 18" Removing the Quick-Release Rear Wheels Height (mm) To remove the rear wheels from the frame, press the button in the middle of the wheel and Length (mm) 1100 pull away from the wheelchair frame as shown. -
Page 9: Transit
7. CARE AND MAINTENANCE 6.2 TRANSIT Seat Width 18" There are many things the user can do to keep the wheelchair in optimal condition. By regularly checking the wheelchair and performing simple maintenance, the user can extend Height (mm) the life of the wheelchair and make it more comfortable to use. Length (mm) 1020 Preventative maintenance is very important. -
Page 10: Troubleshooting
If a component requires repair or replacement due to a specific manufacturing or material Problems that could occur when using the wheelchair are listed below. If the user defect within its warranty period, it will be repaired or replaced free of charge by CareCo. experiences an issue not listed, please contact CareCo The wheelchair is pulling to one side •... -
Page 11: Identification
5. Reattach the side panel rear Velcro. or disposal facility. (Local disposal & recycling regulations may apply) 3. Insert the seat belt eyelet between the 6. Repeat on the other side. Alternatively, contact CareCo for advice on disposal. backrest canvas and the frame. Materials: Wheelchair Packaging:... -
Page 12: Using A Seat Belt
NOTES 11.2 USING A SEAT BELT How to fasten the seat belt: How to release the seat belt: Firmly insert the male buckle into the female Press the exposed side of the female buckle buckle and push toward the centre while separating the male and female buckles No more than the palm of the hand should be able to be inserted between the seat belt and the user. - Page 13 CareCo (UK) Limited, 1 Turing Court, Self-propelled Wheelchair Great Notley, Braintree, CM77 7AT, England Transit Wheelchair...
