Summary of Contents for CareCo iCONNECT ZORA

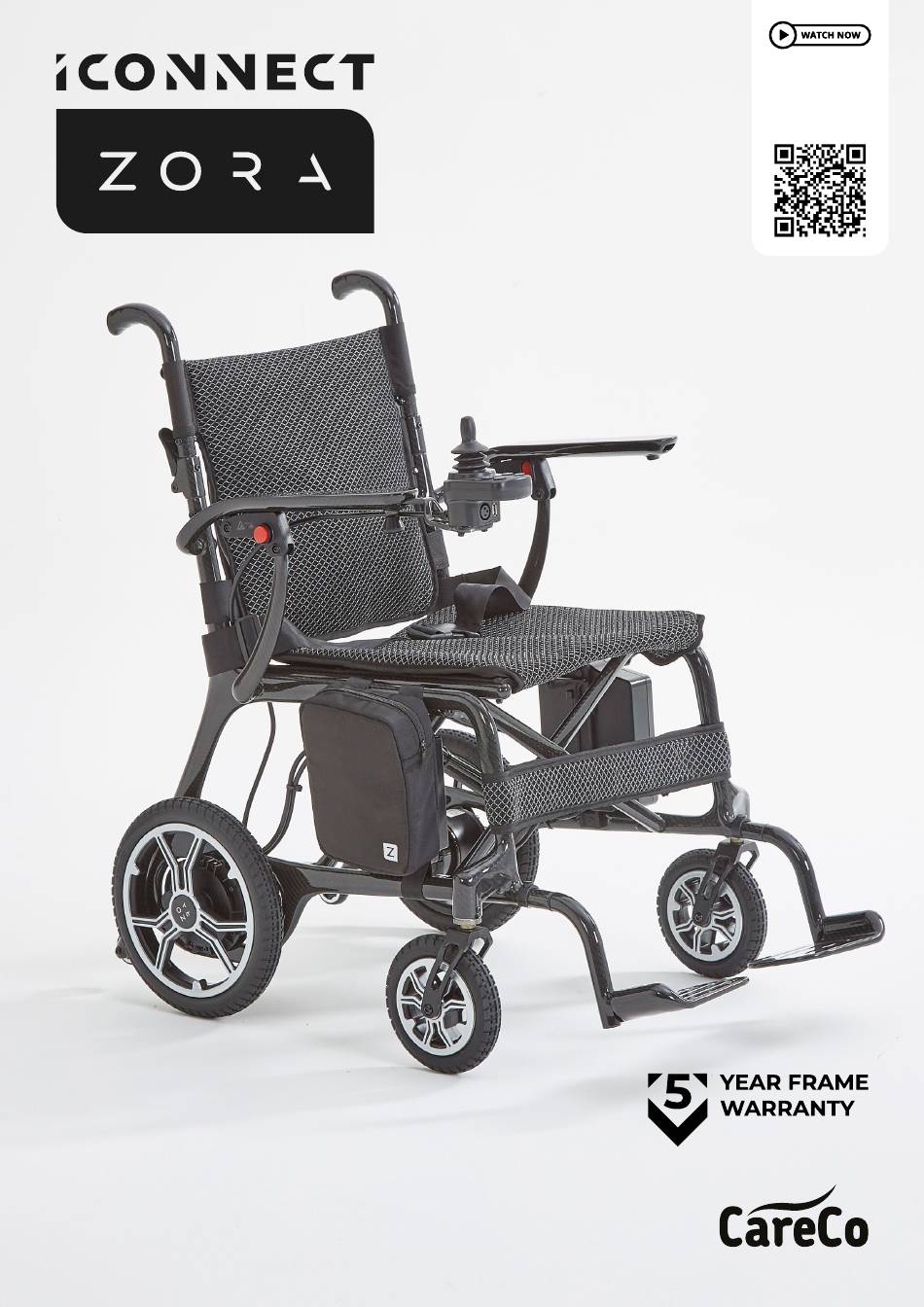

- Page 1 Scan me on your phone camera to watch our assembly video. User Manual PC02010006 P R O D U C T C O D E :...
- Page 2 PRODUCT CODE INTRODUCING YOUR ICONNECT ZORA POWERCHAIR The iCONNECT Zora has been designed to provide a comfortable and safe solution for users who have difficulty in walking for extended periods of time. Due to CareCo’s commitment to continuous product improvement, product information and designs are subject to change without notice.
- Page 3 Operate the powerchair at a lower speed before gradually increasing to a higher speed. If any additional assembly, disassembly and/or operation assistance is required, please contact CareCo. Keep this user manual is in a safe place for future reference. KEY DEFINITIONS...
- Page 4 PC02010006 PRODUCT CODE CONTENTS GETTING STARTED CARTON CONTENTS PRODUCT COMPONENTS SETTING UP YOUR ICONNECT ZORA POWERCHAIR HOW TO USE YOUR POWERCHAIR USER INSTRUCTIONS JOYSTICK CONTROLS ARMRESTS SAFETY BELT STORAGE BAG FOOTRESTS FOOTPLATE POWERCHAIR MODES YOUR POWERCHAIR BATTERY INSTALLATION & REMOVAL...
- Page 5 OPTIONAL EXTRAS ADDITIONAL BATTERY ATTENDANT JOYSTICK BRACKET ACCESSORY PACK LOOKING AFTER YOUR POWERCHAIR PRELIMINARY CHECKS CLEANING MAINTENANCE MAINTENANCE SCHEDULE REPAIRS OTHER ADJUSTMENTS TROUBLESHOOTING WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS ELECTROMAGNETIC INTERFERENCE (EMI) PROGRAMMING PRODUCT RE-ISSUING RECYCLING & DISPOSAL INTENDED USE PRODUCT IDENTIFICATION GENERAL WARNINGS EXPECTED LIFETIME WARRANTY...
- Page 6 Zora Powerchair Charger Footrest Set Joystick Contact CareCo immediately if any of the listed contents are missing. We strongly recommend that you keep the box and internal packaging for the duration of your warranty period. PRODUCT COMPONENTS 1. BACKREST 2.
- Page 7 SETTING UP YOUR POWERCHAIR 1. Remove all powerchair components from 2. Press downwards on the seat base the outer packaging and place them onto tubes to open the powerchair. a level surface. 3. Lift the backrest handles upwards. 4. Insert the battery into the side frame holder. An audible “click”...
- Page 8 PC02010006 PRODUCT CODE 5. Connect the joystick power cable, then 6. Insert the footrest tube(s) into the insert the joystick bracket into the frame, then secure using the E-Clip(s) powerchair armrest holder. provided. Secure using the armrest bolt provided. 7. Charge the powerchair for 4-6 hours before first use.
- Page 9 HOW TO USE YOUR POWERCHAIR USER INSTRUCTIONS TRANSFERRING TO & FROM Always ensure the powerchair is switched [OFF] and in [DRIVE] mode before getting in/out of the powerchair. METHOD 1 TRANSFER TO Position your body as close to the powerchair as possible.
- Page 10 PC02010006 PRODUCT CODE GRADIENTS Ascending Gradients Tilt your upper body forward when travelling up gradients for increased stability. Descending Gradients Tilt your upper body back when travelling down gradients for increased stability. The maximum safe slope of incline is 6°. THRESHOLDS &...
- Page 11 STAIRS, ESCALATORS AND LIFTS The powerchair is not designed to travel up/down stairs and escalators. Use a lift whenever possible DOORS & GATES Determine whether the door/gate opens towards or away from the user. Reach for the handle and carefully accelerate forwards or backwards depending on the door/ gate orientation.
- Page 12 PC02010006 PRODUCT CODE JOYSTICK CONTROLS Speed Settings BATTERY ON/OFF GAUGE BUTTON SPEED 0-6km/h SPEED INCREASE DECREASE HORN SPEED 0-5.5km/h INDICATOR REVERSE REVERSE HORN [ON] 0-5km/h HORN [OFF] 0-4.5km/h JOYSTICK 0-4km/h ON/OFF BUTTON SPEED INDICATOR Push to activate or deactivate the powerchair. Displays the powerchair’s speed setting.
- Page 13 JOYSTICK The joystick is used to control the powerchair’s movement including its speed and direction (forwards, backwards, left, and right). The further the user pushes the joystick from the central position, the faster the powerchair moves. When the user releases the joystick, it will return to the centre and the brake will automatically engage.
- Page 14 PC02010006 PRODUCT CODE ARMRESTS The powerchair armrests can be folded upwards to assist the user in transferring, transporting and when sat at a desk or table. 1. Push the red button to unlock the armrest 2. Lift the armrest upwards. latch.
- Page 15 STORAGE BAG Transport small items in the side frame storage bag. FOOTRESTS INSTALLING 1. Insert the footrest tube(s) into the frame. 1. Remove the C-Clip(s) 2. Secure the footrest(s) using the c-clip(s). 2. Remove the footrest(s) from the frame.
- Page 16 PC02010006 PRODUCT CODE REMOVAL 1. Remove the C-clip from the frame. 2. Remove the footrest from the frame. Repeat on the other side. FOOTPLATE Lift or lower the footplate.
- Page 17 POWERCHAIR MODES DRIVE MODE FREEWHEEL MODE (ELECTRONIC ASSISTED BRAKING) Pull the red lever backwards to engage the Freewheel Mode. Push the red lever(s) forwards to engage Drive Mode. (The powerchair will be able to be pushed manually). (The powerchair will not be able to be pushed manually).
- Page 18 PC02010006 PRODUCT CODE YOUR POWERCHAIR BATTERY BATTERY INSTALLATION & REMOVAL INSTALLING REMOVING Insert the battery into the side frame holder. Press and hold the battery release button whilst lifting the battery. An audible “click” will confirm the battery is secure. The battery will release from the frame holder.
- Page 19 CHARGING YOUR POWERCHAIR Your iCONNECT Zora battery can be charged on, or away from the powerchair if required. Ensure the battery switch is in the [ON] position before charging. HOW TO CHARGE YOUR POWERCHAIR (VIA JOYSTICK) 1. Connect the charger’s 3-pin output to the socket on the underside of the joystick.
- Page 20 PC02010006 PRODUCT CODE HOW TO CHARGE YOUR POWERCHAIR (VIA BATTERY) 1. Remove the battery from the powerchair frame following the instructions within this user manual. 2. Connect the charger’s 3-pin output to the socket on the battery. 3. Connect the outlet plug to a wall socket. 4.
- Page 21 CHARGER INFORMATION The battery charger is fitted with a smart LED indicator that indicates when the battery is charging and when charging is complete. LED Indicator Charging Status CHARGER IS [ON] AMBER CHARGING GREEN CHARGED WARNING! Do not use the supplied charger with any other electrical device. Only charge the powerchair with the supplied charger or an official replacement.
- Page 22 PRODUCT CODE FOLDING YOUR POWERCHAIR, TRANSPORTATION AND STORAGE FOLDING INSTRUCTIONS Your iCONNECT Zora can be folded to make transportation and storage easier. WARNING! Ensure the powerchair is switched [OFF] and in [DRIVE] mode before folding and/or transporting. 1. Fold the footplates upwards.
- Page 23 TRANSPORTATION LAND TRANSPORT Securely stow the folded/disassembled components in the boot of a vehicle. Ensure any adjustable parts are properly secured before transport to avoid transit damage. AIR TRANSPORT This powerchair is suitable for air transport. Prior to your journey, contact your airline in advance to confirm their flight-specific requirements.
- Page 24 PC02010006 PRODUCT CODE COMFORT ADJUSTMENTS JOYSTICK POSITION 1. Loosen the securing knob by rotating it anticlockwise 2. Move the joystick outwards/inwards until it is at a suitable and comfortable angle. 3. Tighten the securing knob by rotating it clockwise. OPTIONAL EXTRAS ADDITIONAL BATTERY Store an additional back-up battery in the powerchair’s side bag.
- Page 25 ATTENDANT JOYSTICK BRACKET Take control with the Attendant Joystick Bracket. ACCESSORY PACK Accessory Packs can be purchased from CareCo.
- Page 26 PC02010006 PRODUCT CODE LOOKING AFTER YOUR POWERCHAIR PRELIMINARY CHECKS • Ensure the powerchair is in [DRIVE] mode before setting off. • Ensure the powerchair is switched [OFF] before getting in or out. • Check tyres for wear • Check all fixings are secure CLEANING Regular use of the product will accumulate dirt and debris over time.
- Page 27 REPAIRS Certain powerchair components can be repaired by the user with guidance provided by CareCo. Other components can only be repaired/replaced by a service technician. If for any reason the powerchair requires repair due to a defect, contact CareCo immediately.
- Page 28 PC02010006 PRODUCT CODE OTHER ADJUSTMENTS HALF-FOLDING BACKREST PIN Difficulty Level Moderate High Tools Required 3mm Allen Key x1 8mm Spanner x1 The user can adjust the half-folding backrest pin with simple household tools. 1. Insert the Allen key into the front of backrest pin (A) 2.
- Page 29 Check for any loose connections between the joystick & controller and secure if required. 2 + 1 The RHS Motor and/or its associated wiring has a Contact CareCo fault. 2 + 2 The RHS Brake and/or its associated wiring has a Contact CareCo fault.
- Page 30 PC02010006 PRODUCT CODE WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS 900MM OVERALL LENGTH (MM) 580MM OVERALL WIDTH (MM) 860MM OVERALL HEIGHT (MM) 720MM FOLDED LENGTH (MM) 295MM FOLDED WIDTH (MM) 685MM FOLDED HEIGHT (MM) 6.5INCHES FRONT WHEEL DIAMETER (IN) 10.6INCHES REAR WHEEL DIAMETER (IN) 13KG TOTAL WEIGHT INCLUDING BATTERIES (KG) 2.4KG...
- Page 31 ELECTROMAGNETIC INTERFERENCE (EMI) Powerchairs and mobility scooters may be susceptible to electromagnetic interference (EMI). Electromagnetic energy (EM) is emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. The interference (from radio wave sources) can cause the powerchair/mobility scooter to release its brakes, move by itself, or move in unintended directions.
- Page 32 Electrical and Electronic Equipment policies (W.E.E.E). For battery disposal, users should follow local disposal/recycling regulations. Contact CareCo if further advice is needed regarding recycling & disposal. INTENDED USE This product is intended for users who experience difficulty in walking and/or have reduced mobility.
- Page 33 GENERAL WARNINGS • Powerchair users should take appropriate safety measures and obey local pedestrian traffic rules. CareCo are not responsible for personal injury and/or product damage caused by improper use • Use safety equipment such as reflectors, reflective clothing, and lighting when in low lit areas.
- Page 34 PC02010006 PRODUCT CODE EXPECTED LIFETIME The Expected Lifetime is the estimated period of time for which the powerchair is expected to function according to its intended use. Various items such as weight capacity, user behaviour, external conditions and intensity of use can affect the expected lifetime.
- Page 35 WARRANTY If a component requires repair or replacement due to a specific manufacturing or material defect within its warranty period, it will be repaired or replaced free of charge by CareCo. • FRAME: 5-YEAR LIMITED WARRANTY • ELECTRONIC COMPONENTS: 1-YEAR LIMITED WARRANTY •...
- Page 36 CareCo (UK) Limited, 1 Turing Court, Great Notley, Braintree, CM77 7AT, England 24 04 01...
