5.3 Default Jumper Settings
Figure 3 shows the jumper locations on the EVM board and the respective factory default conditions for
each.
There are four jumpers on the ADS794xEVM board. These jumpers are used to set the CS signal entry
pin (J1), select the digital logic level (J3), select the reference (J2), and to establish the input signal range
type (J6). The default parameters are:
• The CS signal entry pin is P1.7 (J1: 2-3).
• The logic level is 3.3 V (J3: 2-3).
• The onboard 4.096 V is selected as the reference voltage (J1: 1-2).
• Analog input range is 0 V to V
6 ADS794xEVM-PDK: Software Installation
This section presents the steps required to the install the software.
software to acquire data.
Complete the following steps to install the software:
Step 1. Install the ADCPro software (if not already installed) on a PC.
Step 2. Install the ADS794xEVM-PDK EVM plug-in software.
Step 3. Set up the ADS794xEVM-PDK hardware.
Step 4. Power up the ADS794xEVM-PDK.
Step 5. Connect the ADS794xEVM-PDK to the computer with a USB cable.
Step 6. Complete the USB driver installation process.
Each task is described in the subsequent sections of this document.
10
ADS794xEVM and ADS794xEVM-PDK

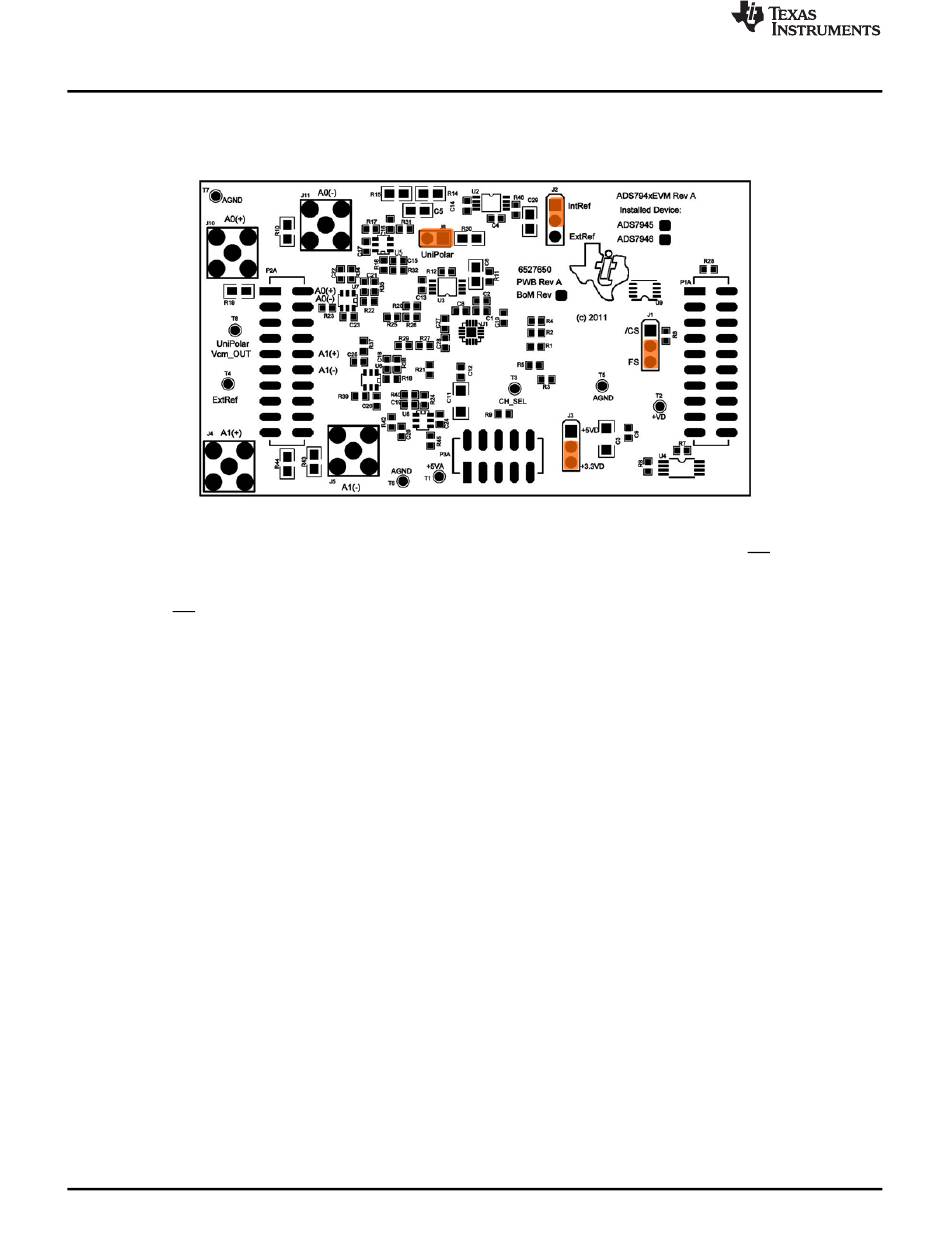

Figure 3. ADS794xEVM Default Jumper Locations
(4.096 V) with dc-coupled signals (J6: closed)
REF
