1.1

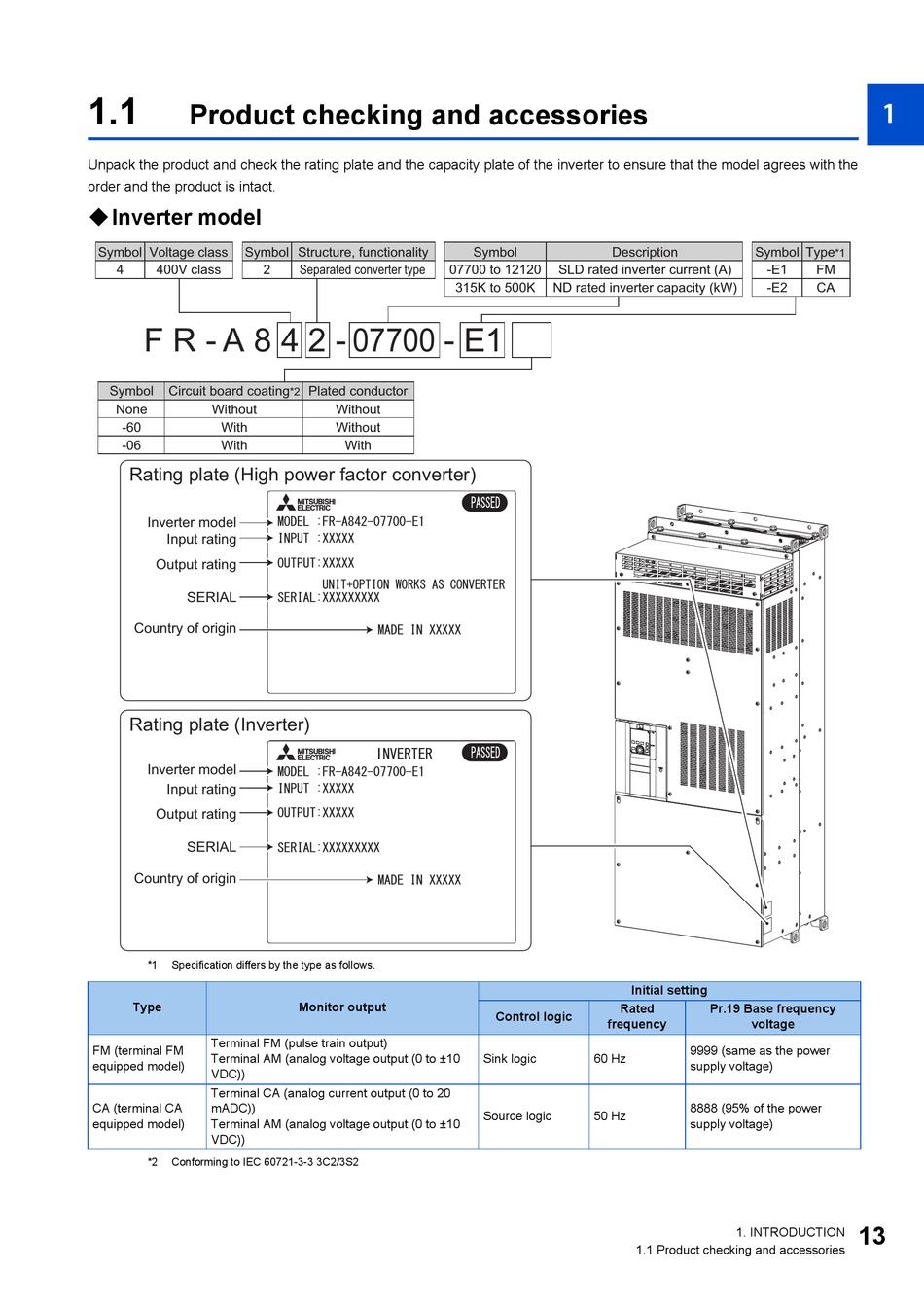

Product checking and accessories

Unpack the product and check the rating plate and the capacity plate of the inverter to ensure that the model agrees with the
order and the product is intact.
 Inverter model
Symbol Voltage class Symbol Structure, functionality
4 400V class
F R - A 8 4 2 - 07700 - E1
Symbol Circuit board coating
None Without
-60 With
-06 With
Rating plate (High power factor converter)
Inverter model
Input rating
Output rating
SERIAL
Country of origin
Rating plate (Inverter)
Inverter model
Input rating
Output rating
SERIAL
Country of origin
*1 Specification differs by the type as follows.
Type
Terminal FM (pulse train output)
FM (terminal FM
Terminal AM (analog voltage output (0 to ±10
equipped model)
VDC))
Terminal CA (analog current output (0 to 20
CA (terminal CA mADC))
equipped model) Terminal AM (analog voltage output (0 to ±10
VDC))
*2 Conforming to IEC 60721-3-3 3C2/3S2
2 Separated converter type
*2
Without
Without
With
Monitor output
Symbol Description
07700 to 12120 SLD rated inverter current (A)
315K to 500K ND rated inverter capacity (kW)
Rated
Control logic
frequency
Sink logic 60 Hz
Source logic 50 Hz
Symbol Type
-E1
-E2
Initial setting
Pr.19 Base frequency
voltage
9999 (same as the power
supply voltage)
8888 (95% of the power
supply voltage)
