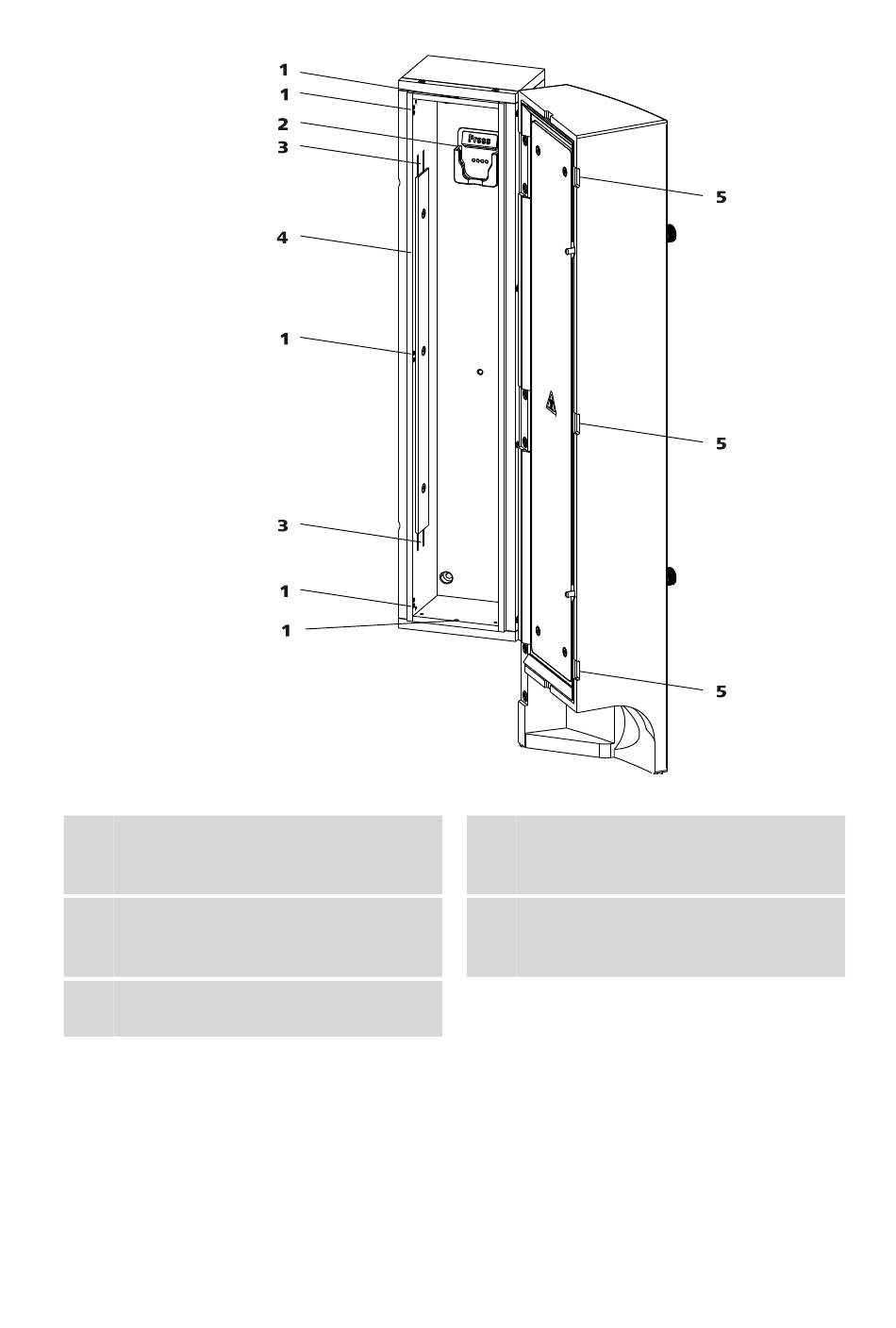

Figure 16 Column Oven - Metrohm 930 Compact IC Flex Manual

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
1 Openings
For feeding through the capillaries.
3 Preheating grooves
For threading in the capillary to be temp-
erature-conditioned.
5
Recesses
Prevent the capillaries from being pinched.
930 Compact IC Flex Oven/SeS/PP (2.930.2500)
Figure 16 Column oven
2 Column holder
For hanging the separation column (iCol-
umn). With column recognition.
4 Holder plate
For securing the capillary in place.
