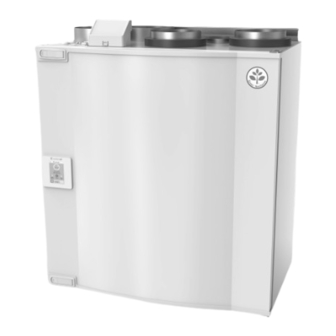

SystemAir SAVE VTR 300/B Installation Manual

Hide thumbs Also See for SAVE VTR 300/B:
Table of Contents

Advertisement

Quick Links

Download this manual
SAVE VTR 300/B
Service & Accessories Installation Manual
GB
Document in original language | · v01

Advertisement

Table of Contents
loading

Related Manuals for SystemAir SAVE VTR 300/B

Summary of Contents for SystemAir SAVE VTR 300/B

  • Page 1 SAVE VTR 300/B Service & Accessories Installation Manual Document in original language | · v01...
  • Page 2 This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Systemair is not liable or bound by the warranty if these instructions are not adhered to during installation or service. | v01...

  • Page 3: Table Of Contents

    Contents Overview ............1 Internal components ......29 6.2.1 Component descriptions .... 30 Warranty ..........1 Electrical connections ......31 Type label..........1 6.3.1 Main board layout ....31 Disposal and recycling ......1 6.3.2 External connections Important Safety Information ......1 (Connection board)....33 Intended Use.........2 Troubleshooting ........

  • Page 5: Overview

    For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re- port. Systemair will require these in the case of a warranty claim. Type label Before calling your service representative, make a note of the specification and production number from the type label, which can be found on the side of the units, next to the external connections.

  • Page 6: Intended Use

    | Important Safety Information • Do not allow children to play with the device. Intended Use • Abide by the system-related conditions and requirements of the system manufacturer or plant constructor. • Keep all the warning signs on the device and in a legible condition. •...

  • Page 7: Declaration Of Conformity

    Heat recovery ventilation unit: SAVE VTR 300/B (The declaration applies only to product in the condition it was delivered in and installed in the facility in accordance with the included installation instructions. The insurance does not cover components that are added or actions carried out subsequently on the product).

  • Page 8: System Curves

    | System curves System curves Every change in the pressure of the ventilation system, will result in a different airflow. Each curve shows a different airflow level setting: 1. 16% (MINIMUM LEVEL) 2. 20% (LOW LEVEL) 3. 50% (NORMAL LEVEL) 4.

  • Page 9: Technical Data

    Technical data | Technical data Dimensions and Weight, L model Fig. 2 Dimensions of left hand unit * Water coil connections. ** Drainage. *** Height with mounting bracket. The unit weight is 66 kg. | v01...

  • Page 10: Dimensions And Weight, R Model

    | Technical data Dimensions and Weight, R model Fig. 3 Dimensions of right hand unit * Water coil connections. ** Drainage. *** Height with mounting bracket. The unit weight is 66 kg. | v01...

  • Page 11: Duct Connections

    Configuration General SAVE VTR 300/B has a modern touchscreen LCD control panel, simply known as HMI — Human Machine Interface. The touchscreen display provides information about current state of the unit and allows you to control all system functions. Settings are done by touching the icons or options. The touch screen is sensitive and it is not necessary to press too hard.

  • Page 12: Common Symbols

    | Configuration • import configuration file (if the Internet Access Module (IAM) with configuration file is available) • airflow control type (Manual/RPM) and airflow level values • heater type (None/Electrical/Water/Change-over) The Startup Wizard cannot be skipped. Common symbols The following selection symbols are common and are present in most menu pages: On and Off slider to activate or Back button to return to a previous deactivate a function.

  • Page 13: Home Screen

    Configuration | Home screen 1. Drop-down menu list 2. Active user mode 3. Airflow settings 4. Temperature settings 5. Target temperature 6. Current measured temperature 7. Status bar 5.5.1 User modes The first icon at the top of home screen shows currently active user mode. To change the user mode, touch the active user mode icon (pos.
  • Page 14 | Configuration Icon Text Description Sets speed of both supply and extract air fans to Low levels when user is away from home for a long period of time. HOLIDAY ECO mode is active. Set duration in days. Sets speed of both supply and extract air fans to maximum High levels and temperature setpoint offset to –3 K when apartment is more crowded than usual.

  • Page 15: Temperature Settings

    Configuration | Configurable digital input can be activated via signal triggered by push button, presence detector or any other external device with digital output, such as Building Management Systems (BMS) Configurable digital inputs are grouped in levels of priority, Configurable Digital Input 1 being the highest, meaning it can’t be overwritten by other user functions.

  • Page 16: Airflow Settings

    | Configuration Then touch the OK button to confirm changes. Temperature set point is for room air temperature, supply air temperature or for extract air temperature depending on which control mode is active. Default setting is Supply air temperature control. Control mode of the temperature can be changed in Service menu.

  • Page 17: Indoor Air Quality

    Configuration | 5.5.4 Indoor Air Quality The unit automatically controls indoor humidity and/or CO levels by adjusting airflow setting. Airflow is increased if air quality is decreasing. Demand Control function is responsible for IAQ (Indoor Air Quality) regulation. Relative humidity (RH) and/or CO sen- sors are responsible for IAQ monitoring.

  • Page 18: Main Menu

    | Configuration Icon Text Description Function sets speed of supply air fan to High level and extract air fan to Low level to increase air pressure within the apartment for better dust collection through central vacuum cleaner. Vacuum Function can be activated via digital input — Central Vacuum Cleaner cleaner Function.
  • Page 19 Configuration | 5.7.2.1 Active Alarms Alarm screen is empty if there are no active or logged alarms. Press HELP button on the active alarm to access FAQ and troubleshooting (if available). Press ACKNOWLEDGE on the in- dividual alarm to clear it. Depending on alarm type and the cause, it might be necessary to do a troubleshooting first to acknowledge active alarm.
  • Page 20 | Configuration Alarm name Explanation Do the following Fire alarm is active. Once the external Fire alarm is Fire alarm disabled – alarm has to be • Alarm stops the unit. acknowledged and unit restarted. Emergency thermostat Indicates triggered overheat A triggered manual or automatic protection (in case of installed overheat protection (EMT) gives an...
  • Page 21 Configuration | Alarm name Explanation Do the following Indicates room air temperature Check that sensor is connected Room air temperature sensor sensor malfunction. properly and cable is not damaged. Contact your installation company or place of purchase. Extract air temperature Indicates extract air temperature Check that sensor is connected sensor malfunction.

  • Page 22: Week Schedule

    | Configuration Alarm name Explanation Do the following Supply air temperature is too low. Check the heat exchanger and re- Low supply air temperature Active: (Outdoor air temperature heater or refer to Point 2 in sensor measures < 0°C) AND (Supply “Troubleshooting”...

  • Page 23: Filter

    Configuration | If necessary, activate second scheduled period and set up time. 2. Once time is set, click on the day(s) when schedule should be active. It is possible to set a separate schedule for each day. Already scheduled days are not available for selection for new schedules. 3.
  • Page 24 | Configuration 5.7.6.1 Input Configuration of inputs Settings for analog, digital and universal input terminals on the main board and connection board, configuration of functionality. Table 1 Digital universal inputs available for selection User modes Activation of specific user modes. Central Vacuum Cleaner Activation of Central vacuum cleaner function.
  • Page 25 Configuration | Table 3 Digital outputs available for selection Step controllers for Heater/Cooler/Extra controller control signals. Heating/Cooling/Extra controller Sum Alarm Fault indicating output. Outdoor-/Exhaust air damper control signal. Outdoor-/Exhaust Air Damper Secondary air damper control. Secondary Air Activate Cooling Cooling mode activation signal to an external system. Interlock External fan Automatic indication about prohibited external fan control (i.e.
  • Page 26 | Configuration Range: 0–20°C. • Set circulation pump stop delay. Default setting is 5 minutes. This option is available if Water / Change-over heat- er type is selected. Range: Off / 1–60 min. Cooler • Choose cooler type. Each selection unlocks additional configuration options. Default setting is None. Available types: None / Water / Change-over.
  • Page 27 Configuration | Only available for Room temperature control / Extract air temperature control modes. ECO mode • Configure ECO mode settings. Set heater offset. Default setting is 5°C. Range: 0–10°C. Fan Control • Configure airflow and fan settings. Select fan control (airflow) type. Default setting is Manual (%). Available types: Manual (%) / Manual rpm / Flow (CAV) / Pressure (VAV) / External Pressure Setting...
  • Page 28 | Configuration Important Changing the airflow type does not change P-band value automatically. P-band value have to be changed manually after changing the airflow type. Demand Control Configure indoor air quality sensors. Once sensor(s) are configured, Demand Control function is activated by choosing AUTO mode in home screen.
  • Page 29 Fan speed differ for each household because of different unit size, duct system and system pressure. In order to find correct fan speed, external tool must be used at Systemair website. 1. Go to Systemair website and find your unit.
  • Page 30 | Configuration • Configurable Digital Input 1 • Configurable Digital Input 2 • Configurable Digital Input 3 • Pressure Guard 5.7.6.6 Communication Configure Modbus and wireless settings Modbus • Set Modbus address. Default setting is 1. • Set baud rate. Default setting is 115200. •...

  • Page 31: Help

    Configuration | Level 4: 45–59% Level 5: 60–100% Parameters • Select parameter type, position in y-axis, period from 60 minutes to 2 weeks and then create a graph based on stored data by touching icon in the top right corner .

  • Page 32: Service

    | Service Service Warnings Danger • Make sure that the mains supply to the unit is disconnected before performing any maintenance or electrical work! • All electrical connections and maintenance work must be carried out by an authorized installer and in accordance with local rules and regulations.

  • Page 33: Internal Components

    Service | Internal components Fig. 9 Internal components Position Description Mounting bracket External connections Relative humidity/Extract air temperature sensor Overheat protection sensor Internal electrical re-heater Extract air filter Main print card Supply air fan Rotor motor and belt pulley Rotating heat exchanger Heat exchanger drive belt Rotor sensor Supply air filter...

  • Page 34: Component Descriptions

    The filter type is labelled on the top of the filter 6.2.1.3 Heat exchanger SAVE VTR 300/B is equipped with a rotating heat exchanger. Required supply air temperature is therefore normally maintained without adding additional heat. The heat exchanger is removable for cleaning and maintenance, see “User Manual” for more information.

  • Page 35: Electrical Connections

    The print card (1) can easily be taken out from the unit. Fig. 11 Print card position 6.3.1 Main board layout The SAVE VTR 300/B is equipped with built-in regulation and internal wiring. The figure shows the main circuit board. See wiring diagram for more information. | v01...
  • Page 36 | Service Fig. 12 Main circuit board connections Position Description Main circuit board Connection to the external connection box Terminals for a heater Terminals for a TRIAC Terminals for the mains power supply Terminals for power supply of extract air fan Terminals for power supply of supply air fan Terminals for internal relative humidity/temperature sensor Analog input 1 —...

  • Page 37: External Connections (Connection Board)

    Service | 6.3.2 External connections (Connection board) External connections to the main circuit board are done via connection board situated outside of the unit. Fig. 13 External connection box and board Position Description Connection to the main circuit board Connection for external control panel (HMI) or Internet access module (IAM) Modbus RS485 connection AI6–7 Freely configurable Analog input.
  • Page 38 | Service 10.Check if the buildings air intake and roof unit (exhaust) have been clogged. 11.Check visible duct runs for damage and/or build up of dust/pollution. 12.Check diffuser/louvre openings. The unit cannot be controlled (control functions are stuck 1. Reset control functions by disconnecting mains power for at least 10 seconds. 2.

  • Page 39: Accessories

    Accessories | Accessories SAVE VTR 300/B have many available accessories that can be used to expand functionality of the unit and increase comfort level. Recommended accessories can be always found at Systemair website www.systemair.com by searching the article number or the name of the desired accessory.
  • Page 40 • D1 — Download and install Systemair mobile application on your device. Systemair mobile application is available for both Android and iOS mobile operating systems. • D2 — Systemair web application does not require installation and can be accessed directly through the website (homesolutions.systemair.com ) by using any web browser.

  • Page 41: Indoor Air Quality Sensors

    • 3 — Extract air • 4 — Exhaust air Component/product — Article number: • Systemair-1 CO2 duct sensor — 14906 • Systemair-E CO2 sensor — 14904 • Room sensor 0-50C (temperature) — 211525 • Systemair-E CO2 RH Temperature — 211522 Installation and connection 1.

  • Page 42: Temperature Control

    | Accessories Temperature control 7.3.1 Electric duct heater (control via relay) The electric heater can be installed in outdoor or supply air ducts. • ELH — electric heater • ECT — extra controller temperature sensor • OAT — outdoor air duct temperature sensor •...

  • Page 43: Internal Water Heater

    Accessories | 7.3.1.2 Heater installed in the supply air duct Connections 1. Install an electric heater (ELH) at least 100 mm distance from the unit in the supply air duct. A relay (RL) is used to control the heater. Connect relay to any free digital output on the connection board (CB).

  • Page 44: Duct Water Heater

    | Accessories • ZTV 15-0,6 2-way valve — 6571 • ZTR 15-0,4 valve 3-way — 9670 • ZTR 15-0,6 valve 3-way — 6573 Installation and connection 1. Remove plug and add the frost protection sensor. Tread seal the sensor. 2. Install water heater in the unit. Connect pipes, 2/3–way valve and actuator. Important Do NOT use 24V DC power output from the connection board for valve actuator.
  • Page 45 Accessories | • WH — water heating battery • FPT — frost protection sensor • SAT — supply air temperature sensor • S — actuator for valve • 1 — Outdoor air • 2 — Supply air • 3 — Extract air •...

  • Page 46: Duct Water Cooler

    | Accessories Note: A duct temperature sensor can be connected to analog inputs 6–7 on the connection board for better access and then configured as a supply air temperature sensor. However the internal supply air temperature sensor must be disabled in the control panel first. 7.

  • Page 47: Change-Over Coil For Heating/Cooling Function

    Accessories | 5. Since a duct temperature sensor replaces internal supply air temperature sensor, it doesn’t need to be re-configured. Note: A duct temperature sensor can be connected to analog inputs 6–7 on the connection board for better access and then configured as a supply air temperature sensor. However the internal supply air temperature sensor must be disabled in the control panel first.

  • Page 48: Airflow Control

    | Accessories 6. A thermostat can be used to send signals (change-over feedback) regarding which actual medium (hot or cold) is currently in a pipe. This signal can be also sent directly from the heat pump if such function is available. If heating is demanded but only cold water/refrigerant is available - heating is deactivated).

  • Page 49: Installation/Maintenance

    Accessories | Note: The accessory package contains all needed parts for VAV conversion, however for use with CAV, an IRIS damper or a similar device with known K factor has to be purchased. Component/product — Article number: • VAV/CAV conversion kit — 140777 •...

  • Page 50: Cooker Hoods For Save /B Series

    SAVE /B series have a dedicated 5th duct for air extraction through a cooker hood. This duct bypasses the heat ex- changer and air from the kitchen gets removed directly to the outside. Recommended cooker hoods can be found at Systemair website in the product description of your ventilation unit.

  • Page 51: Pressure Guard

    Accessories | 7.5.3 Pressure Guard A differential pressure switch is used to detect air pressure difference in a duct. The contact in the switch changes (on/ off) when air pressure exceeds the setpoint value. One of the possibilities is to use this device with a cooker hood which has an internal fan. Turned on cooker hood causes air pressure to increase in the exhaust air duct.

  • Page 52: Multiple Control Panels

    | Accessories 7.5.4 Multiple control panels Multiple control panels (up to 10) can be connected to one unit with the help of diverting plugs. A single diverting plug allows to connect two control panels. A diverting plug can be connected to another diverting plug to further increase the number of control panels that can be connected simultaneously.

  • Page 53: Push Button

    Accessories | Component/product — Article number: • Presence detector/IR24 — 6995 Configuration 1. Go to Service menu 2. Enter password (default 1111) 3. Go to Input menu. Select UNIVERSAL tab. 4. Select the universal input to which wire from the pres- ence detector is connected.
