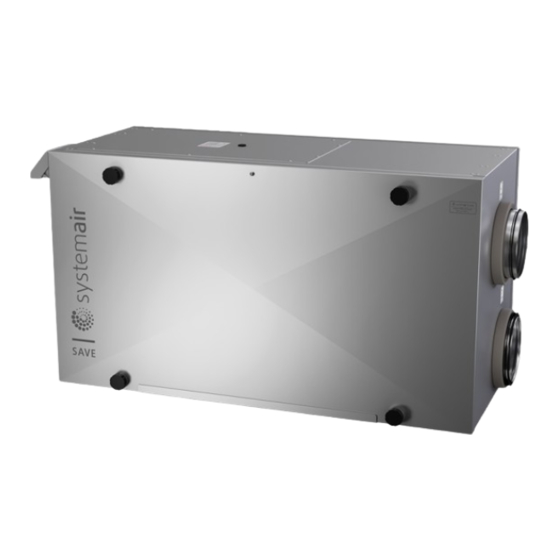

SAVE VSR 300/500
GB
Installation instructions
Document in original language | 333547 · v1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAVE VSR 300 and is the answer not in the manual?

Questions and answers

Summary of Contents for SystemAir SAVE VSR 300

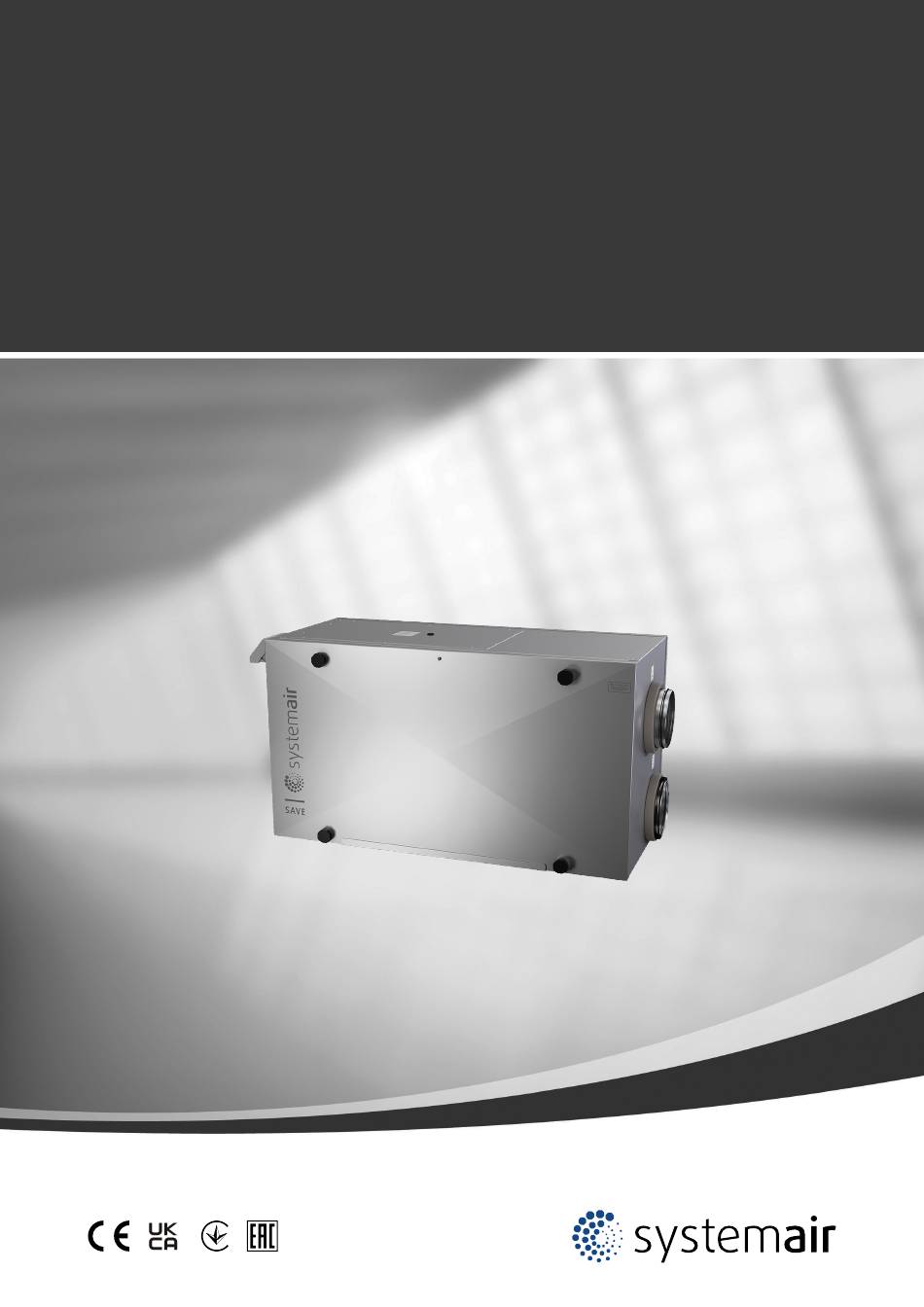

  • Page 1 SAVE VSR 300/500 Installation instructions Document in original language | 333547 · v1.1...
  • Page 2 This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Systemair is not liable or bound by warranty if these instructions are not adhered to during installation or service. 333547 | v1.1...
  • Page 3: Table Of Contents

    Contents Overview ............1 10 Concluding Routines ........10 General Description ........1 11 Disposal and recycling ........11 Warranty ..........1 12 EU Declaration of Conformity ......12 Type label..........1 Important Safety Information ......1 Intended Use.........1 Admonitions .........2 Technical Data ..........2 Dimensions and Weight ......3 3.1.1 Dimensions and Weight of VSR 300 ........3...
  • Page 5: Overview

    For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re- port. Systemair will require these in the case of a warranty claim. Type label Before calling your service representative, make a note of the specification and production number from the type label, which can be found next to the external connections and inside of the unit.
  • Page 6: Admonitions

    | Technical Data • The system should operate continuously, and only be stopped for maintenance/service. • Do not connect tumble dryers to the ventilation system. • Make sure that filters are mounted before starting the unit. Admonitions Danger • Make sure that the mains supply to the unit is disconnected before performing any maintenance or electrical work! •...
  • Page 7: Dimensions And Weight

    Technical Data | Dimensions and Weight 3.1.1 Dimensions and Weight of VSR 300 Fig. 2 Dimensions of VSR 300 * Drainage The unit weight is 65 kg. 3.1.2 Dimensions and Weight of VSR 500 Fig. 3 Dimensions of VSR 500 * Drainage 333547 | v1.1...
  • Page 8: Duct Connections

    | Technical Data The unit weight is 77 kg. Duct connections Fig. 4 Duct connections Description Description Symbol Symbol Supply air Outdoor air Exhaust air Extract air Installation recommendation regarding condensation 3.3.1 Condensation inside of the unit The unit should run continuously. If the unit is intended to be stopped by the user manually or due to calendar function we recommend to install air tight dampers at extract and supply air ducts.
  • Page 9: Delivery, Transport, Storage

    Transport and storage The SAVE VSR 300/500 should be stored and transported in such a way that it is protected against physical damage. It should be covered so dust, rain and snow cannot enter and damage the unit and its components.
  • Page 10: Location And Space Requirements

    Access to Power supply The SAVE VSR 300/500 is supplied with approximately 1 – 1,5 m cable and plug for 230V, single phase earthed connection. Make sure a power outlet is reachable by the plug.
  • Page 11: Condensation Drainage

    Installation | Fit the enclosed self adhesive vibration dampers on the unit. Make sure that the surface is flat and that it supports the weight of the unit. Perform the installation in accordance with local rules and regulations. Condensation drainage In general no condensation drainage is needed for rotational heat exchangers at dry conditions.
  • Page 12: Electrical Connections

    | Electrical connections Electrical connections Main circuit board layout The SAVE VSR 300/500 is equipped with built-in regulation and internal wiring. Fig. 6 Main circuit board connections Position Description Connection to the external connection box Terminals for a heater Terminals for a TRIAC...
  • Page 13: External Connections (Connection Board)

    Before Starting the System | Position Description Terminals for speed control of extract air fan Terminals for speed control of supply air fan External connections (Connection board) External connections to the main circuit board are done via connection board situated inside of the unit. Fig.
  • Page 14: Concluding Routines

    | Commissioning • The unit is correctly wired Commissioning Follow the first startup instructions and fill in the Commissioning record as you go through the settings. The Startup Wizard cannot be skipped. Note: If the SAVE LIGHT control panel is used, the start-up wizard is skipped and the factory settings are used. Select language, set the time and choose airflow control type.
  • Page 15: Disposal And Recycling

    Disposal and recycling | 3. Make sure that the Commissioning record is complete. 4. Collect all tools. 5. Inform the appropriate person that work is finished. 6. Follow the procedures for the return and disposal of replacement parts and the disposal of packing. Disposal and recycling This product is compliant with the European WEEE Directive and related national waste legislation.
  • Page 16: Eu Declaration Of Conformity

    Degrees of protection provided by enclosures (IP Code). The manufacturer hereby confirms that EN 62233 SAVE VSR 300/500 Measurement methods for electromagnetic fields of household appliances and similar apparatus with regard comply with all applicable requirements in the following to human exposure.
  • Page 17 333547 | v1.1...
  • Page 18 Systemair UAB Linų st. 101 LT–20174 Ukmergė, LITHUANIA Phone +370 340 60165 Fax +370 340 60166 www.systemair.com...
