UM11898
KITPF5300SKTEVM Evaluation board
Rev. 1 — 9 June 2023
Document Information
Information
Keywords
Abstract
Content
Safety, SBC, automotive, low power, ASIL D, industrial
This document is the user guide for the KITPF5300SKTEVM evaluation board.
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAFE ASSURE KITPF5300SKTEVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NXP Semiconductors SAFE ASSURE KITPF5300SKTEVM

Summary of Contents for NXP Semiconductors SAFE ASSURE KITPF5300SKTEVM

  • Page 1 UM11898 KITPF5300SKTEVM Evaluation board Rev. 1 — 9 June 2023 User manual Document Information Information Content Keywords Safety, SBC, automotive, low power, ASIL D, industrial Abstract This document is the user guide for the KITPF5300SKTEVM evaluation board.
  • Page 2 UM11898 NXP Semiconductors KITPF5300SKTEVM Evaluation board Revision history Revision Date Description 20230609 initial version IMPORTANT NOTICE For engineering development or evaluation purposes only NXP provides the product under the following conditions: This evaluation kit is for use of ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY.

  • Page 3: Introduction

    This document covers connecting the hardware, installing the software and tools, configuring the environment, and using the kit. 2 Finding kit resources and information on the NXP website NXP Semiconductors provides online resources for this evaluation board and its supported device(s) on http:// www.nxp.com.

  • Page 4: Getting To Know The Hardware

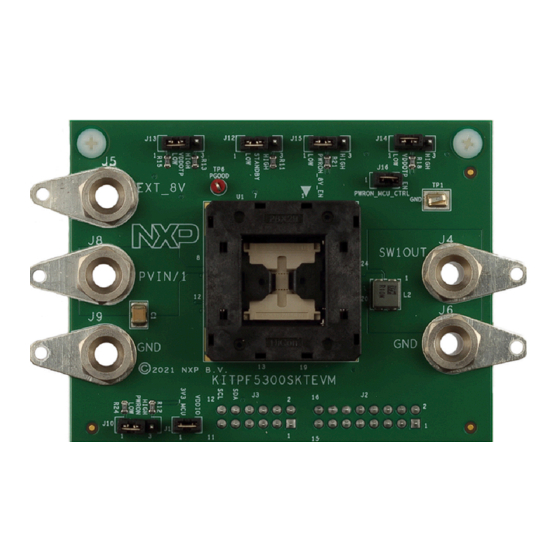

    UM11898 NXP Semiconductors KITPF5300SKTEVM Evaluation board 4 Getting to know the hardware The KITPF5300SKTEVM provides a way to OTP programming the PF5300 and conduct basic power-up testing of a programmed part. Loading of the DC-DC converter is not allowed. 4.1 Board features •...

  • Page 5: Schematics, Board Layout, And Bill Of Materials

    UM11898 NXP Semiconductors KITPF5300SKTEVM Evaluation board Table 1. Connector and jumper description Position Function Description EXT_8V 8 V supply input needed for OTP programming VIN/PVIN Input power supply (3.3 V) J9, J6 Ground Output Voltage Output Voltage 1-2: Default. STANDBY = GND...

  • Page 6: Flashing Freedom Board Evaluation Board Firmware For Windows 10

    UM11898 NXP Semiconductors KITPF5300SKTEVM Evaluation board Note: Make sure to allow enough time for the firmware to be saved in the BOOTLOADER 3. Disconnect and reconnect the USB cable into the SDA port • This time, without pressing the RST button, the FRDM_KL25Z device should appear on the left pane of...

  • Page 7: Installing The Gui Software Package

    UM11898 NXP Semiconductors KITPF5300SKTEVM Evaluation board Figure 3. Left pane of Windows File Explorer 5. Locate the file nxp-gui-fw-frdmkl25z-usb_hid-pf5300_v0.3 (or later version) from the package, and drag and drop the file into the FRDM_KL25Z device. Note: Make sure to allow enough time for the firmware to be saved.
  • Page 8 UM11898 NXP Semiconductors KITPF5300SKTEVM Evaluation board Figure 4. NXP GUI kit selection window Note: To avoid the kit selection window on every launch, check the box Use this configuration and do not ask again. The window shown in Figure 5 opens.

  • Page 9: Configuring The Hardware

    UM11898 NXP Semiconductors KITPF5300SKTEVM Evaluation board 7 Configuring the hardware Once the user has installed the NXP GUI, follow these instructions to quickly power up the board. Powering up the board with pre-programmed OTP configuration 1. Make sure that the board has the right jumper configuration per...
  • Page 10 UM11898 NXP Semiconductors KITPF5300SKTEVM Evaluation board 8. Go to the PROG tab in the left side selection 9. Select the programming source – either from a script file, or to use the existing GUI configuration 10. Click on the Program button to program the OTP fuses with the selected configuration.

  • Page 11: Legal Information

    NXP Semiconductors. In no event shall NXP Semiconductors be liable for any indirect, incidental, Evaluation products — This product is provided on an “as is” and “with all punitive, special or consequential damages (including - without limitation - faults”...
  • Page 12 UM11898 NXP Semiconductors KITPF5300SKTEVM Evaluation board NXP — wordmark and logo are trademarks of NXP B.V. 8.3 Trademarks Kinetis — is a trademark of NXP B.V. SafeAssure — is a trademark of NXP B.V. Notice: All referenced brands, product names, service names, and trademarks are the property of their respective owners.
  • Page 13 UM11898 NXP Semiconductors KITPF5300SKTEVM Evaluation board Tables Tab. 1. Connector and jumper description ....5 Figures Fig. 1. Evaluation board featured component Fig. 4. NXP GUI kit selection window ......8 locations on top ..........4 Fig. 5. NXP GUI ............8 Fig.

  • Page 14: Table Of Contents

    UM11898 NXP Semiconductors KITPF5300SKTEVM Evaluation board Contents Introduction ............3 Finding kit resources and information on the NXP website ..........3 Getting ready ............3 Kit contents ............3 Additional hardware ........... 3 Minimum system requirements ......3 Software .............3 Getting to know the hardware ......4 Board features ...........
