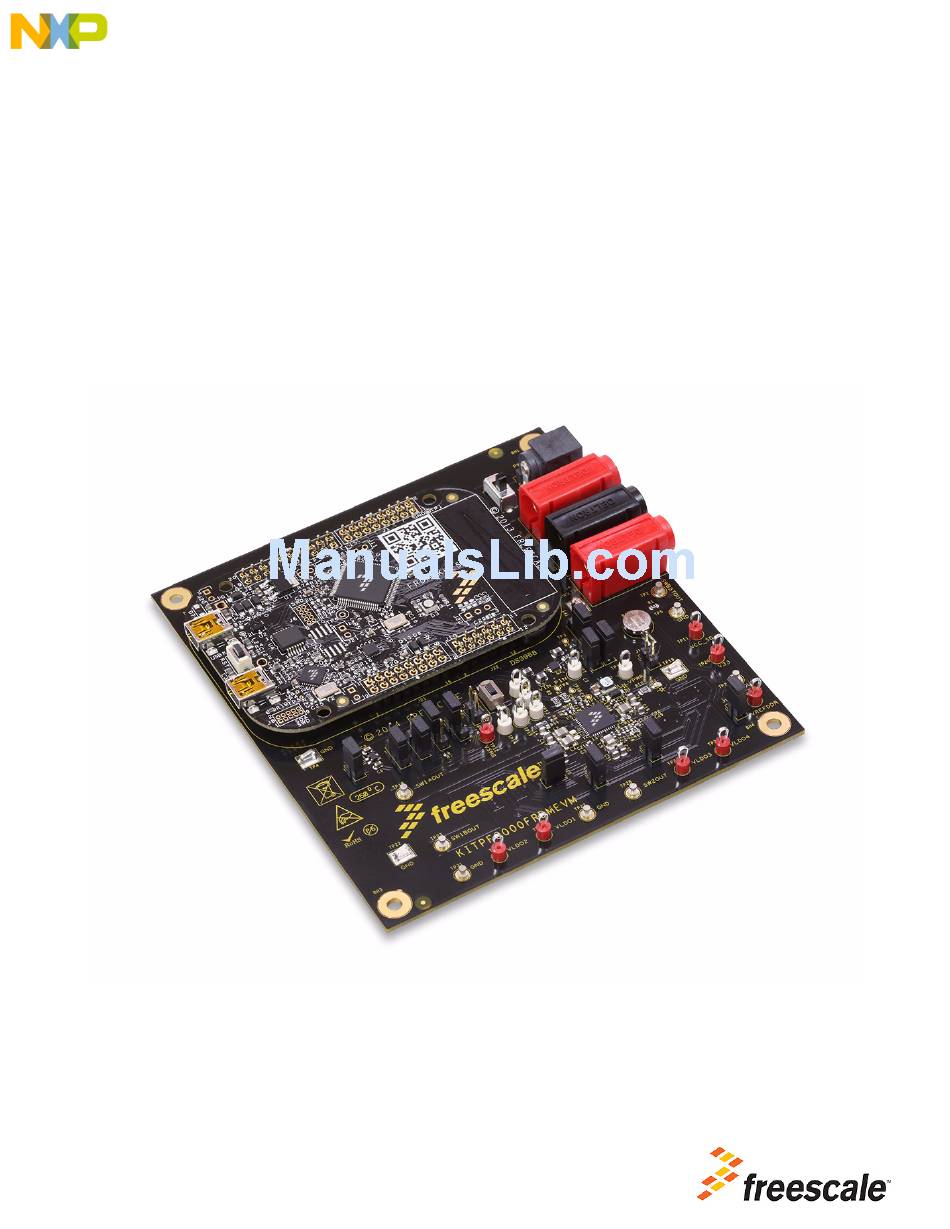

- Page 1 Freescale Semiconductor Document Number: KTPF3000FRDMEVMUG Rev. 2.0, 8/2015 User’s Guide KITPF3000FRDMEVM Board for PF3000 Evaluation and PF3001 Emulation Figure 1. KITPF3000FRDMEVM © Freescale Semiconductor, Inc., 2015. All rights reserved.
-
Page 2: Table Of Contents
Table of Contents 1 Important Notice ....................3 2 Getting Started . -
Page 3: Important Notice
Important Notice Important Notice Freescale provides the enclosed product(s) under the following conditions: This evaluation kit is intended for use of ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY. It is provided as a sample IC pre-soldered to a printed circuit board to make it easier to access inputs, outputs, and supply terminals. -
Page 4: Getting Started
Getting Started Getting Started 2.1 Kit Contents/Packing List The KITPF3000FRDMEVM contents include: • Assembled and tested KITPF3000FRDMEVM evaluation board • Firmware loaded FRDM-KL25Z board (mounted to the evaluation board) • Quick Start Guide • USB to Mini-USB Cable • Warranty card 2.2 Jump Start... -
Page 5: Getting To Know The Hardware
Getting to Know the Hardware 3.1 Board Overview The KITPF3000FRDMEVM Evaluation Board (EVB) is an easy-to-use circuit board allowing the user to exercise all the functions of the PF3000 and PF3001 Power Management IC. This board can be used to emulate the PF3001. -
Page 6: Board Description
Getting to Know the Hardware 3.4 Board Description VPWR KL25Z Input (Default) Port OpenSDA Port Input Power on PF3000 PMIC Figure 2. Board Description Table 2. Board Description Name Description 3.7 V to 5.5 V Supply input (Default). Use only when SW1 is in position 1 (VPWR path). This connector is VPWR input (J1 and J2) shorted to GND when SW1 is in position 2 (VIN path) GND (J3) -
Page 7: Device Description
Getting to Know the Hardware 3.5 Device Description The PF3000 device populated on KITPF3000FRDMEVM features the A1 OTP. See Figure Table 3. Start-up Configuration Registers Value Default I C Address 0x08 VSNVS_VOLT 3.0 V SW1A_VOLT 1.10 V SW1A_SEQ SW1B_VOLT 1.0 V... - Page 8 Getting to Know the Hardware 3.6 Jumper and Switch Definitions Figure 3 shows the location of jumpers and switches on the KITPF3000FRDMEVM evaluation board. Table 4 describes the function and settings for each jumper and switch. (Default settings are shown in bold.) Figure 3.
- Page 9 Getting to Know the Hardware Table 4. Jumper and Switch Definitions Jumper/Switch Description Setting Connection Connect a 3.7 V to 5.5 V supply either through VPWR Path banana jacks J2 (positive) and J3 (ground) or through wall adaptor via J1 connector Connect a 2.8 V to 4.5 V supply via J4 (positive) VIN Path...
-
Page 10: Installing The Software And Setting Up The Hardware
Installing the Software and Setting up the Hardware 4.1 Installing PF3000GUI on your Computer 1. Download PF3000GUI.zip from https://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=KITPF3000FRDMEVM. 2. Extract all the files to C:/Freescale/PF3000GUI or any other desired folder on your PC. 3. Run setup.exe and click on "Install" in the dialog box in Figure Figure 4. - Page 11 Installing the Software and Setting up the Hardware 4.2 Installing PF3001GUI on your Computer 1. Download PF3001GUI.zip from https://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=KITPF3000FRDMEVM. 2. Extract all the files to C:/Freescale/PF3001GUI or any other desired folder on your PC. 3. Run setup.exe and click on "Install" in the dialog box in Figure Figure 6.
- Page 12 Installing the Software and Setting up the Hardware 4. The GUI installation is complete and the window shown in Figure 7 appears. Do not click on anything until the board is plugged in. Figure 7. Installation Confirmation KTPF3000FRDMEVMUG, Rev. 2.0 Freescale Semiconductor, Inc.
- Page 13 KL25Z USB Cable Port KITPF3000FRDMEVM Figure 8. Hardware Configuration 3. Windows will automatically install the necessary drivers. Wait for this to complete. 4. In the PF3000 GUI or PF3001 GUI window, click on the "Scan For Devices" button in the top-left portion. A confirmation...
- Page 14 Installing the Software and Setting up the Hardware 4.4 Understanding and Using the GUI 4.4.1 GUI Structure for PF3000 Figure 10 shows the different components of the GUI. To enable the volt meters on the board, click on the "Read Meters" button located in the bottom left of the window. The output of the meters is displayed in the right side of the window.
- Page 15 Installing the Software and Setting up the Hardware 4.4.2 Try-Before-Buy Mode using the “Configuration” Tab The PF3000FRDMPEVM comes with a PF3000 device whose OTP memory is pre-programmed. The PF3000 allows the user to override the OTP memory using the "Try-Before-Buy" mode. To use this mode, go to the "Configuration"...
- Page 16 Installing the Software and Setting up the Hardware Miscellaneous Tabs Board Information Activity Log Direct Register Read/Write Volt Meter Control Figure 12. PF3001 GUI Main Window You are encouraged to explore the different tables, buttons, and sliders in the various tabs of the GUI. KTPF3000FRDMEVMUG, Rev.
-
Page 17: How To Emulate The Pf3001
How to Emulate the PF3001 How to Emulate the PF3001 To emulate the PF3001: 1. Add a 0 Ohm resistor R13 and remove L4 as shown in Figure Figure 13. Schematic Change for PF3001 Figure 14. Layout Change for PF3001 KTPF3000FRDMEVMUG, Rev. - Page 18 How to Emulate the PF3001 2. Make sure the Jumper J5 is connected as shown in Figure Figure 15. J5 TBB Jumper Connection 3. Download and use the PF3001GUI. KTPF3000FRDMEVMUG, Rev. 2.0 Freescale Semiconductor, Inc.
-
Page 19: Schematics, Board Layout And Bill Of Materials
Schematics, Board Layout and Bill of Materials Schematics, Board Layout and Bill of Materials KITPF3000FRDMEVM board schematics, board layout, and bill of materials are available in the Download section of the KITPF3000FRDMEVM Product Summary page at the following url: http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=KITPF3000FRDMEVM KTPF3000FRDMEVMUG, Rev. -
Page 20: References
References References Following are URLs where you can obtain information on related Freescale products and application solutions: Freescale.com Description Support Pages Tool Summary http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=KITPF3000FRDMEVM Page KITPF3000FRDMEVM Schematic, http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=KITPF3000FRDMEVM BOM, Board (Download Section) Layout Product http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=PF3000 PF3000 Summary Page Product http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=PF3001... -
Page 21: Revision History
Revision History Revision History Revision Date Description of Changes • Initial release 5/2015 • Added caution to note Table 4 • Added Section 4.2 8/2015 • Added Section 4.4.3 • Added Section 5 KTPF3000FRDMEVMUG, Rev. 2.0 Freescale Semiconductor... - Page 22 How to Reach Us: Information in this document is provided solely to enable system and software implementers to use Freescale products. There are no express or implied copyright licenses granted hereunder to design or fabricate any integrated circuits based Home Page: freescale.com on the information in this document.
