Axis Q6315-LE User Manual

Hide thumbs Also See for Q6315-LE:
Table of Contents

Advertisement

Quick Links

Download this manual

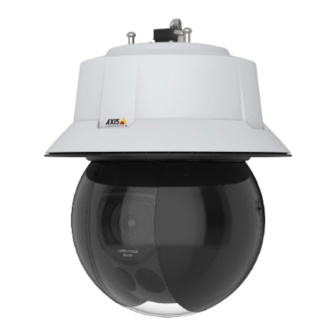

AXIS Q6315-LE PTZ Camera
User manual

Advertisement

Table of Contents
loading

Related Manuals for Axis Q6315-LE

Summary of Contents for Axis Q6315-LE

  • Page 1 AXIS Q6315-LE PTZ Camera User manual...

  • Page 2: Table Of Contents

    AXIS Q6315-LE PTZ Camera Table of Contents Installation ..........

  • Page 3: Installation

    AXIS Q6315-LE PTZ Camera Installation Installation To watch this video, go to the web version of this document. help.axis.com/?&piaId=57873&section=install Installation video for the product.

  • Page 4: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 5: Verify That No One Has Tampered With The Firmware

    Verify that no one has tampered with the firmware To make sure that the device has its original Axis firmware, or to take full control of the device after a security attack: 1. Reset to factory default settings. See Reset to factory default settings on page 57.

  • Page 6: Configure Your Device

    3. Use the Tone mapping slider to adjust the amount of WDR. 4. If you still have problems, go to Exposure and adjust the Exposure zone to cover the area of interest. Find out more about WDR and how to use it at axis.com/web-articles/wdr. Verify the pixel resolution To verify that a defined part of the image contains enough pixels to, for example, recognize license plates, you can use the pixel counter.
  • Page 7 AXIS Q6315-LE PTZ Camera Configure your device ABC 123 1. Go to Video > Image. 2. Click 3. Click for Pixel counter. 4. In the camera’s live view, adjust the size and position of the rectangle around the area of interest, for example where you expect license plates to appear.
  • Page 8 AXIS Q6315-LE PTZ Camera Configure your device 2. Select Image and click 3. Click Images. 4. Drag and drop an image. 5. Click Upload. 6. Click Manage overlay. 7. Select the image and a position. You can also drag the overlay image in the live view to change the position.

  • Page 9: Adjust The Camera View (Ptz)

    AXIS Q6315-LE PTZ Camera Configure your device 3. Click Add preset position to create a new preset position. Adjust the camera view (PTZ) To learn more about different pan, tilt, and zoom settings, see Pan, tilt, and zoom (PTZ) on page 49.

  • Page 10: Set Up Rules For Events

    AXIS Q6315-LE PTZ Camera Configure your device Note Most web browsers don’t support H.265 decoding and because of this the device doesn’t support it in its web interface. Instead you can use a video management system or application that supports H.265 decoding.
  • Page 11 Before you start: • Make sure you have an SD card installed. Make sure that AXIS Object Analytics is running: 1. Go to Apps > AXIS Object Analytics. 2. Start the application if it is not already running. 3. Make sure you have set up the application according to your needs.
  • Page 12 Set up motion detection: 1. Go to Apps and start and open AXIS Object Analytics. 2. Create an object in area scenario for vehicles, with an include area that covers the entrance of the gate. Create a rule: 1.
  • Page 13 AXIS Q6315-LE PTZ Camera Configure your device 4. Type a name for the rule. 5. In the list of conditions, under Device status, select Shock detected. 6. Click + to add a second condition. 7. In the list of conditions, under Scheduled and recurring, select Schedule.

  • Page 14: The Device Interface

    AXIS Q6315-LE PTZ Camera The device interface The device interface To reach the device interface, type the device’s IP address in a web browser. Note Support for the features and settings described in this section varies between devices. This icon indicates that the feature or setting is only available in some devices.

  • Page 15: Video

    Shows what kinds of access to the device that are active, and what encryption protocols are in use. Recommendations to the settings are based on the AXIS OS Hardening Guide. Hardening guide: Click to go to AXIS OS Hardening guide where you can learn more about how to apply cybersecurity best practices.
  • Page 16 AXIS Q6315-LE PTZ Camera The device interface Click to play the live video stream. Click to freeze the live video stream. Click to take a snapshot of the live video stream. The file is saved in the ‘Downloads’ folder on your computer. The image file name is [snapshot_YYYY_MM_DD_HH_MM_SS.jpg].
  • Page 17 AXIS Q6315-LE PTZ Camera The device interface • Video format: Select the encoding format to use in the live view. • Client stream information: Turn on to show dynamic information about the video stream used by the browser that shows the live video stream. The bitrate information differs from the information shown in a text overlay, because of different information sources.
  • Page 18 AXIS Q6315-LE PTZ Camera The device interface Important We recommend you not to use multiple image correction features at the same time, since it can lead to performance issues. Barrel distortion correction (BDC) : Turn on to get a straighter image if it suffers from barrel distortion. Barrel distortion is a lens effect that makes the image appear curved and bent outwards.
  • Page 19 AXIS Q6315-LE PTZ Camera The device interface Image Appearance Scene profile : Select a scene profile that suits your surveillance scenario. A scene profile optimizes image settings, including color level, brightness, sharpness, contrast, and local contrast, for a specific environment or purpose.
  • Page 20 AXIS Q6315-LE PTZ Camera The device interface : Turn on to make both bright and dark areas of the image visible. Local contrast : Use the slider to adjust the contrast of the image. A higher value makes the contrast higher between dark and light areas.
  • Page 21 • Move the slider towards Dark to increase the threshold for the IR-cut filter. The camera changes to night mode later. IR light If your device doesn’t have built-in illumination, these controls are only available when you have connected a supporting Axis accessory.
  • Page 22 AXIS Q6315-LE PTZ Camera The device interface • Flicker-free 60 Hz : The camera adjusts the aperture and gain automatically, and uses the shutter speed 1/60 s. • Flicker-reduced : This is the same as flicker-free, but the camera might use shutter speeds faster than 1/100 s (50 Hz) and 1/120 s (60 Hz) for brighter scenes.
  • Page 23 Zipstream is a bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265 stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example in scenes with moving objects.
  • Page 24 AXIS Q6315-LE PTZ Camera The device interface Dynamic FPS (frames per second): Turn on to allow the bandwidth to vary based on the level of activity in the scene. More activity requires more bandwidth. Lower limit: Enter a value to adjust the frame rate between minimal fps and the stream default fps based on scene motion. We recommend you to use lower limit in scenes with very little motion, where the fps could drop to 1 or lower.

  • Page 25: Ptz

    AXIS Q6315-LE PTZ Camera The device interface • Streaming indicator : Select to show an animation superimposed over the video stream. The animation indicates that the video stream is live, even if the scene doesn’t contain any motion. Appearance: Select the animation color and background color, for example, red animation on a transparent background (default).
  • Page 26 AXIS Q6315-LE PTZ Camera The device interface Preset position A guard tour with preset positions displays the video stream from different preset positions, either in a predefined or random order for a specified duration. Once started, a guard tour continues to run until stopped, even when there are no clients (web browsers) viewing the images.
  • Page 27 AXIS Q6315-LE PTZ Camera The device interface Limits To narrow down the area under surveillance, you can limit the PTZ movements. Save as Pan 0: Click to set the current position as zero-point for pan coordinates. Set pan-tilt limits: Turn on to set pan-tilt limits for PTZ movements. The camera uses the coordinates of the center of the image when you set pan-tilt limits.
  • Page 28 • PTZ control queue: Turn on to place PTZ control requests in a queue. This displays the users status and position in the queue. To use the PTZ controls in AXIS Camera Station, turn off this setting. Enter queue: Click to add your request for PTZ control to the queue.

  • Page 29: Recordings

    AXIS Q6315-LE PTZ Camera The device interface Timeout type Timespan: Time out after reaching the set duration. Activity: Time out after reaching the set duration since the last activity. Infinity: Never to time out until a user with higher priority takes control.

  • Page 30: Apps

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/products/analytics. You need a license code and the Axis product serial number to generate a license key.
  • Page 31 AXIS Q6315-LE PTZ Camera The device interface Note The system uses the date and time settings in all recordings, logs and system settings. Regional settings Sets the system of measurement to be used in all system settings. Metric (m, km/h): Select for distance to be measured in meters and speed to be measured in kilometers per hour.
  • Page 32 One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services. Allow O3C: • One-click: The default setting. Press and hold the control button on the device to connect to an O3C service over the internet.
  • Page 33 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 34 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 35 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 36 AXIS Q6315-LE PTZ Camera The device interface A rule defines the conditions that must be met for the product to perform an action. The list shows all the currently configured rules in the product. Note You can create up to 256 action rules.
  • Page 37 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 38 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management systems (VMS).
  • Page 39 AXIS Q6315-LE PTZ Camera The device interface ALPN is a TLS/SSL extension that allows for the selection of an application protocol during the handshake phase of the connection between the client and server. This is used to enable MQTT traffic over the same port that is used for other protocols, such as HTTP.
  • Page 40 AXIS Q6315-LE PTZ Camera The device interface The Last Will Testament (LWT) lets a client provide a testament along with its credentials when connecting to the broker. If the client disconnects ungracefully at some point later (maybe because his power source died), it can let the broker deliver a message to other clients.
  • Page 41 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share, since each device gets its own folder.
  • Page 42 AXIS Q6315-LE PTZ Camera The device interface Important Risk of data loss and corrupted recordings. Do not remove the SD card while the device is running. Unmount the SD card before you remove it. Unmount: Click to safely remove the SD card.
  • Page 43 When you create an ONVIF user, you automatically enable ONVIF communication. Use the username and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. Add user: Click to add a new ONVIF user.
  • Page 44 AXIS Q6315-LE PTZ Camera The device interface Update user: Edit the user’s properties. Delete user: Delete the user. You can’t delete the root user. ONVIF media profiles An ONVIF media profile consists of a set of configurations that you can use to change media stream settings.
  • Page 45 Pairing Pairing allows you to use a compatible Axis network speaker or microphone as if it’s part of the camera. Once paired, the network speaker acts as an audio out device where you can play audio clips and transmit sound through the camera. The network microphone will take up sounds from the surrounding area and make it available as an audio input device, usable in media streams and recordings.

  • Page 46: Maintenance

    Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device.
  • Page 47 The device interface Note All Axis device firmware is digitally signed to ensure that you only install verified firmware on your device. This further increases the overall minimum cybersecurity level of Axis devices. For more information, see the white paper “Signed firmware, secure boot, and security of private keys”...

  • Page 48: Learn More

    AXIS Q6315-LE PTZ Camera Learn more Learn more Long-distance connections This product supports fiber-optic cable installations through a media converter. Fiber-optic cable installations offer a number of benefits such as: • Long-distance connection • High speed • Long lifetime •...

  • Page 49: Privacy Masks

    The image shows how the field of view and aspect ratio can change between two different capture modes. What capture mode to choose depends on the requirements for the frame rate and resolution of the specific surveillance setup. For specifications about available capture modes, see the product’s datasheet at axis.com. Privacy masks A privacy mask is a user-defined area that prevents users from viewing a part of the monitored area.

  • Page 50: Streaming And Storage

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to older MPEG formats.

  • Page 51: Applications

    Applications With applications you can get more out of your Axis device. AXIS Camera Application Platform (ACAP) is an open platform that makes it possible for third parties to develop analytics and other applications for Axis devices. Applications can be preinstalled on the device, available for download for free, or for a license fee.
  • Page 52 2. Direct the camera view to the area you want to track, and click Add preset position to create a preset position. 3. Go to Apps > AXIS PTZ Autotracking. 4. Start and open the application. In the application interface:...

  • Page 53: Security

    AXIS Q6315-LE PTZ Camera Learn more 2. Click and select the preset position you created in the device’s web interface. 3. Click Done. 4. Select a Trigger area. 5. Go to Settings > Filters: To exclude small objects, set width and height.

  • Page 54: Specifications

    AXIS Q6315-LE PTZ Camera Specifications Specifications Product overview SD card slot Power button Control button Laser IR lens Unit holder (3x) Hook for safety wire Network connector Part number (P/N) and serial number (S/N) 10 Ground screw LED indicators Status LED...

  • Page 55: Buttons

    To comply with the IP66-rated design of the camera and maintain the IP66 protection, the supplied RJ45 Push-pull Connector (IP66) shall be used. Alternatively, use the RJ45 IP66-rated cable with premounted connector which is available from your Axis reseller. Do not remove the plastic network connector shield from the camera.

  • Page 56: Cleaning Recommendations

    AXIS Q6315-LE PTZ Camera Cleaning recommendations Cleaning recommendations If the device gets grease stains or becomes heavily soiled, you can clean it with mild, solvent-free soap or detergent. NOTICE TICE TICE Never use harsh detergent, for example gasoline, benzene, or acetone.

  • Page 57: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 58: Upgrade The Firmware

    3. Go to Maintenance > Firmware upgrade and click Upgrade. When the upgrade has finished, the product restarts automatically. You can use AXIS Device Manager to upgrade multiple devices at the same time. Find out more at axis.com/products/axis-device-manager. Technical issues, clues, and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support.
  • Page 59 IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).

  • Page 60: Performance Considerations

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Contact support Contact support at axis.com/support.
  • Page 61 User manual Ver. M7.3 AXIS Q6315-LE PTZ Camera Date: June 2023 © Axis Communications AB, 2020 - 2023 Part no. T10157540...
