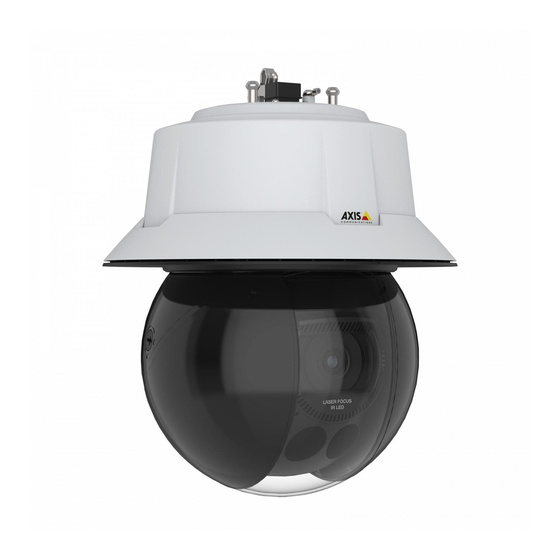

AXIS Q6315-LE PTZ Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q6315-LE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis Q6315-LE

Summary of Contents for Axis Q6315-LE

  • Page 1 AXIS Q6315-LE PTZ Camera User Manual...

  • Page 2: Table Of Contents

    AXIS Q6315-LE PTZ Camera Table of Contents Get started ..........

  • Page 3: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.
  • Page 4 Secure passwords Important Axis devices send the initially set password in clear text over the network. To protect your device after the first login, set up a secure and encrypted HTTPS connection and then change the password. The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they may be used in various types of installations.

  • Page 5: Webpage Overview

    AXIS Q6315-LE PTZ Camera Get started Webpage overview Live view control bar Live view Product name User information, color themes, and help Video control bar Settings toggle...
  • Page 6 AXIS Q6315-LE PTZ Camera Get started Settings tabs...

  • Page 7: Additional Settings

    AXIS Q6315-LE PTZ Camera Additional settings Additional settings Adjust the image This section includes instructions about how to configure your device. If you want to learn more about how certain features function, go to Learn more on page 18. Benefit from IR light in low-light conditions using night mode Your camera uses visible light to deliver color images during the day.
  • Page 8 4. Use the Tone mapping slider to adjust the amount of WDR. 5. If you still have problems, go to Exposure and adjust the Exposure zone to cover the area of interest. Find out more about WDR and how to use it at axis.com/web-articles/wdr. Verify the pixel resolution To verify that a defined part of the image contains enough pixels to, for example, recognize license plates, you can use the pixel counter.
  • Page 9 AXIS Q6315-LE PTZ Camera Additional settings To watch this video, go to the web version of this document. www.axis.com/products/online-manual/57873#t10106902 How to create a privacy mask 1. Go to Settings > Privacy mask. 2. Click New. 3. Adjust the size, color, and name of the privacy mask according to your needs.
  • Page 10 How to show text overlay when the camera detects motion Make sure that AXIS Video Motion Detection is running: 1. Go to Settings > Apps > AXIS Video Motion Detection. 2. Start the application if it is not already running.

  • Page 11: Adjust The Camera View (Ptz)

    AXIS Q6315-LE PTZ Camera Additional settings Add street names and compass direction to the image Note The street name and compass direction will be visible on all video streams and recordings. Activate the compass ring 1. Go to Settings > Apps.

  • Page 12: View And Record Video

    AXIS Q6315-LE PTZ Camera Additional settings 6. Click Done. 7. Click Add to add the preset positions that you want in your guard tour. 8. Click Done to exit the guard tour settings. 9. To schedule the guard tour, go to System > Events.

  • Page 13: Set Up Rules And Alerts

    AXIS Q6315-LE PTZ Camera Additional settings 4. Enter the name of the shared location on the host server. 5. Move the switch if the share requires a login, and enter username and password. 6. Click Connect. Record and watch video To record video you must first set up network storage, see Set up network storage on page 12, or have an SD card installed.
  • Page 14 1. Go to Settings > System > Events and add a rule. 2. Type a name for the rule. 3. In the list of conditions, under Application, select AXIS Video Motion Detection (VMD). 4. In the list of actions, under Recordings, select Record video while the rule is active.
  • Page 15 3. Create the zoomed-in preset position so that it covers the area in the image where you assume that the license plate will appear. Create a motion detection profile: 1. Go to Settings > Apps and open AXIS Video Motion Detection. 2. Create a profile that covers the entrance of the gate and then save the profile. Create a rule: 1.
  • Page 16 AXIS Q6315-LE PTZ Camera Additional settings 3. In the list of conditions, under Device status, select Shock detected. 4. Click + to add a second condition. 5. In the list of conditions, under Scheduled and recurring, select Scheduled event. 6. In the list of schedules, select After hours .

  • Page 17: Cleaning Recommendations

    AXIS Q6315-LE PTZ Camera Cleaning recommendations Cleaning recommendations If the device gets grease stains or becomes heavily soiled, you can clean it with mild, solvent-free soap or detergent. NOTICE TICE TICE Never use harsh detergent, for example gasoline, benzene, or acetone.

  • Page 18: Learn More

    Capture modes Capture mode defines the maximum resolution and maximum frame rate available in the Axis product. If using a capture mode with a smaller resolution than the maximum resolution, the angle of view is reduced. The capture mode also affects light sensitivity. A capture mode with a high maximum frame rate has reduced light sensitivity and vice versa.

  • Page 19: Overlays

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to the MPEG-4 standard.

  • Page 20: Applications

    Target bitrate Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications. To find the user manuals for Axis applications, go to axis.com.

  • Page 21: Security

    TPM module The TPM (Trusted Platform Module) is a component that provides cryptographic features to protect information from unauthorized access. It is always activated and there are no settings you can change. To learn more about TPM, go to axis.com/press-center/media-resources/white-papers.

  • Page 22: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 23: Upgrade The Firmware

    3. Go to Settings > System > Maintenance. Follow the instructions on the page. When the upgrade has finished, the product restarts automatically. Technical issues, clues and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support. Problems upgrading the firmware Firmware upgrade failure If the firmware upgrade fails, the device reloads the previous firmware.
  • Page 24 Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...

  • Page 25: Performance Considerations

    Heavy network utilization due to poor infrastructure affects the bandwidth. • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance. Contact support Contact support at axis.com/support.

  • Page 26: Specifications

    AXIS Q6315-LE PTZ Camera Specifications Specifications Product overview SD card slot Power button Control button Laser IR lens Unit holder (3x) Hook for safety wire Network connector Part number (P/N) and serial number (S/N) 10 Ground screw LED indicators Status LED...

  • Page 27: Buttons

    To comply with the IP66-rated design of the camera and maintain the IP66 protection, the supplied RJ45 Push-pull Connector (IP66) shall be used. Alternatively, use the RJ45 IP66-rated cable with premounted connector which is available from your Axis reseller. Do not remove the plastic network connector shield from the camera.
  • Page 28 User Manual Ver. M3.2 AXIS Q6315-LE PTZ Camera Date: May 2021 © Axis Communications AB, 2020 - 2021 Part No. T10157540...
