UniStream ® Built-in
Battery: Back-up, First Use, Installation, and Replacement
Back-up
In order to preserve back-up values for RTC and system data in the event of power off, the
battery must be connected.
First Use
The battery is protected by a removable cover
on the side of the controller.
The battery is supplied installed inside the
unit, with a plastic tab preventing contact
which must be removed by the user.
Battery Installation and Replacement
▪ Use proper precautions to prevent Electro-Static Discharge (ESD) while servicing
the battery.
Caution ▪ To preserve back-up values for RTC and system data during battery
replacement, the controller must be powered.
▪ Note that disconnecting the battery halts the preservation of back-up values
and causes them to be deleted.

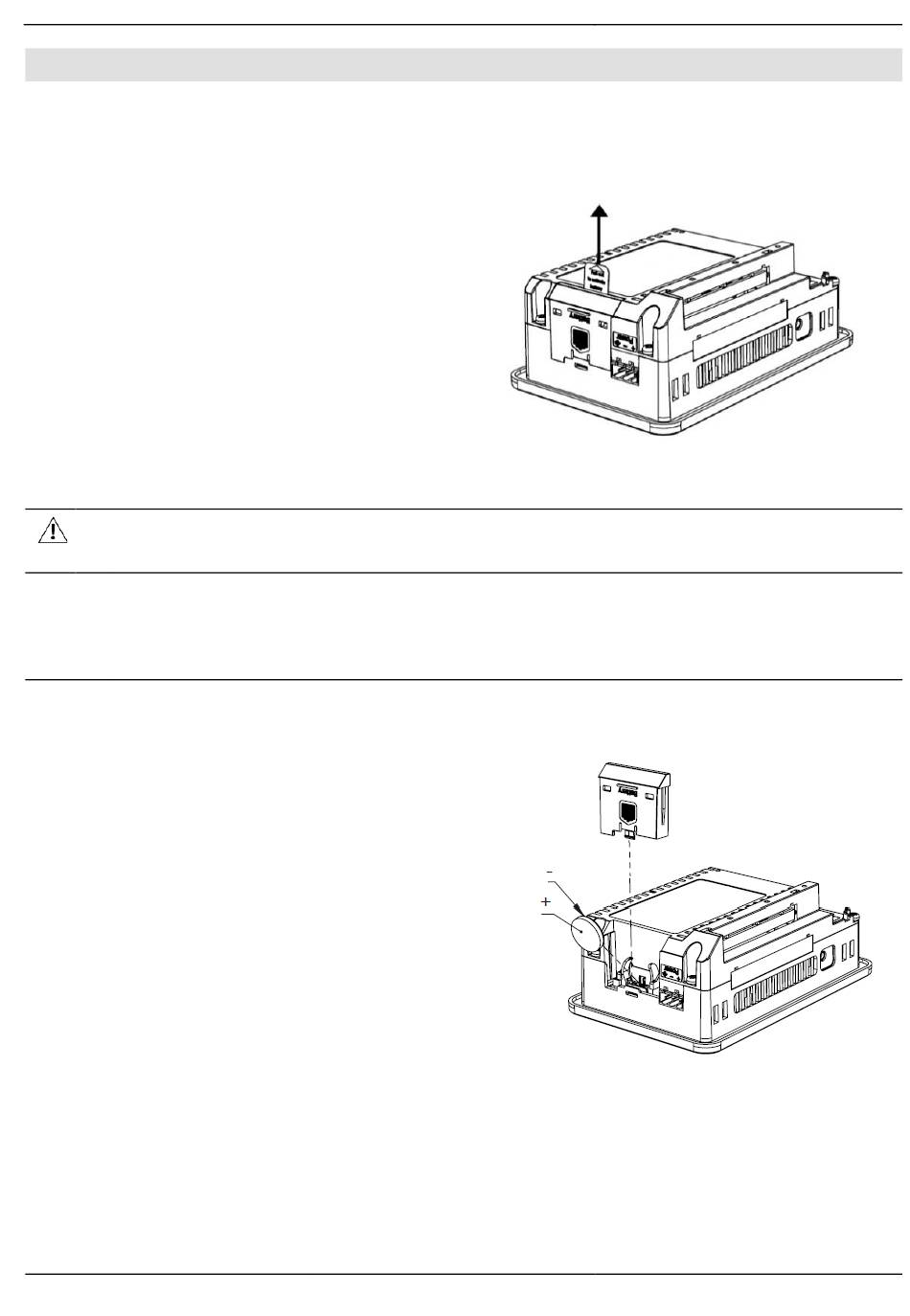

1. Remove the battery cover from the controller as shown in the accompanying figure:
- Press the tab on the module to disengage it.
- Slide it up to remove it.
2. If you are replacing the battery, remove the
battery from its slot on the side of the
controller.
3. Insert the battery, ensuring that the polarity
is aligned with the polarity marking as shown
in the accompanying figure.
4. Replace the battery cover.
5. Dispose of the used battery according to local
and national standards and regulations.
