Panel Mounting
▪ Mounting panel thickness must be less or equal to 5mm (0.2").
N
OTE
▪ Ensure that the space considerations are met.
1. Prepare a panel cut-out according to the dimensions as shown in the previous section.
2. Slide the controller into the cut-out, ensuring that the Panel Mounting Seal is in place
as shown below.

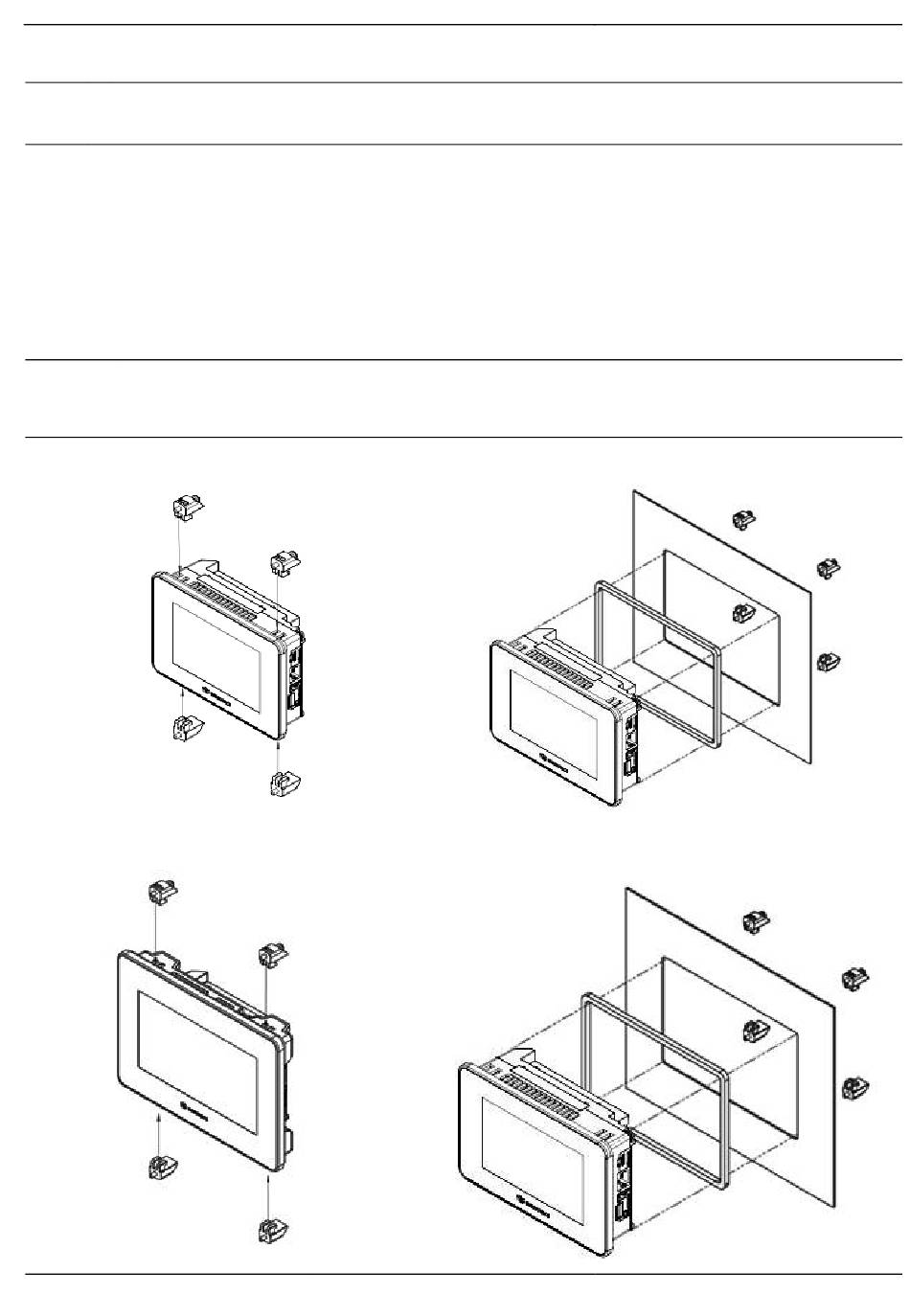

3. Push the mounting brackets into their slots on the sides of the panel as shown below.
4. Tighten the bracket screws against the panel. Hold the brackets securely against the
unit while tightening the screws. The torque required is 0.35 N·m (3.1 in-lb).
When properly mounted, the panel is squarely situated in the panel cut-out as shown
below.
▪ Do not apply torque exceeding 0.35 N·m (3.1 in-lb) of torque to tighten the
bracket screws. Using excessive force to tighten the screw can damage this
Caution
product.
