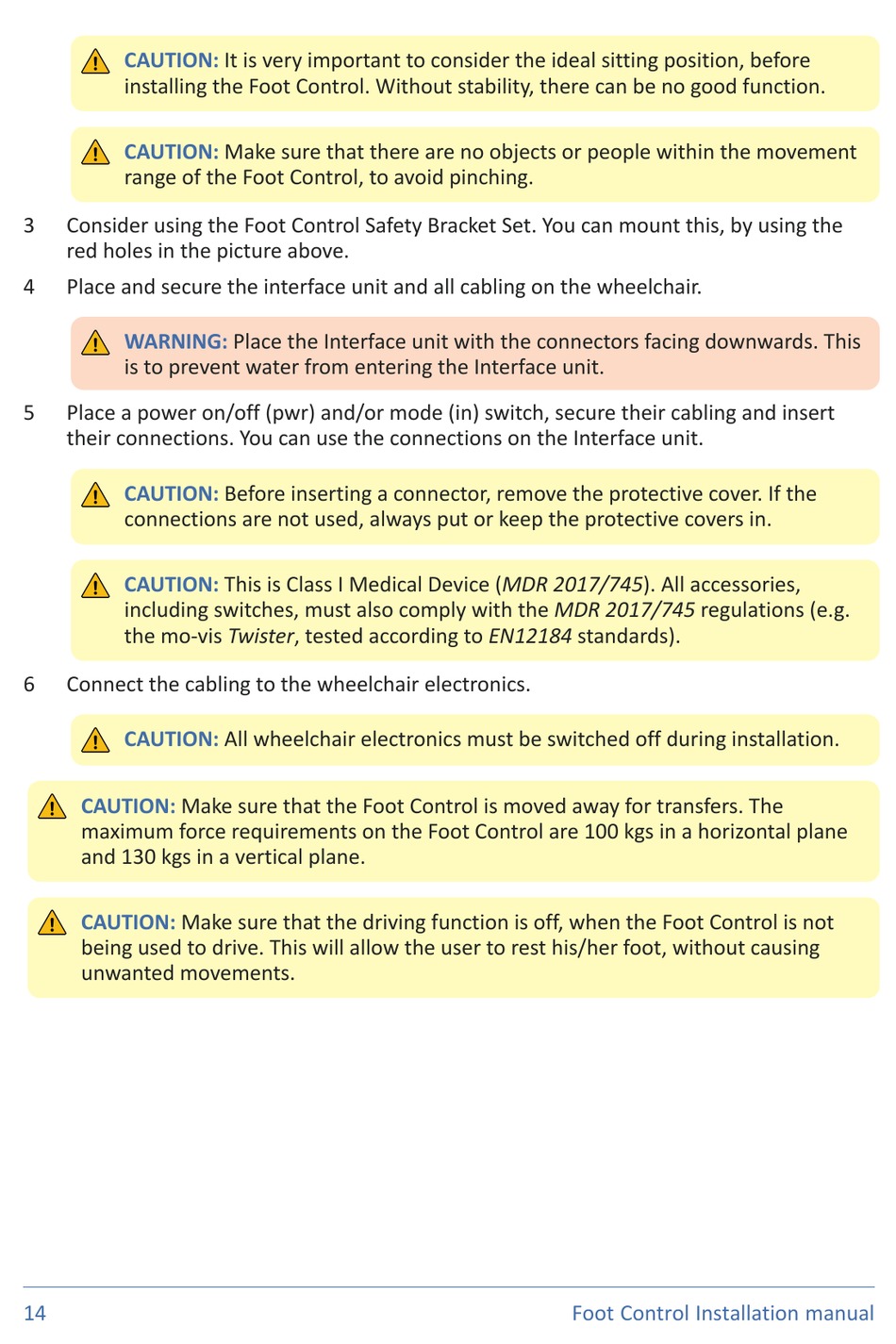

Mo-vis Foot Control Omni Installation Manual page 15

CAUTION:
installing the Foot Control. Without stability, there can be no good function.
CAUTION:
range of the Foot Control, to avoid pinching.
3 Consider using the Foot Control Safety Bracket Set. You can mount this, by using the
red holes in the picture above.
4 Place and secure the interface unit and all cabling on the wheelchair.
WARNING:
is to prevent water from entering the Interface unit.
5 Place a power on/off (pwr) and/or mode (in) switch, secure their cabling and insert
their connections. You can use the connections on the Interface unit.
CAUTION:
connections are not used, always put or keep the protective covers in.
CAUTION:
including switches, must also comply with the MDR 2017/745 regulations (e.g.
the mo-vis Twister, tested according to EN12184 standards).
6 Connect the cabling to the wheelchair electronics.
CAUTION:
CAUTION: Make sure that the Foot Control is moved away for transfers. The
maximum force requirements on the Foot Control are 100 kgs in a horizontal plane
and 130 kgs in a vertical plane.
CAUTION: Make sure that the driving function is off, when the Foot Control is not
being used to drive. This will allow the user to rest his/her foot, without causing
unwanted movements.
