Installation

1 Place the foot on the Foot Control and decide where you want to position the 4 pins.
Use an Allen key to fixate the pins at the desired position. We also advise you to use
the strap, so consider mounting the Foot Control Strap Mounting Plate as well.
NOTE:
The pivot point of the Foot Control is located more towards the ankle for
ergonomic reasons. You can adjust the pivot point, by sliding the pins more in/
out at the toes or the ankle.
CAUTION:
damage the unit.
2 Define the position of the Foot Control.

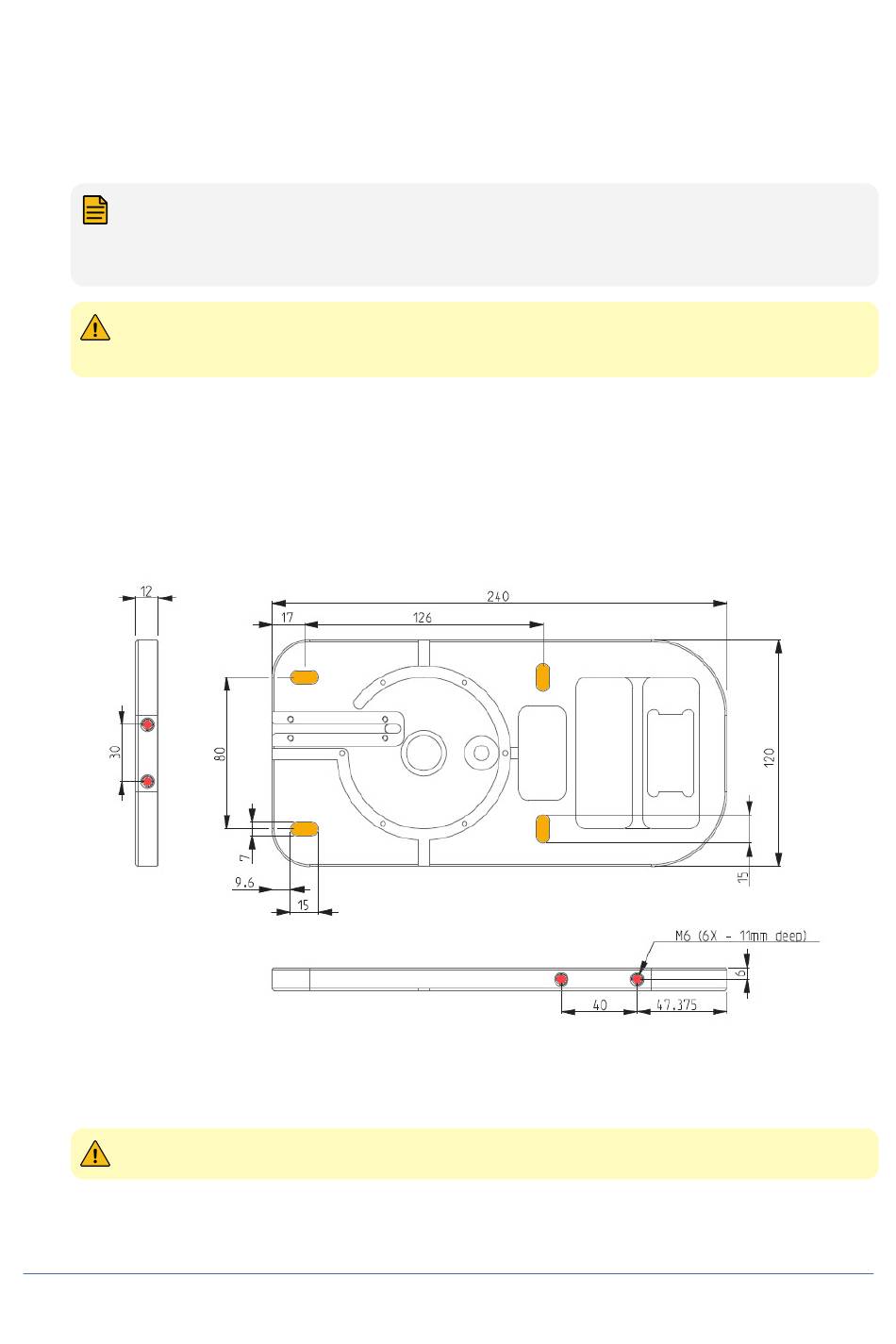

Will you mount the Foot Control on an existing foot plate or will you use a designated
bracket for the Foot Control? You can use the dedicated mounting holes if needed
(orange in picture below).
CAUTION:
Foot Control Installation manual
Tighten the screws firmly, but not excessively. Excessive force may
Mount the pedal on a rigid structure, to avoid fracture.
