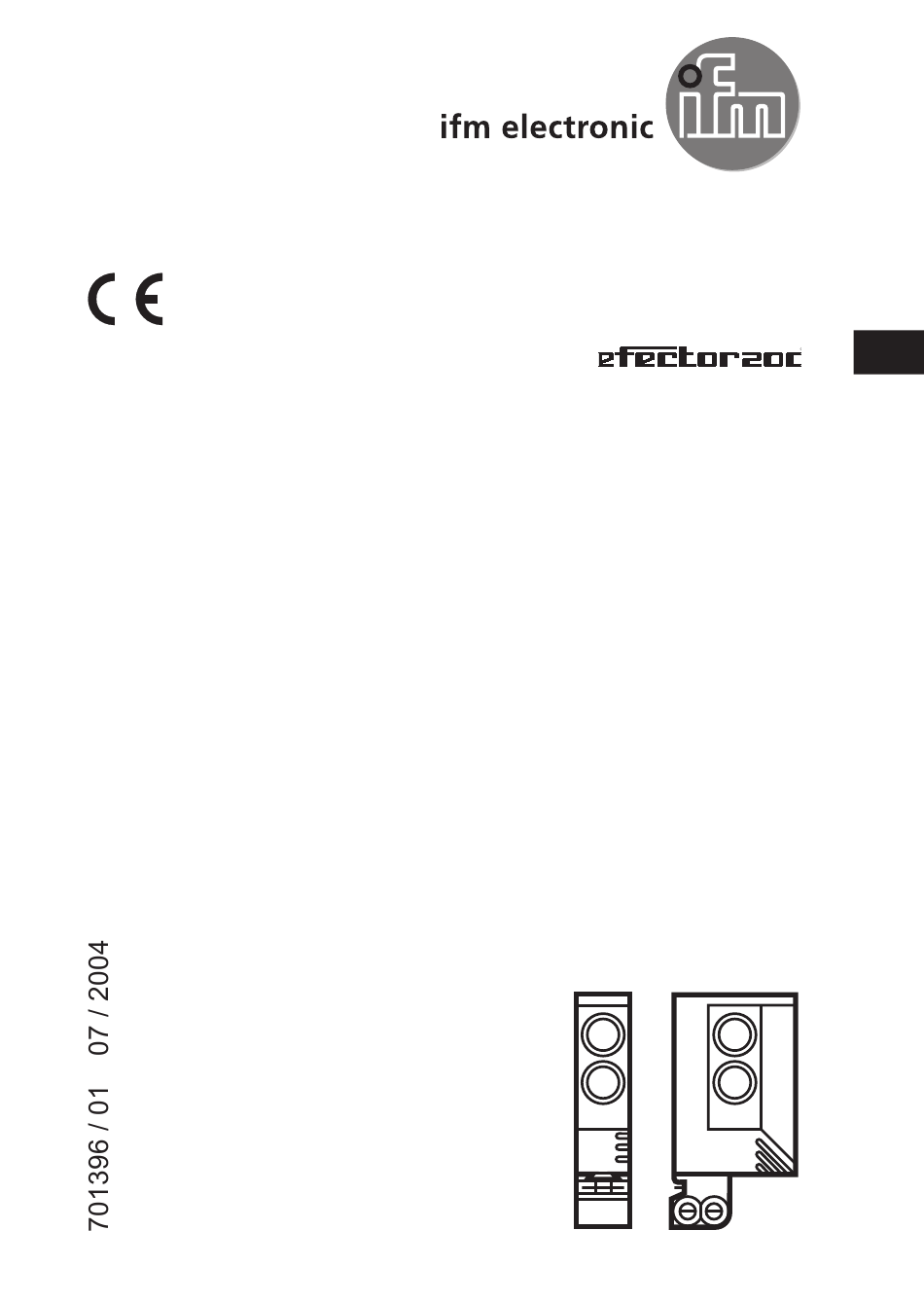

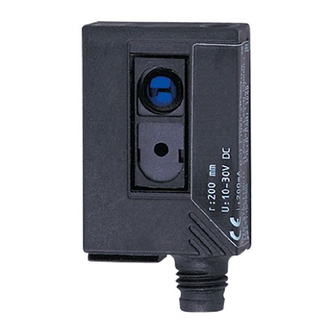

- Page 1 Operating instructions Diffuse reflection sensor OJ50xx...
-
Page 2: Table Of Contents
Contents 1 Preliminary note3 11 Symbols used 3 2 Function and features 3 3 Installation 3 31 Installation of the supplied mounting fixture 4 4 Electrical connection4 5 Commissioning 5 6 Settings5 61 Setting of the sensitivity with stationary objects* 5 62 Setting of the sensitivity with moving objects* 6 63 Setting of the maximum sensitivity* 8 64 Electronic lock 8... -
Page 3: Preliminary Note3
1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result → Cross-reference Important note Non-compliance can result in malfunctions or interference Information Supplementary note 2 Function and features The diffuse reflection sensor detects objects and materials without contact and indicates their presence by a switched signal Range : →... -
Page 4: Electrical Connection4
3.1 Installation of the supplied mounting fixture ► Secure the mounting fixture with the screws supplied, then slide the unit into the slot of the fixture until the spring clicks home ► To remove the unit press the spring down with a screwdriver and slide the unit out 4 Electrical connection The unit must be connected by a qualified electrician ►... -
Page 5: Commissioning 5
DC NPN teach Core colours: BN = brown, BU = blue, BK = black, WH = white Programming of the output function by push button or programming wire (see pa- ge 8). 5 Commissioning The diffuse reflection sensor is supplied ready to operate (plug and play) set at the max sensing range This is sufficient if the diffuse reflection sensor can operate with maximum excess gain (highest contrast). - Page 6 Set the sensitivity without object ► Press once > The yellow and green LEDs go out for approx 1 s, after approx 3 s the green LED is on > The unit is in the operating mode You can also proceed in reverse order: first setting without the object, then with the object * The sensitivity can also be set in exactly the same way using the programming wire (pin 2 / WH).
- Page 7 ► Allow objects to pass through the detection area during the measurement (about 1 s) (number of the objects between min. 8 Hz and max. switching frequency). ► Press once > The yellow and green LEDs go out for approx 1 s, then flash again alternately ►...
- Page 8 6.3 Setting of the maximum sensitivity* ► Go into the programming mode (→ step 1). ► Align the unit so that no light is reflected ► Press the setting button twice (→ steps 2 and 3). * The maximum sensitivity can also be set in exactly the same way using the programming wire (pin 2 / WH).
-
Page 9: Operation 9
7 Operation ► Check the safe functioning of the unit > Display by LEDs LED green is lit Unit is ready for operation LED yellow is lit Output is switched Error in object detection, eg maladjustment, LED red is lit soiling of the lenses Flash alternately, 2 Hz: output short-circuited.
