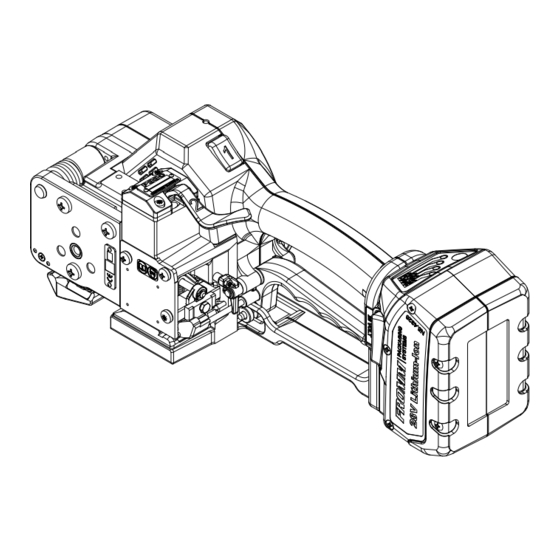

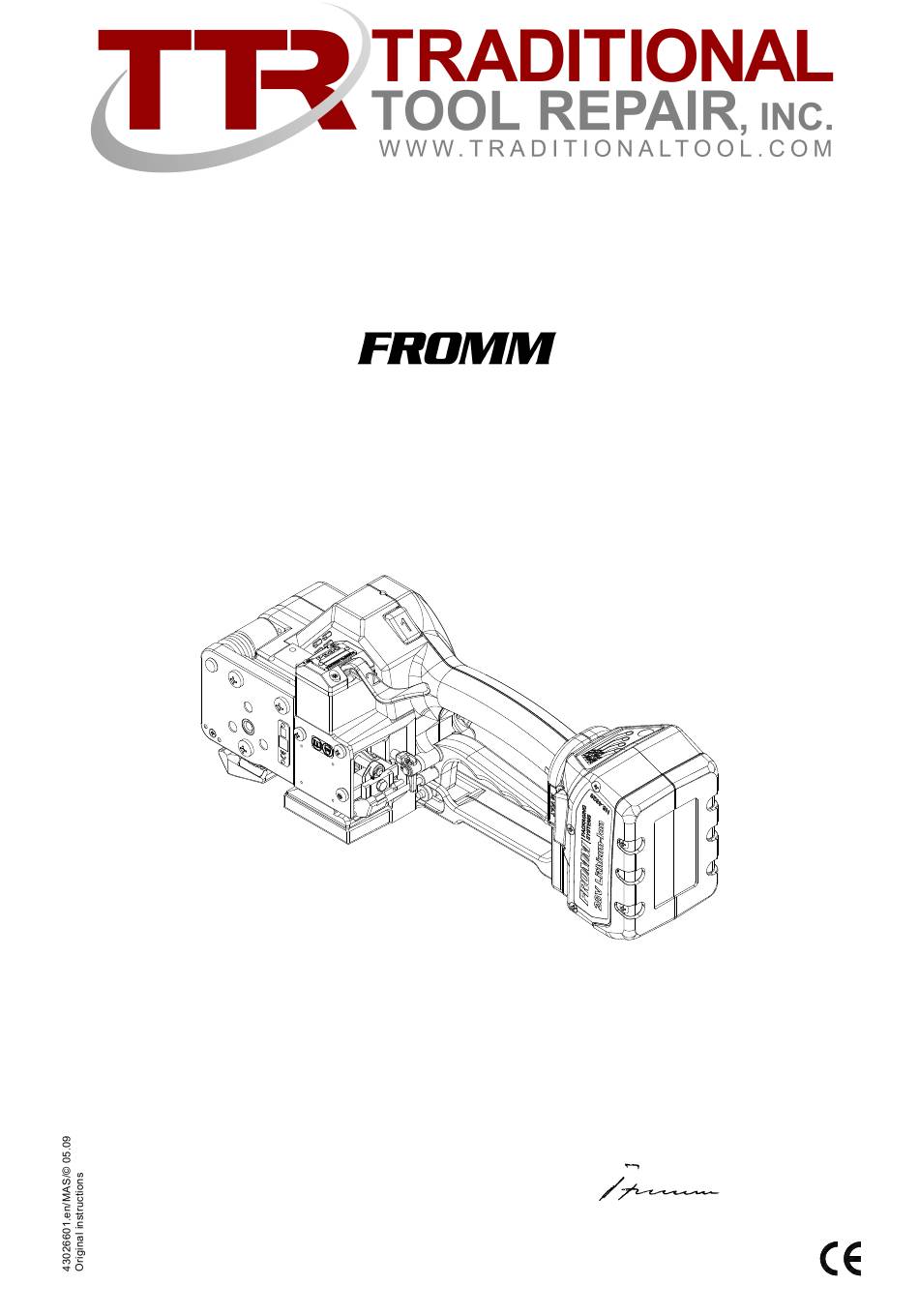

OPERATION MANUAL / SPARE PARTS LIST
BATTERY - POWERED
PLASTIC STRAPPING TOOL
MODEL P330
43.0266.01
For Parts & Service 1-877-862-6699
CE Declaration of conformity
We declare that the machine P330
is in conformity with the following standard or
standardised documents:
98/37/EC (until 28.12. 2009),
2006/42/EC (from 29.12. 2009 on),
2004/108/EC
Technical file at:
FROMM System GmbH
D-77855 Achern
27.08.2008
R.Fromm
Director
FROMM Holding AG
Hinterbergstrasse 26
CH - 6330 Cham
Advertisement
Table of Contents
Related Manuals for Fromm P330
Summary of Contents for Fromm P330
- Page 1 OPERATION MANUAL / SPARE PARTS LIST BATTERY - POWERED PLASTIC STRAPPING TOOL MODEL P330 43.0266.01 CE Declaration of conformity We declare that the machine P330 is in conformity with the following standard or standardised documents: 98/37/EC (until 28.12. 2009), 2006/42/EC (from 29.12. 2009 on), 2004/108/EC...
-
Page 2: Table Of Contents
INDEX PAGE GENERAL SAFETY RULES SAFETY RULES FOR STRAPPING TOOLS TECHNICAL DATA ACCESSORIES Battery ............7 Battery - chargers . -
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/ or serious injury. The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool. SAVE THESE INSTRUCTIONS. - Page 4 1.4 Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off.
-
Page 5: Safety Rules For Strapping Tools
Use only cutters designed for strap and never hammers, pliers, hacksaws, axes, etc. 2.6 Environment protection Do not dispose of used batteries in the household refuse, water or by burning them. FROMM distributors offer an environment friendly battery disposal service. P330mane.fm For Parts & Service 1-877-862-6699... -
Page 6: Technical Data
Description of the tool The tool model P330 has been designed to strap packages with plastic strapping. The plastic strapping is fed around the package manually or in combination with a strap feeder. The straps are inserted in the tool, automatically tensioned, sealed by friction welding and separated. -
Page 7: Accessories
ACCESSORIES Use only parts and accessories mentioned in the operating instruction. Using other parts or accessories can cause injuries to you and other persons. Battery The battery is not automatically supplied with the tool and has to be ordered separately under the following item number: Item-No. -
Page 8: Wearing Plate
P33.0122 N1.2221 Suspension When working stationary the P330 can be suspended at a spring loaded balancer by using a suspension bracket. For working in normal position a stiff suspension bracket with screws and washers can be ordered under item number P32.0112. -
Page 9: Turning Button Kit
For working in alternating positions a turn able suspension bracket with screws and washers can be ordered under item number P33.0120. P33.0120 N1.1904 N1.6503 P33.1301 P33.1302 P35.2069 P35.2073 N2.5623 Mobilux EP2 N1.5105 Turning button kit For a remaining adjustment of tension force and welding time. After exchanging of the turning buttons the adjustment can only be changed with the allen key (2mm) that comes with the kit. -
Page 10: Operating Elements
OPERATING ELEMENTS Tension button LED - Indication Sealing lever Green During tensioning the LED lights green. Green During welding the LED lights green. Yellow Cooling time is running, the tool must not be removed from the strap. Green Cooling time is finished, the tool can be removed from the strap. -
Page 11: Displaying Of The Status Of The Battery Charge
Displaying of the status of the battery charge By pressing a button the status of the battery can be shown in four steps. push here If four lamps are lighting the battery is full. If only one lamp is lighting shortly the battery has to be charged. -
Page 12: Feeding The Strap Around The Package
Feeding the strap around the package The strapping is fed around the package as illustrated. Warning! The plastic strap which will be welded must be free from oil, grease and other dirt. Dirty plastic straps can't be welded correct! Inserting the strap Pull up the handle lever firmly with your right hand. -
Page 13: Sealing Of The Joint
Sealing of the joint Press sealing lever down until it locks and let it go immediately. The plastic strap is welded and cut off from the rest of the strap. During the welding the LED lights green. After elapsing of the adjusted welding time (see 6.2.2) the cooling time begins (LED lights yellow). -
Page 14: Chart Of Types
CHART OF TYPES Item No. Model Strap width Strap thickness 43.0254 P330/19/0.80-1.19 19 mm / 3/4" 0.80-1.19 mm / .031 - .047" 43.0256 P330/19/1.20-1.53 19 mm / 3/4" 1.20-1.53 mm / .047 - .060" 43.0262 P330/25/0.40-0.79 25 mm / 1"... -
Page 15: Exchange Of Wearing Parts
EXCHANGE OF WEARING PARTS Remove always the battery from the tool before starting maintenance works. Exchange of tensioning wheel and grippers Disassembling • Unscrew end cover P33.0107 and remove it; • Remove the torsion spring N2.5842; • Remove the tensioning body P33.0106; •... -
Page 16: Exchange Of Cutter, Welding Stop Gripper And Welding Gripper
Exchange of cutter, welding stop gripper and welding gripper Disassembling • Unscrew cover P33.1242 and remove it • Unscrew end cover P33.0107 and remove it; • Remove the torsion spring N2.5842 and the tensioning body P33.0106; • Remove the tensioning wheel together with the bearing N31.1121 from the tool; •... -
Page 17: Adjustment Of The Coupler
The battery powered plastic strapping tool P330 is a high performance tool. We strongly recommend you to have it serviced by an authorized FROMM service shop after 12 months at the latest if used one shift per day. If used two or more shifts per day the tool has to be serviced after a shorter period of time. -
Page 18: Disposal
13 WARRANTY CONDITIONS AND LIABILITY FROMM Holding AG warrants all its strapping tools and machine heads during a period of 24 months from the date of installation at the end-user's sight by the distributor, however, not later than 30 months from the date of shipment to the distributor of FROMM Holding AG. - Page 19 43026601.z For Parts & Service 1-877-862-6699...
- Page 20 43026601.z For Parts & Service 1-877-862-6699...
- Page 21 43026601.z For Parts & Service 1-877-862-6699...
- Page 22 43026601.z For Parts & Service 1-877-862-6699...
- Page 23 15 SPARE PARTS LIST 43.0266.01 43.0266.01 P330/25.0/1.20-1.35/6.0 P330.0001.01 17.02.09 Item-No. in group Pcs. Description Dimension Field N1.1305 P33.0118 2 SCREW M4 X 7.8 N1.1553 P33.0119 1 HEXAGON SCREW M4 X 8 N1.1904 2 SCREW M5 X 20 N1.1909 2 FLAT HEAD SCREW M3 X 5 N1.1922...
- Page 24 43.0266.01 P330/25.0/1.20-1.35/6.0 P330.0001.01 17.02.09 Item-No. in group Pcs. Description Dimension Field N2.5178 2 PRESSURE SPRING 0.32 X 2.82 X 20.5/ 20.5 N2.5237 1 PRESSURE SPRING 0.8 X 4.8 X 25/18.5 N2.5296 P33.0118 1 PRESSURE SPRING 0.5 X 4 X 24/16.5 N2.5841...
- Page 25 43.0266.01 P330/25.0/1.20-1.35/6.0 P330.0001.01 17.02.09 Item-No. in group Pcs. Description Dimension Field P32.1411 P33.0118 1 LEVER P32.1412 P32.0140 1 INSERTATION PART [P32.1414] P33.0101 1 LEVER P32.1422 P32.1414 1 LEVER P32.2009 P33.1110 2 TURNING BUTTON P32.2012 P33.0118 1 GUIDE P32.2024 P33.0101 1 PRESSURE BUTTON P32.2030...
- Page 26 43.0266.01 P330/25.0/1.20-1.35/6.0 P330.0001.01 17.02.09 Item-No. in group Pcs. Description Dimension Field P33.1217 P33.0118 1 WELDING STOP GRIPPER P33.1218 P33.0118 1 WELDING GRIPPER P33.1219 P33.0118 1 BOLT P33.1220 P33.0118 2 DRIVER D10+ P33.1221 P33.0118 1 DRIVING PIN P33.1224 P33.0110 1 SPRING BOLT P33.1225...
