System Sensor S524 Installation And Maintenance Instructions page 4

the top mounting holes for ceiling speaker and speaker strobe products. (See
Figure 14.)
3. Threaded knockout holes are provided for the sides of the box for conduit
adapter. Knockout holes in the back of the box can be used for rear entry.
4. To remove the conduit knockout, place the blade of a flat-head screwdriver
along the outer edge and work your way around the knockout as you strike
the screwdriver. (See Figure 15A.)
NOTE: Use caution not to strike the knockout near the top edge of the
surface mount back box.
5. V500 and V700 raceway knockouts are also provided. Use V500 for low
profile applications and V700 for high profile applications.
6. To remove the knockout, turn pliers up. (See Figure 15B.)

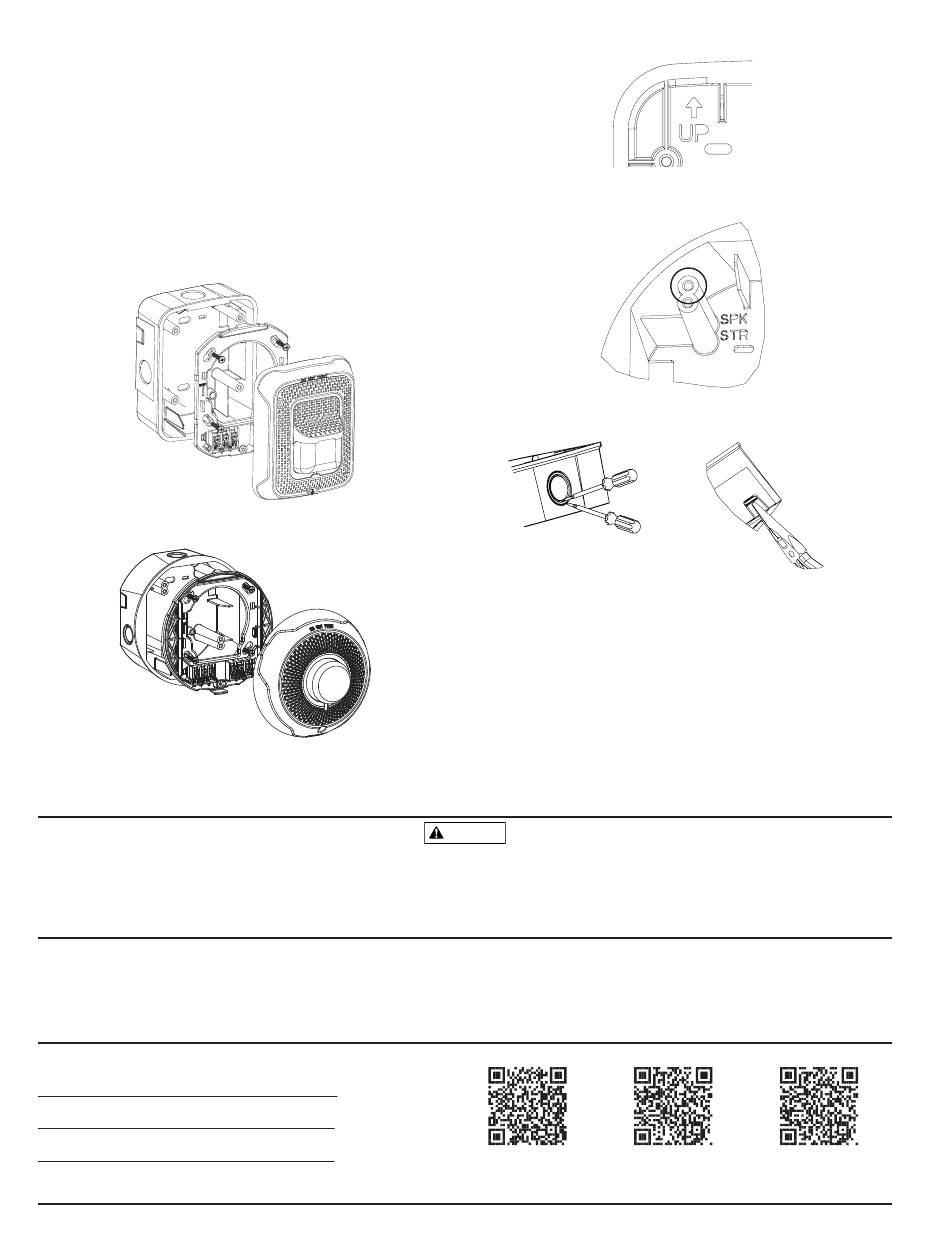

FIGURE 11. SURFACE MOUNTING ON WALL
FIGURE 12. SURFACE MOUNTING ON CEILING
Always make sure that the individual speakers are tested after installation per NFPA/
ULC regulations. The speakers may not be heard. The loudness of the speaker meets (or
exceeds) current Underwriters Laboratories' standards. However, the speaker may not
alert a sound sleeper or one who has recently used drugs or has been drinking alcoholic
System Sensor speakers have been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
SUPPLEMENTAL INFORMATION
For the latest Warranty information, please go to:
http://www.systemsensor.com/en-us/Documents/E56-4000.pdf
For Limitations of Fire Alarm Systems, please go to:
http://www.systemsensor.com/en-us/Documents/I56-1558.pdf
Speakers only: For the latest Important Assembly Information, please go to:
http://www.systemsensor.com/en-us/Documents/I56-6556.pdf
System Sensor® is a registered trademark of Honeywell International, Inc.
FIGURE 13. SURFACE MOUNT BACK BOX UP ARROW
FIGURE 14. CEILING INSTALLATION WITH A SURFACE MOUNT BACK
BOX : KEY HOLE PATTERN
FIGURE 15A AND 15B. KNOCKOUT AND WIRE MOLD REMOVAL FOR
SURFACE MOUNT BACK BOX
A0523-01
A0465-01
NOTE: Use caution not to strike the knockout near the top edge of the wall
version of the surface mount back box.
A0520-02
WARNING
THE LIMITATIONS OF SPEAKERS
beverages. The speaker may not be heard if it is placed on a different floor from the
person in hazard or if placed too far away to be heard over the ambient noise such as traf-
fic, air conditioners, machinery or music appliances that may prevent alert persons from
hearing the alarm. The speaker may not be heard by persons who are hearing impaired.
FCC STATEMENT
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
This Class B digital apparatus complies with Canadian ICES-003.
Warranty
4
Wire Mold Removal
½ inch
or ¾ inch
Limitations of Speakers Only:
Fire Alarm Systems Assembly Information
©2019 System Sensor. 5/21/2019
A0481-00
A0505-00
A0466-01
I56-9106-004
