INSTALLATION AND MAINTENANCE INSTRUCTIONS
Selectable Output Speaker Strobes –
Wall and Ceiling Mount
For use with the following models:
Wall Speaker/Strobes: SPSRLA, SPSWLA,SPSRLA-P, SPSWLA-P
Ceiling Speaker/Strobes: SPSCRLA, SPSCWLA, SPSCWLA-P
Add suffix "-E" for English, "-F" for French. "-P" are plain versions (no wording)
PRODUCT SPECIFICATIONS
Standard Operating Temperature:
Humidity Range:
Nominal Voltage (speakers):
Maximum Supervisory Voltage:
Speaker Frequency Range:
Power Settings:
Input terminal wire gauge:
Strobe Flash Rate:
Nominal Voltage (strobes):
Operating Voltage Range (includes fire alarm
panels with built in sync):
Operating Voltage with MDL3 Sync Module:
DIMENSIONS FOR PRODUCTS AND ACCESSORIES
WALL PRODUCTS

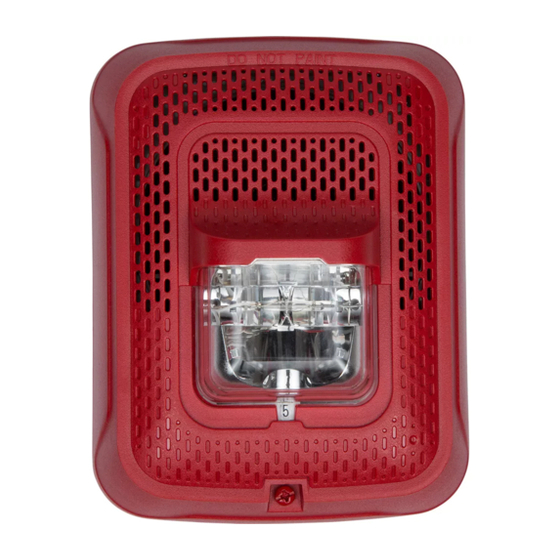

Wall Speaker Strobe
CEILING PRODUCTS
Ceiling Speaker Strobe
WALL SURFACE MOUNT BACK BOX
Speaker Strobe with SBBSPRL/WL Surface
Mount Back Box
CEILING SURFACE MOUNT BACK BOX
Speaker Strobe with SBBCRL/WL Surface
Mount Back Box
NOTICE: This manual shall be left with the owner/user of this equipment.
BEFORE INSTALLING
Please read the System Sensor Voice Evacuation Application Guide, which pro-
vides detailed information on speaker notification devices, wiring and special
applications. Copies of this manual are available from System Sensor. CAN/
ULC S524 guidelines should be observed. System Sensor also recommends
installing fire alarm speakers in compliance with CAN/ULC S524 and CEC.
Important: The notification appliance used must be tested and maintained
following CAN/ULC S536 requirements.
GENERAL DESCRIPTION
System Sensor series of notification appliances offer a wide range of audible
and visible devices for life safety notification. Our indoor speaker strobes
come with 7 field selectable candela setting. The strobe portion is designed
to be used in 12 VDC, 24VDC, or 24V FWR (full wave rectified) systems. The
speaker is designed to be used at either 25 or 70.7 volts, and operate at any
one of four input power levels. Our speaker strobes are suitable for dry and
damp environments. These products are electrically backwards compatible
with previous generation of System Sensor speaker strobes. With its low total
harmonic distortion, the System Sensor SPL series offers high fidelity sound
output.
FIRE ALARM SYSTEM CONSIDERATIONS
System Sensor also recommends installing fire alarm speakers in compliance
with CAN/ULC S524 and CEC.
32°F to 120°F (0°C to 49°C)
10 to 93% Non-condensing
25 Volts or 70.7 Volts
50 VDC
400 – 4000 Hz
¼, ½, 1, 2 Watts
12 to 18 AWG
1 flash per second
Regulated 12VDC, regulated 24VDC or FWR
8 to 17.5V (12V nominal) or 16 to 33V (24V nominal)
8.5 to 17.5V (12V nominal) or 16.5 to 33V (24V nominal)
Length Width
6.5" (165 mm) 5.00" (127 mm)
Length Width
6.8" (173 mm) N/A
Length Width
6.62" (168mm) 5.12" (130 mm)
Diameter
6.92" (176 mm)
SYSTEM DESIGN
The system designer must make sure that the total current drawn by the de-
vices on the loop does not exceed the current capability of the panel supply,
and that the last device on the circuit is operated within its rated voltage. The
current draw information for making these calculations can be found in the
tables within this manual. For convenience and accuracy, use the voltage drop
calculator on the System Sensor website (www.systemsensor.com).
When calculating the voltage for the last device, it is necessary to consider
the voltage drop due to the resistance of the wire. The thicker the wire, the
smaller the voltage drop. Note that if Class A wiring is installed, the wire
length may be up to twice as long as it would be circuits that are not fault
tolerant.The total number of strobes on a single NAC must not exceed 69 for
24 volt applications.
AVAILABLE CANDELA SETTINGS
System Sensor offers a wide range of candela settings for your life safety
needs. In order to select your candela output, adjust the slide switch on the
rear of the product to the desired candela setting on the selector switch. (See
Figure 1.)
The candela setting can also be verified by looking into the small window
on the front of the unit. See Tables 1 and 2 for candela settings for wall and
ceiling products. All products meet the light output profiles specified in the
appropriate UL Standards. (See Figures 2–4.)
1
3333 Unity Drive, Mississauga, ON L5L 3S6
MOUNTING BOX OPTIONS
Depth
2.30" (58.4 mm)
4" x 4" x 2
(wall), SBBCRL/WL (ceiling)
Depth
2.87" (73mm)
Depth
2.30' (58.4mm)
Depth
5.37" (116mm)
800/736-7672, FAX: 905-812-0771
www.systemsensor.ca
SPEAKER STROBES
/ " or deeper, SBBSPRL/WL
1
8
I56-9106-004
5/21/2019
