Summary of Contents for DAPAudio CS-66

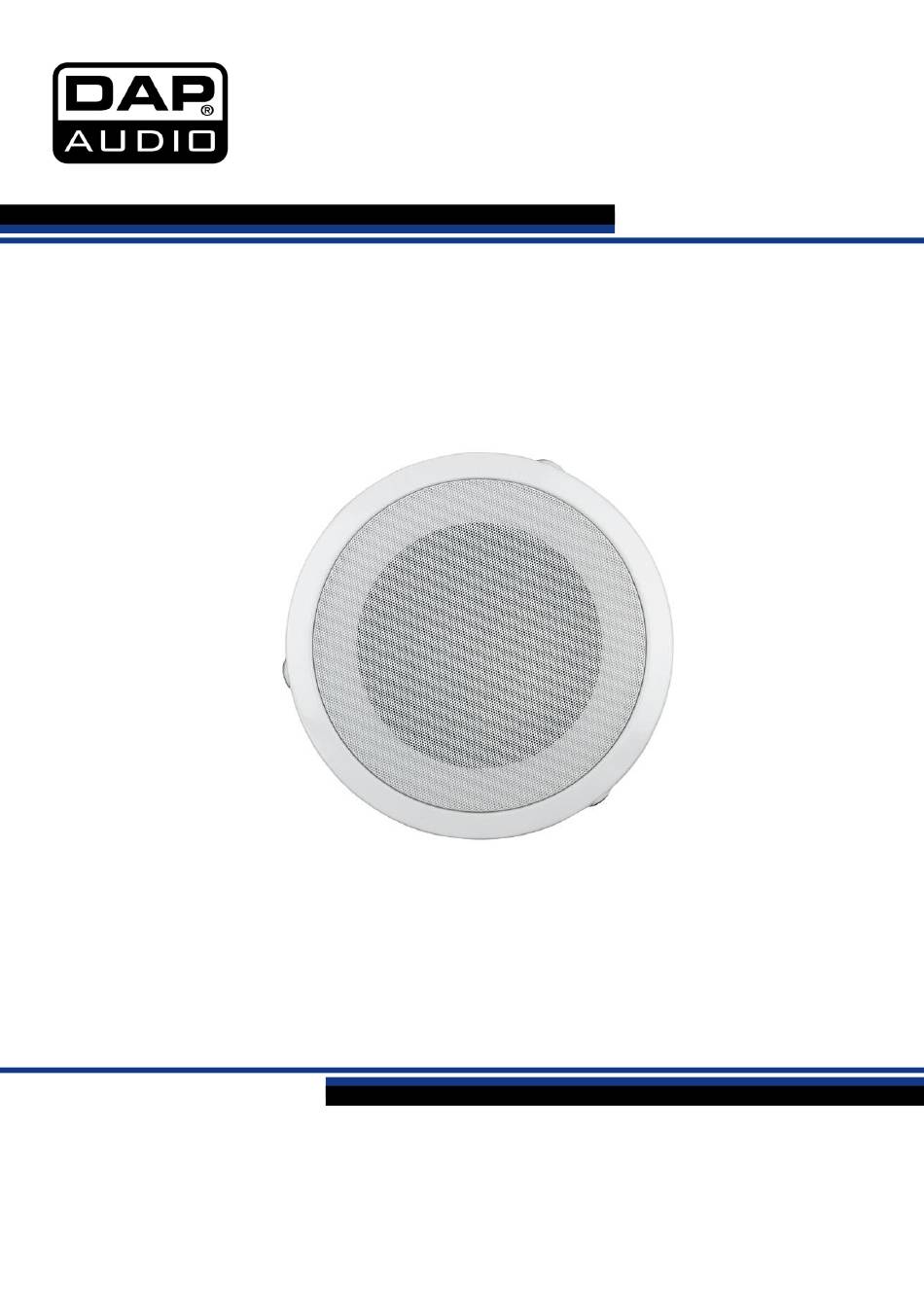

- Page 1 MANUAL ENGLISH CS-66 Ordercode: D6572 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 CS-66 Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Installation ................................... 5 Troubleshooting ................................. 5 Product Specification ............................... 6 Dimensions ..................................6 Ordercode: D6572...

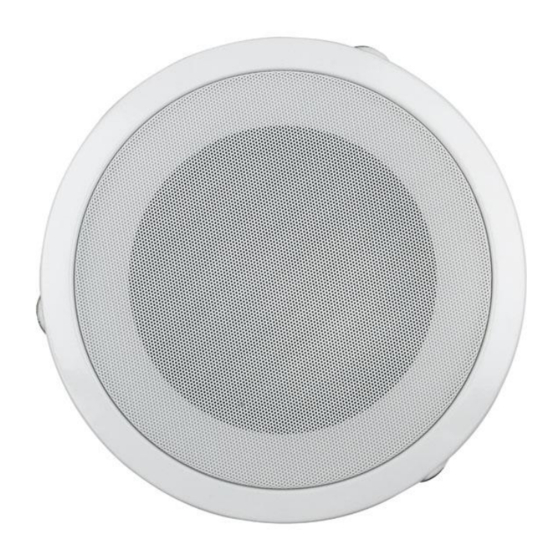

- Page 3 Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP Audio CS-66 6W 6" Ceiling Speaker • Template for Ceiling mounting)
- Page 4 Keep this manual for future reference. Clean only with dry cloth. When making the hole in your ceiling to mount the CS-66, make sure there is sufficient clearance behind the ceiling (no obstructions like A/C channels, power lines etc). ...
- Page 5 CS-66 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
- Page 6 CS-66 Installation Troubleshooting No Sound Always check to see if all of the cables and cords are connected. Always turn off power to the area before checking the wires to prevent electrical shock. If everything checks out and there is still no sound, revisit the manufacturer’s instructions to make sure they were followed during installation.
- Page 7 CS-66 Product Specification Rated Power: Line Voltage: 100V Impedance: 8Ω Speaker size: 6 inch Frequency response: 110-15kHz Sensitivity: 90dB Material: Iron Colour: White IP rating: IP-40 Mounting Hole: ø220mm Dimensions (LxWxH): 245 x 245 x 75mm Weight: Dimensions Design and product specifications are subject to change without prior notice.
- Page 8 ©2015 DAP Audio...
