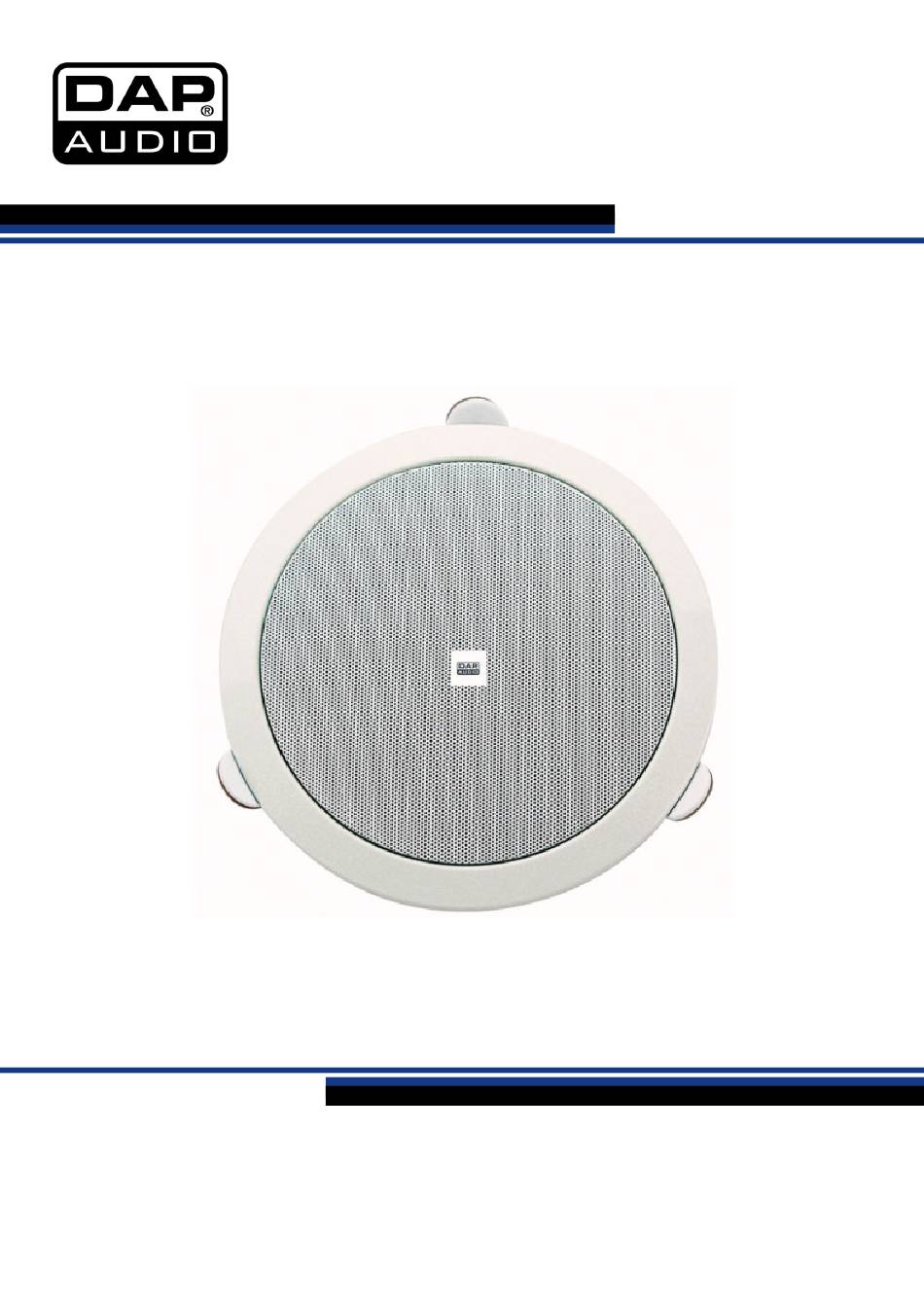

- Page 1 MANUAL ENGLISH CST-6520 Ordercode: D6591 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
CST-6520 Table of contents Warning ....................................2 Unpacking Instructions ..............................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Installation ................................... 5 Troubleshooting ................................. 6 Product Specification ............................... 7 Dimensions ..................................7 Notes ....................................8... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: DAP Audio CST-6520 20W 6,5" Ceiling Speaker •... -
Page 4: Operating Determinations
• Clean only with dry cloth. • When making the hole in your ceiling to mount the CST-6520, make sure there is sufficient clearance • behind the ceiling (no obstructions like A/C channels, power lines etc). Take care of your speaker wires, they should be free of damage. Damaged speaker wires might •... -
Page 5: Return Procedure
CST-6520 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 6: Installation
CST-6520 Installation 01) Drill a hole in the ceiling, using the template from the box. Fig. 01 02) Connect the power supply to the speaker. Choose the required input voltage and output power. Fig. 02 03) Extend the clamps and fit the speaker into the hole on the ceiling. -
Page 7: Troubleshooting
CST-6520 Troubleshooting No Sound Always check if all the cables and cords are connected. Always turn off power to the area before checking the wires, to prevent electric shock. If everything works properly and there is still no sound, revisit the manufacturer’s instructions to make sure they were followed during installation. -
Page 8: Product Specification
CST-6520 Product Specification Power consumption: Line voltage: 100W Power taps: 5/10/20W Speaker size: 6,5 inch Frequency response: 95-20 kHz Sensitivity: 92 dB (1W,1m)(100 Hz - 10 kHz, pink noise) 79 dB (1W, 4m)(100 Hz - 10 kHz, pink noise) Max. sound level:... -
Page 9: Notes
CST-6520 Notes Ordercode: D6591... - Page 10 CST-6520 Ordercode: D6591...
- Page 11 CST-6520 Ordercode: D6591...
- Page 12 ©2015 DAP Audio...
