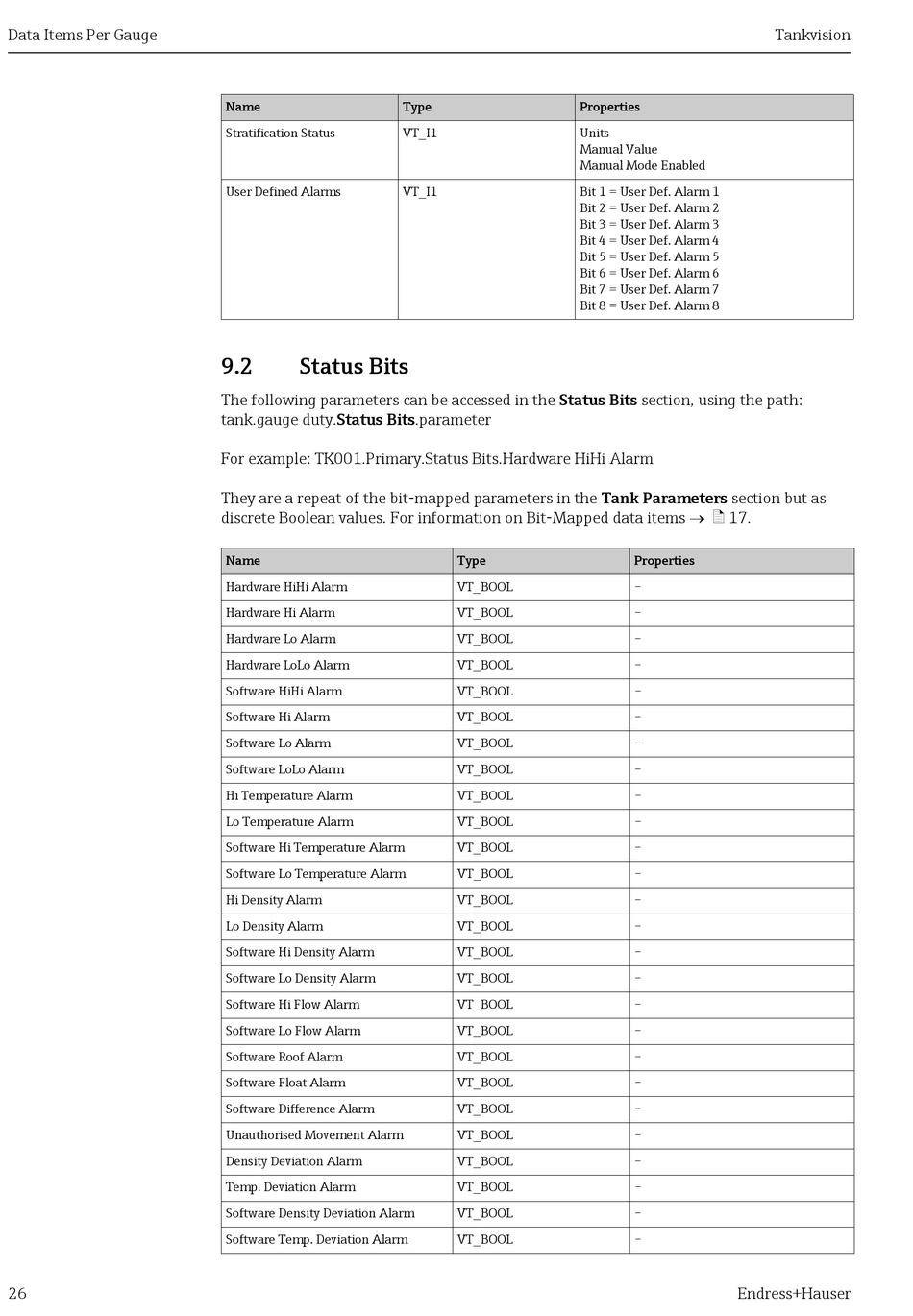

Data Items Per Gauge
26
Name
Stratification Status
User Defined Alarms
9.2

Status Bits

The following parameters can be accessed in the Status Bits section, using the path:
tank.gauge duty.Status Bits.parameter
For example: TK001.Primary.Status Bits.Hardware HiHi Alarm
They are a repeat of the bit-mapped parameters in the Tank Parameters section but as
discrete Boolean values. For information on Bit-Mapped data items → ä 17.
Name
Hardware HiHi Alarm
Hardware Hi Alarm
Hardware Lo Alarm
Hardware LoLo Alarm
Software HiHi Alarm
Software Hi Alarm
Software Lo Alarm
Software LoLo Alarm
Hi Temperature Alarm
Lo Temperature Alarm
Software Hi Temperature Alarm
Software Lo Temperature Alarm
Hi Density Alarm
Lo Density Alarm
Software Hi Density Alarm
Software Lo Density Alarm
Software Hi Flow Alarm
Software Lo Flow Alarm
Software Roof Alarm
Software Float Alarm
Software Difference Alarm
Unauthorised Movement Alarm
Density Deviation Alarm
Temp. Deviation Alarm
Software Density Deviation Alarm
Software Temp. Deviation Alarm
Type
VT_I1
VT_I1
Type
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
VT_BOOL
Properties
Units
Manual Value
Manual Mode Enabled
Bit 1 = User Def. Alarm 1
Bit 2 = User Def. Alarm 2
Bit 3 = User Def. Alarm 3
Bit 4 = User Def. Alarm 4
Bit 5 = User Def. Alarm 5
Bit 6 = User Def. Alarm 6
Bit 7 = User Def. Alarm 7
Bit 8 = User Def. Alarm 8
Properties
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
