- Page 1 Products Solutions Services BA01287G/00/EN/04.18 71421613 2019-02-13 Valid as of software version: 3.4.0 and 4.4.0 Operating Instructions Tankvision Multi Scan NXA83B Installation and Maintenance manual Weights and Measures Additions...
- Page 2 Tankvision Multi Scan NXA83B Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
-
Page 3: Table Of Contents
Tankvision Multi Scan NXA83B Table of Contents Document information ....4 Target audience for this manual ....4 Version history . -
Page 4: Document Information
Document information Tankvision Multi Scan NXA83B Document information Target audience for this manual This manual is giving detailed information on the system capabilities and architecture. It supports project and sales engineers in designing the system architecture during acquisition and execution phase. Furthermore during operation time of the system all servicing personnel in need of detailed knowledge about the system capabilites. -
Page 5: Documentation
Tankvision Multi Scan NXA83B Document information Symbols for certain types of information Symbol Meaning Indicates additional information. A0011193 Reference to page Refers to the corresponding page number. A0011195 ... Series of steps Result of a sequence of actions A0018373 Symbols in graphics... -
Page 6: Basic Safety Instructions
IT security measures in line with operators' security standards and designed to provide additional protection for the device and device data transfer must be implemented by the operators themselves. Endress+Hauser can be contacted to provide support in performing this task. Designated use 2.3.1... -
Page 7: Workplace Safety
The device complies with the applicable standards and regulations as listed in the EC declaration of conformity and thus complies with the statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark. -
Page 8: Overview

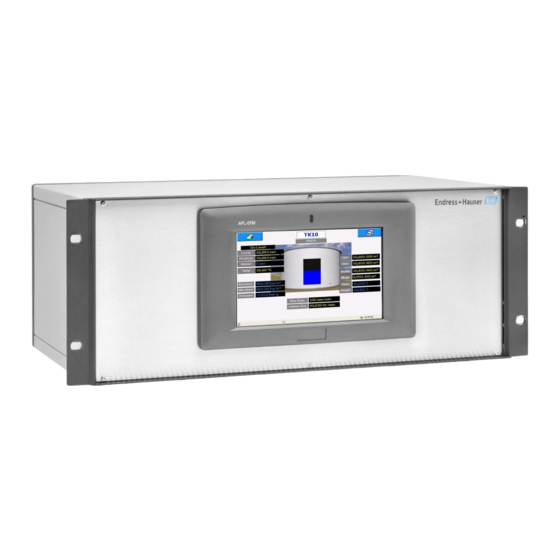

This manual describes the additional features of the Weights and Measures version of the Multi Scan NXA83B, designated as Tankvision Multi Scan NXA83B W&M. The standard features of the Multi Scan NXA83B are described in the Tankvision Multi Scan NXA83B I&M manual. - Page 9 Tankvision Multi Scan NXA83B Overview NXA83_WallMount_Title Wall Mount NXA83_RackMount_Title 19 in Rack Mount Endress+Hauser...
-
Page 10: W&M Functionality
W&M Functionality Tankvision Multi Scan NXA83B W&M Functionality Name Plate Tankvision Order code: Ext. Order code: Ser.-No.: 250002972-- nameplate Address of manufacturer Device name Order code Extended order code (Ext. ord. cd.) Serial number (Ser. no.) Degree of protection Barcode... - Page 11 Tankvision Multi Scan NXA83B W&M Functionality NXA83_WallMount_Removing-Cover_Seals Loosen the four screws indicated below and remove the cover. NXA83_WallMount_Removing-Cover_Screws Remove the lock device (a 10 way IDC connector) plugged into connector CN14 on the LX2 mother board. Endress+Hauser...
- Page 12 W&M Functionality Tankvision Multi Scan NXA83B NXA83_Wall-Mount_CN14 W&M Lock, CN14 Reboot the system. The system will remain locked for approximately 1 minute following the reboot. After this time all of the standard configuration activities may be carried out, such as downloading a modified database from a configurator PC.
-
Page 13: Locking The System
Tankvision Multi Scan NXA83B W&M Functionality Locking the system The procedure for locking the system is the reverse of unlocking: Remove the cover. Insert the Lock device into connector CN14 on the LX2 mother board. Replace the cover and tighten the four screws. -
Page 14: Rear Access Panel
W&M Functionality Tankvision Multi Scan NXA83B Rear access panel There is a removable panel on the underside of the Multi Scan NXA83B, which is used to gain access to the underside of the LX2 motherboard so that the internal flash memory drive may be replaced. -
Page 15: W&M Display Features
Tankvision Multi Scan NXA83B W&M Functionality W&M display features 4.5.1 Data Status tags The status of all data fields shown in the tankgauging screens will be indicated by a set of characters displayed after the value (or replacing the value in the case of data failure). These... -
Page 16: Printing
W&M Functionality Tankvision Multi Scan NXA83B 4.5.2 Lock Status display If the system is unlocked a message will be displayed on the status bar at the bottom of the screen. NXA83_Grid-View_WM-Lock-Unsealed Indicator: W&M Lock unsealed The system should not be considered W&M approved if this message is displayed. -
Page 17: W&M Calibration
Tankvision Multi Scan NXA83B W&M Functionality W&M Calibration Weights and Measures (W&M) approved Multi Scan NXA83B are required to display the approval status of all parameters displayed on screen. Data for tanks that are not approved will be displayed with a ’#’ symbol. -
Page 18: Index
Tankvision Multi Scan NXA83B Index Data Status tags ....... . . 15 Designated use. - Page 19 Tankvision Multi Scan NXA83B Endress+Hauser...
- Page 20 71421613 www.addresses.endress.com...
